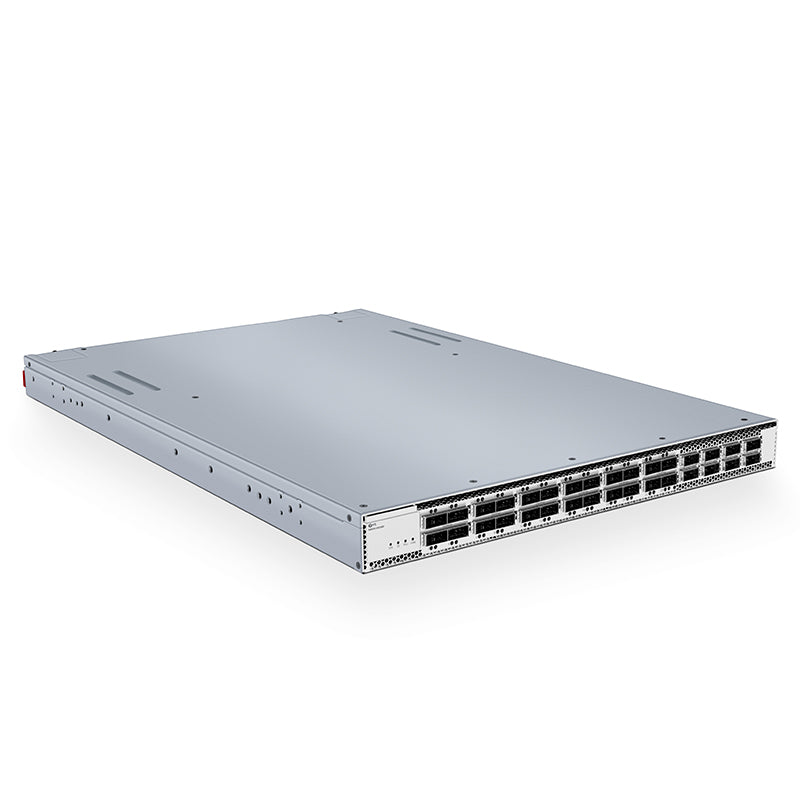

FS-N8550-24CD8D, Bare Metal Switch, 24-Port Ethernet Data Center, 24 x 200Gb FS-QSFP56, with 8 x 400Gb FS-QSFP-DD Uplinks, Broadcom Trident 4 Chip

The FS-N8550-24CD8D switch is a high-radix, high-density, 1U platform suitable for today's data centers, and supports 400GbE, 200GbE, 100GbE and 50GbE connections.

The switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System software, including the open source SONiC and commercial PicOS® offerings.

Specifications

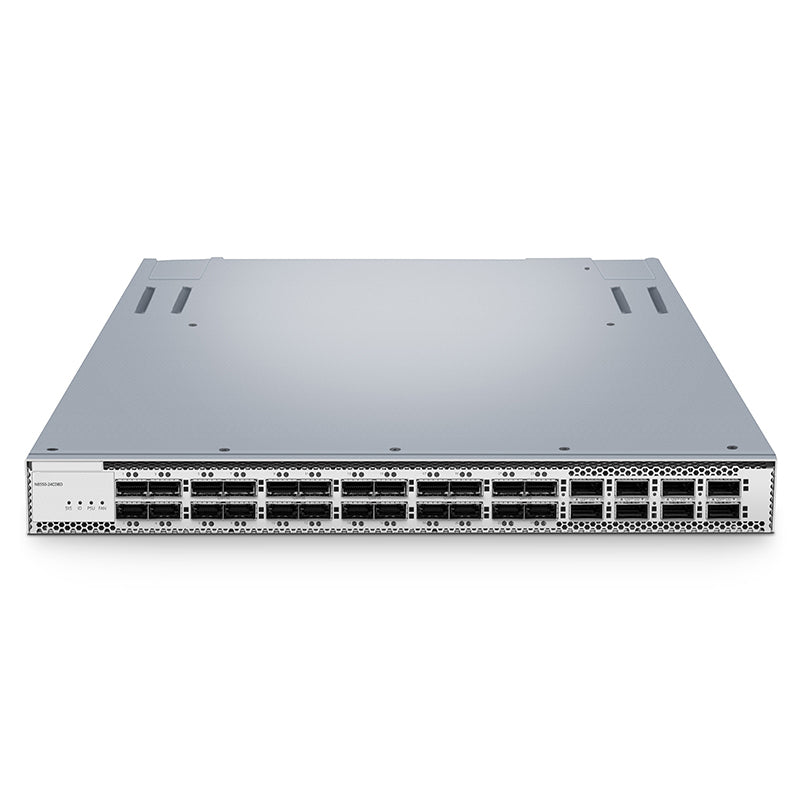

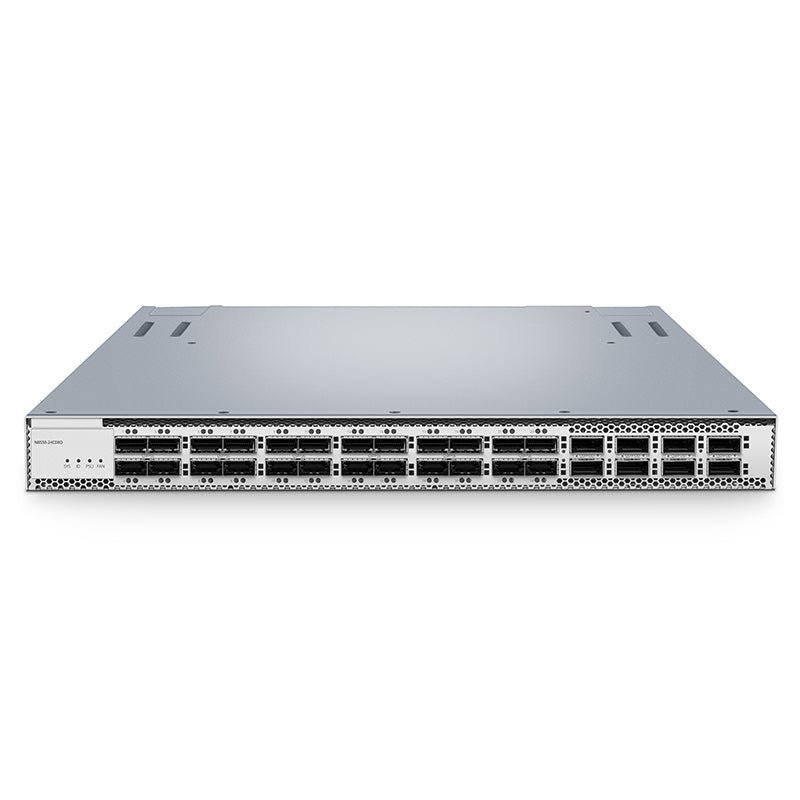

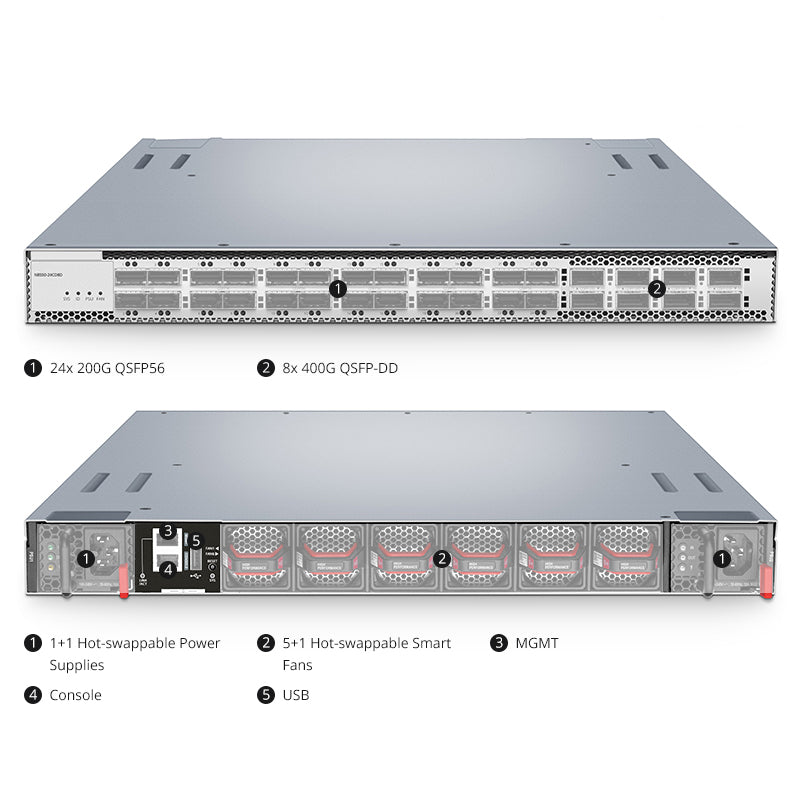

• Ports: 24x 200G QSFP56, 8x 400G QSFP-DD

• Switching Capacity: 8.0 Tbps

• Switch Chip: BCM56780 Trident 4

• Forwarding Rate: 5,350 Mpps

• CPU: Intel® Xeon® Processor D-1627 4-core 2.9GHz

• Jumbo Frame: 9K

• Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC

• DDR4: 16GB

• Fans: 6 (5+1 Redundancy) Hot-swappable, Front-to-Back

• Flash Memory: 240GB

• Dimensions (HxWxD): 1.73"x 17.32"x 25.98"(44x 440x 660mm)

• Input Voltage: 100-240 VAC, 50-60Hz

• Weight: 33.06 lbs (15kg)

• Max. Power Consumption: 768W

• Operating Temperature: 0°C to 40 °C (32°F to 104°F)

• Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Product Highlights

• Broadcom BCM56780 Trident 4-X9 Chip, 8 Tbps Throughput

• 24x 200GbE QSFP56, Can Use Breakout for 2x 100GbE or 4x 50GbE

• 1+1 Hot-swappable Power Supplies, 5+1 Smart Fans

• Support PicOS® and SONiC Network Operating System

• AmpCon-DC Management Platform Provides Full Day 0 to Day 2+ Capabilities

Connectivity Solutions

High-speed and Flexible Interface Enhance Network Performance
200G for servers, 400G uplinks for spine switches, which provide high-speed, low-latency networks, with the low-power design optimizing energy usage and reducing heat dissipation.

The FS-BCM56780 Trident 4 Enables High Network Utilization
The FS-BCM56780 features a wide variety of load balancing and congestion management technologies, delivering compiler-driven, user-programmable forwarding and instrumentation capabilities while maintaining minimum power, latency and board footprint.

Hardware-level Redundancy Ensures Network Stability
Hot-swappable redundant power supplies and fans ensure high reliability and intelligent, efficient heat dissipation to support the development of low-carbon data centers.

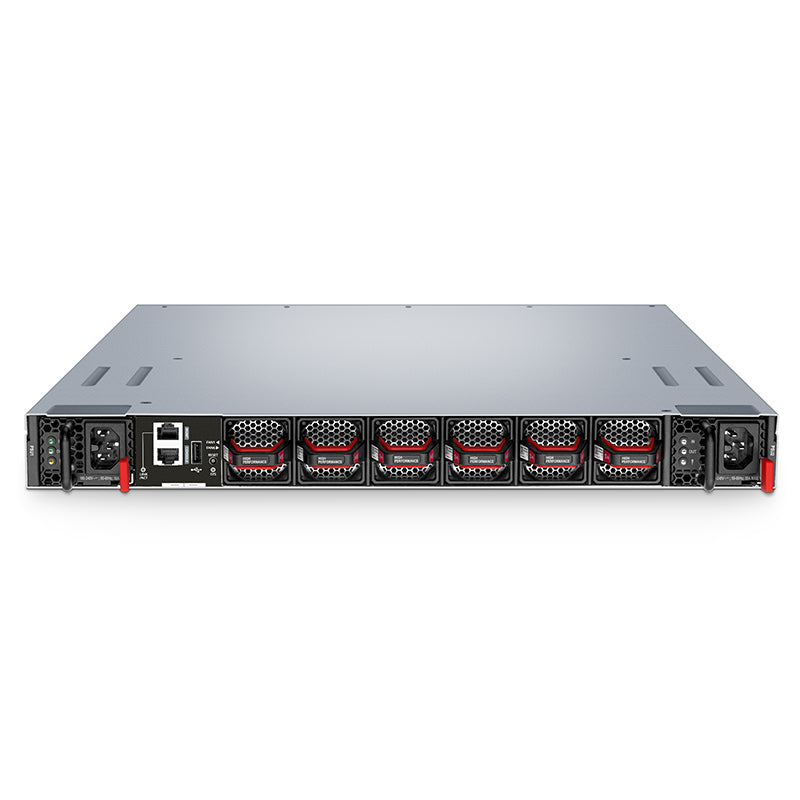

1+1 Dual AC PSUs
PSUs can be removed/replaced without shutting down the system

5+1 Hot-swap Fans
Variable-speed fans for superior cooling, noise and power reduction

PicOS® Ensures Network Performance and Streamlines Management
The switch provides comprehensive L2/L3 capabilities when equipped with PicOS® software while enhancing availability, security, and management, thereby improving network performance and simplifying operations.

AmpCon-DC Automated Configuration and Unified Management
After being equipped with PicOS® software, the switch can be managed by the AmpCon-DC management platform to provision, monitor, proactively troubleshoot, and maintain high-performance networking, enabling higher resource utilization and lower OPEX.
