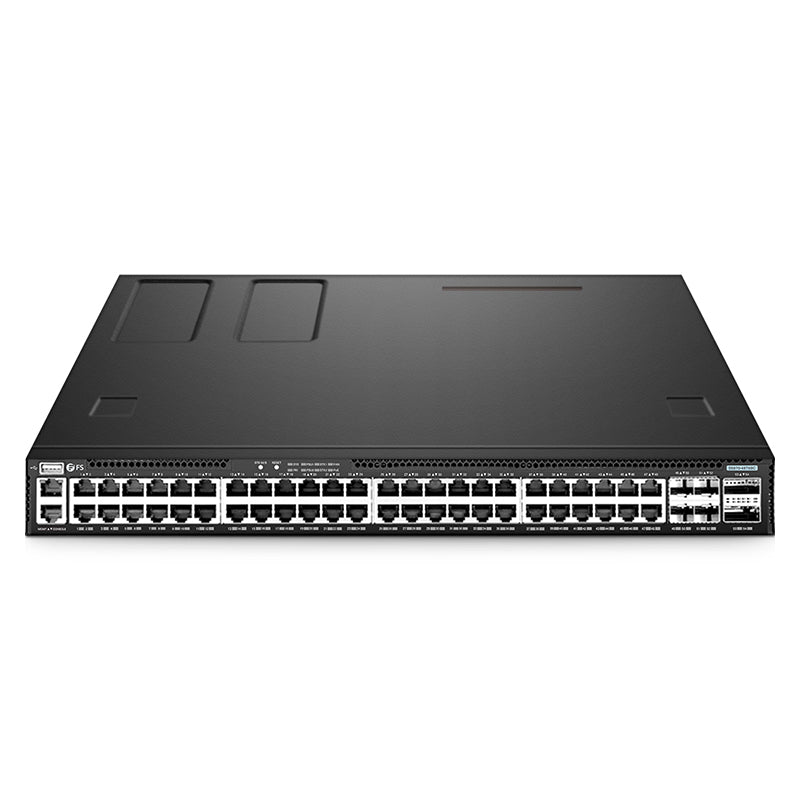

FS-S5870-48T6BC, Bare Metal Switch, 48-Port Ethernet L3 Enterprise, 48 x Gigabit RJ45, with 4 x 25Gb SFP28 and 2 x 100Gb FS-QSFP28 Uplinks, Broadcom Trident3-X3 Chip

The S5870-48T6BC is a high-performance access switch designed for modern enterprise networks. With line-rate L2 and L3 switching across 1G, 25G, and 100G ports in a compact 1U form factor, it offers multi-rate hybrid access to support diverse connectivity needs.

It is ideal for enterprise network access, aggregation, core, and data center top-of-rack (ToR) deployments.

The switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of the commercial PicOS® offerings.

Specifications

• Ports: 48x 10/100/1000BASE-T RJ45 | 4x 25G SFP28, 2x 100G QSFP28

• Switching Capacity: 348 Gbps (unidirectional)/696 Gbps (bidirectional)

• Switch Chip: Trident3-X3 BCM56371

• Forwarding Rate: 744 Mpps

• CPU: Intel Atom/Denverton C3558 4-Cores 2.2 GHz x86 Processor

• Packet Buffer: 8 MB

• Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC

• Jumbo Frame: 12,288 bytes

• Fans: 3 (2+1 Redundancy) Hot-swappable, Front-to-Back

• DDR4: 2x 8 GB SO-DIMM

• Dimensions (HxWxD): 1.73''x17.24''x18.66'' (44x438x474mm)

• Flash Memory: m.2 SSD:32GB MLC

• Weight: 15.39 lbs (6.98 kg)

• SPI Flash: 2x 16 MB

• Operating Temperature: 0 to 45°C (32 to 113°F)

• Input Voltage: 100-240V AC, 50-60Hz

• Storage Temperature: -40 to 70°C (-40 to 158°F)

• Max. Power Consumption: 150 W

• Operating Humidity: 5% to 95% (Non-condensing)

• Rack Unit: 1U
• Weight: 15.39 lbs (6.98 kg )
• Switch Chip: Trident3-X3 BCM56371
• Ports: 48x10/100/1000 BASE-T; 4x 25G SFP28; 2x 100G QSFP28
• Switching Capacity: 348 Gbps (unidirectional)/696 Gbps (bidirectional)
• Forwarding Rate: 744 Mpps
• Power Supplies: 2 (1+1 Redundancy) Hot-swappable, AC
• Fans: 3 (2+1 Redundancy) Hot-swappable, Front-to-Back
• Max. Power Consumption: 150 W

Product Highlights

• Broadcom Trident3-X3 Chip, 348 Gbps Throughout

• 48× RJ45 Access Ports, with 25G and 100G Uplink Options for Superior Connectivity.

• 1+1 Hot-swappable Power Supplies, and 2+1 Hot-swappable Smart Fans

• Support PicOS® Network Operating System

• AmpCon-Campus Management Platform Provides Full Day 0 to Day 2+ Capabilities

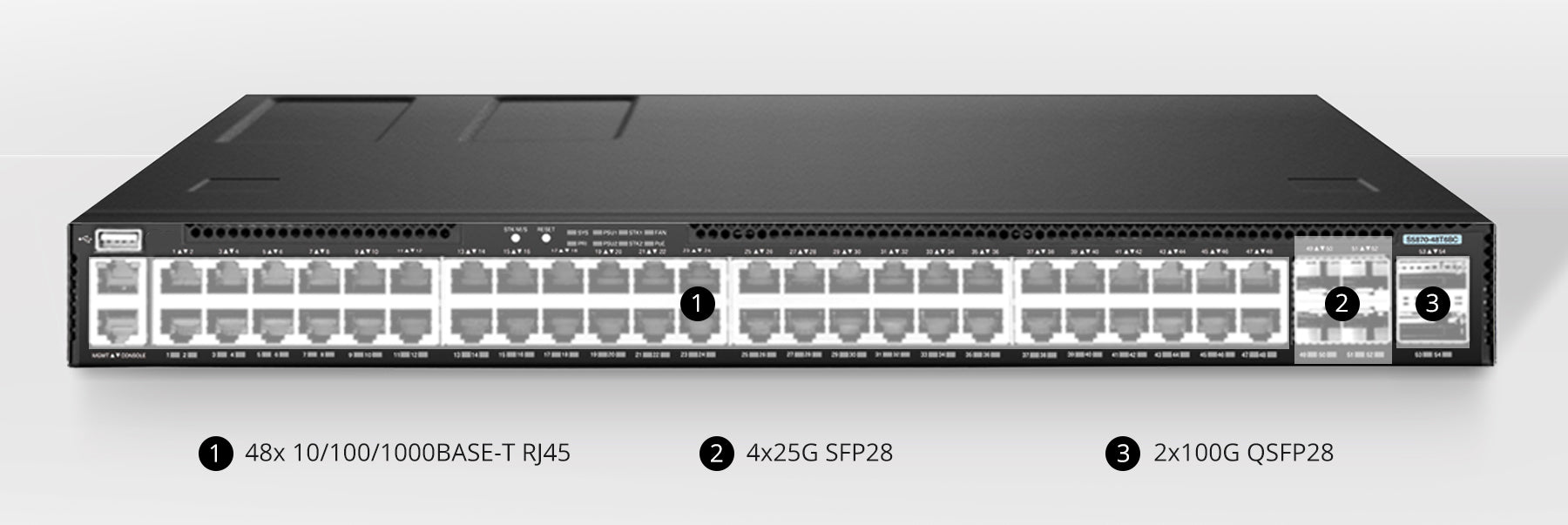

Connectivity Solutions

High-speed and Flexible Interface Enhance Network Performance
Provide large-scale device access through 10/100/1000BASE-T RJ45 ports, and can be connected to uplink devices through high-performance 25G/100G ports, fully meeting users' requirements for high-density access.

BCM56371 Trident3 X3 Delivers a Glueless Network Connectivity
The FS-BCM56371 is a high-capacity device that delivers up to 348 Gbps of high-bandwidth, glueless network connectivity on a single chip, supporting 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE IEEE standards.

Hardware-level Redundancy Ensures Network Stability
Hot-swappable redundant power supplies and fans ensure high reliability and intelligent, efficient heat dissipation to support the development of low-carbon campuses.

PicOS® Ensures Stable and Secure Network Operations
The switch provides comprehensive L2/L3 capabilities when equipped with PicOS® software while enhancing availability, security, and management, thereby improving network performance and simplifying operations.

AmpCon-Campus Management Platform
After being equipped with PicOS® software, the switch can be managed by the AmpCon-Campus Management Platform to provision, monitor, proactively troubleshoot, and maintain high-performance networking, enabling higher resource utilization and lower OPEX.
