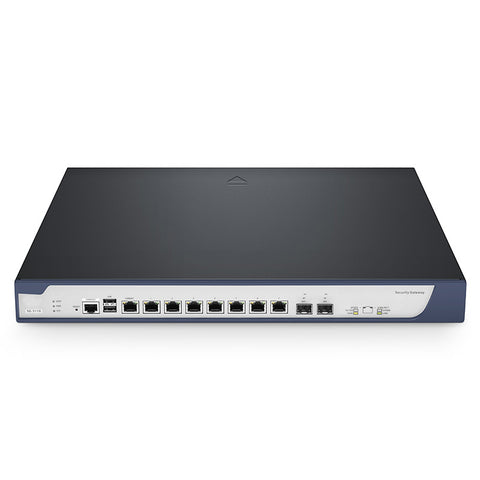

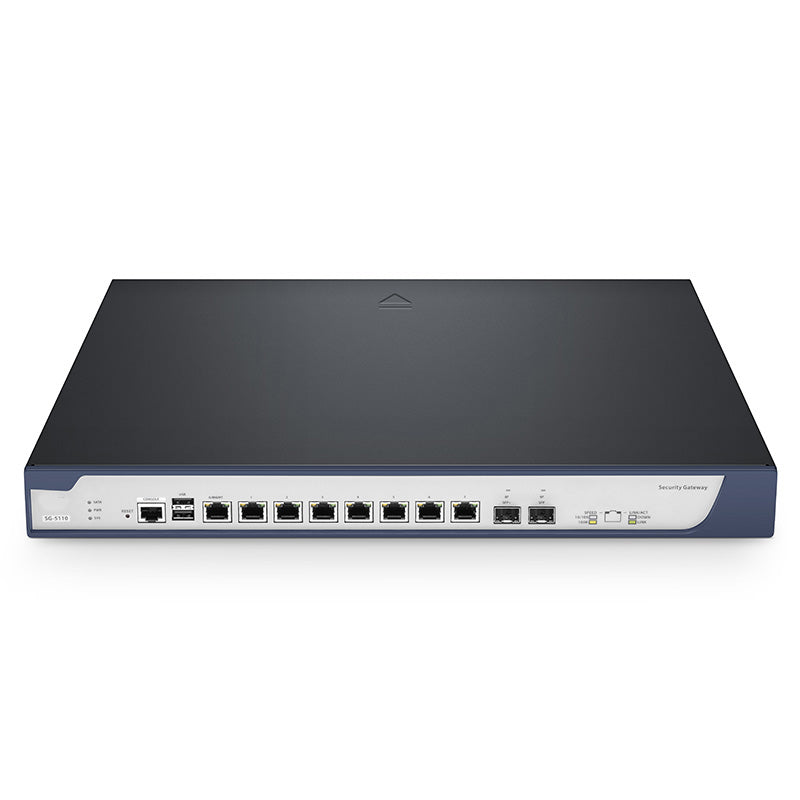

FS-SG-5110, Multi-WAN Security Gateway with 8 Gigabit RJ45 Ports, 1x SFP, 1x SFP+, Up to 10 WAN Ports, Built-in WLAN Controller, SPI Firewall, Routing, Support Load Balancing, IPSec/L2TP VPN and DoS Defense

Build a secure and flexible network with the SG-5110, a next-generation multi-service security gateway. Combining security, routing, wireless control, SPI firewall, and advanced threat mitigation, the SG-5110 reduces network complexity, protects resources, and enhances user and application experiences while lowering the total cost of ownership (TCO).

Ideal for headquarters and branches, educational metropolitan networks, chain hotels, chain stores, and small to medium-sized campuses.

Specifications

• CPU: Marvell ARMADA 7040 Quad-Core

• Performance: 1500 Mbps

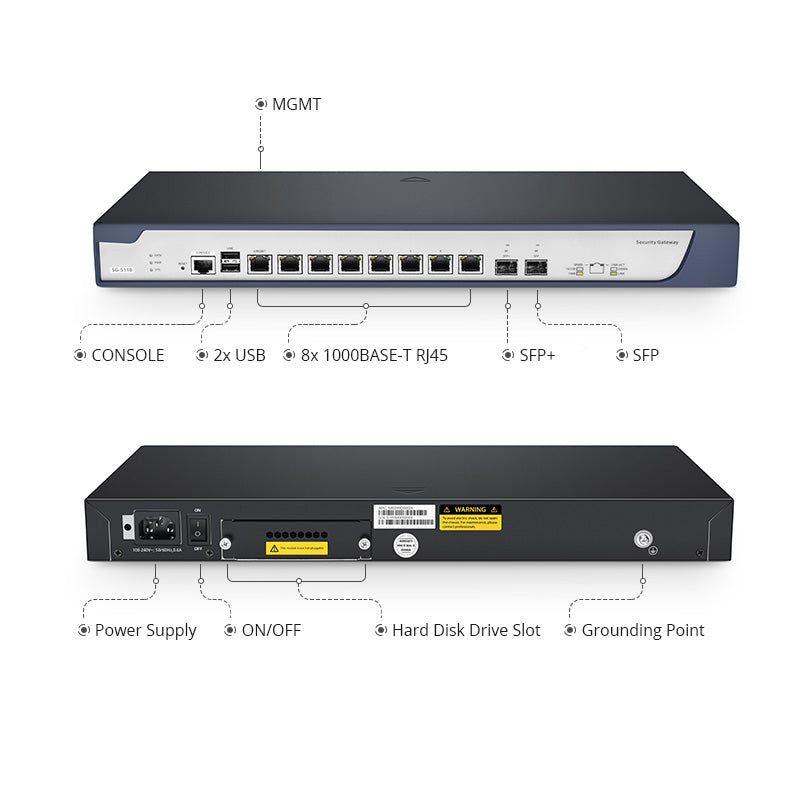

• Fixed Ports: 8x 1000BASE-T, 1x SFP, 1x SFP+

• Recommended Concurrent Users: 1500

• WAN Ports: 9x 1 Gigabit, 1x 10 Gigabit WAN

• WAN Load Balancing: Support

• USB 2.0: 2

• IPsec VPN Tunnel: 1000

• Storage Module: 1 TB

• Managed APs: Wi-Fi 6 APs

• Flash Memory: 8 GB

• Max Number of Managed APs: 64

• RAM: 2GB

• Max Power Consumption: 25W

• GRE VPN Tunnel: 1000

• Weight: 8.82 lbs (4kg)

• Power Supply: 100VAC-240VAC, 50-60Hz, 0.65A

• Dimensions (HxWxD): 1.72''x17.32''x7.87'' (43.6x440x200mm)

• Operating Temperature: 32°F to 113°F (0ºC to 45ºC)

• Operating Humidity: 10% to 90% (Non-condensing)

Product Highlights

• 10 WAN Ports with Load Balance to Optimize Bandwidth Usage

• Supports Highly Secure IPsec/L2TP/PPTP VPN Connection

• Stateful Firewall, DDoS Defense, URL Filtering, Secure Address Binding

• Seamless L2/L3 Roaming for Mass Users or Client Devices

• Managed via Airware Cloud/WEB/CLI

Connectivity Solutions

Up to 10 WAN Ports to Optimize Bandwidth Usage
Equipped with 10 WAN SFP+, SFP, and RJ45 ports, SG-5110 meets various internet access needs through one device. Multi-WAN Load Balancing optimizes bandwidth usage across all WAN ports.

Multi-service Security Gateway, One is Enough
Integrates SPI firewall, online behavior management, WAN optimization, VPN gateway, and WLAN controller, simplifying network deployment and reducing total cost.

High-Security and High-Performance VPN
Supports visual configuration for IPSec/L2TP/PPTP VPN, enabling quick and easy setup of enterprise headquarters and branch VPNs, simplifying operation and management.

Robust Security Features for Efficient Business Protection
Supports stateful firewall, DDoS defense, URL filtering, Secure Address Binding, and more security functions to protect your network and data.

L7 Deep Packet Inspection (DPI)
Role-based flow control based on username and user group, making it easy to allocate bandwidth.

Simplify Your Management Tasks
Management via user-friendly web interface to cope with the complex network problems.

Airware Cloud-based Network, One Control Center
Allow you to configure and manage 24/7 from one central location to reduce costs and time.
