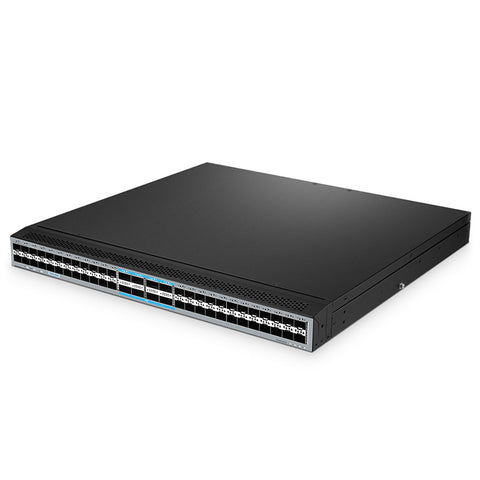

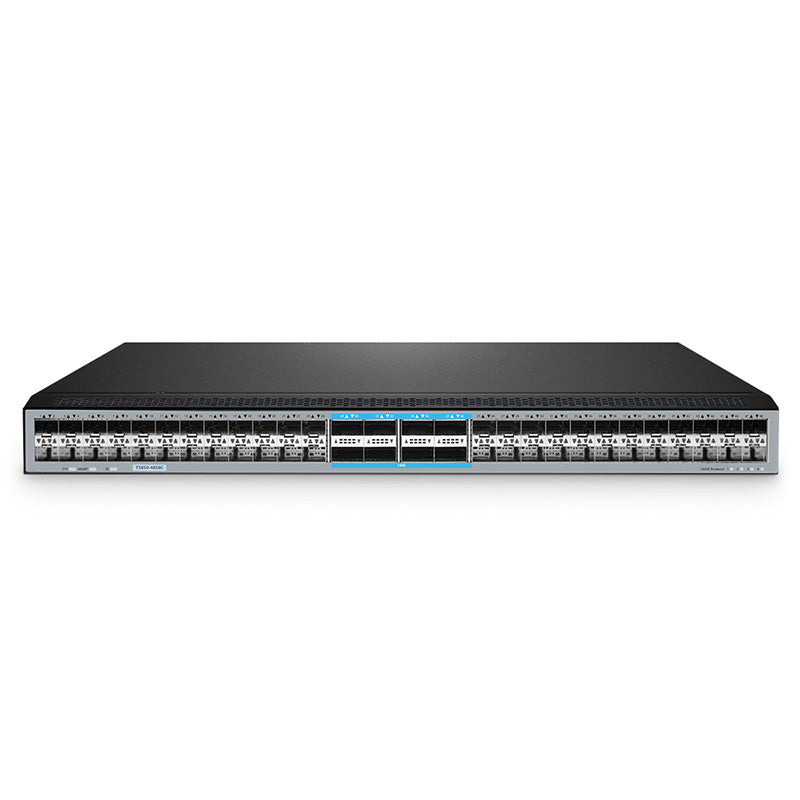

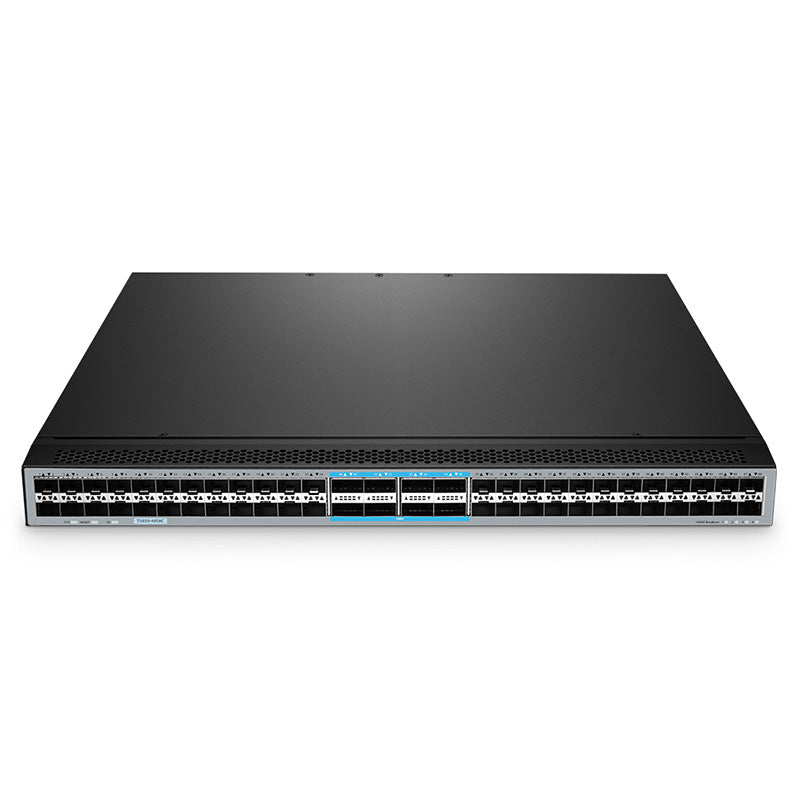

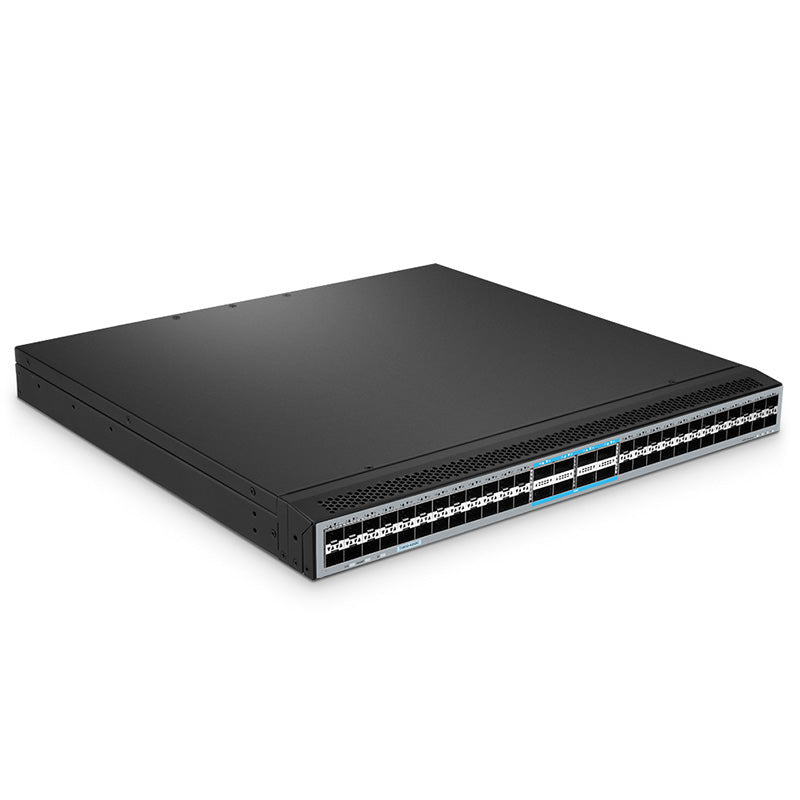

FS-T5850-48S8C, 48 x 10G SFP+ with 8 x 100G QSFP28 Ports, Network Packet Broker (NPB), Network Visibility and Monitoring

A Network Packet Broker (NPB) is a device that optimizes the flow of traffic between TAP and SPAN connections and network monitoring, security tools. The packet broker collects traffic from single or multiple network links, filtering and distributing each individual packet to the correct network monitoring tool by load balancing, which enhances the performance of network analysis and security tools.

The FS-T5850-48S8C Network Packet Broker(NPB) features 48 SFP+ (1/10 Gbps) and 8 QSFP28 ports (100 Gbps) providing aggregation, replication, filtering, load balancing and deduplication in very high bandwidth port monitoring and analysis scenarios.

Specifications

• Ports: 48x 10G SFP+ | 8x 100G QSFP28

• 100/1000 Mgmt Port: 1

• Switching Method: Store and Forward/Cut Through

• Switching Capacity: 1.28 Tbps

• Latency: 700ns

• Throughput: 1905Mpps

• System Memory: 16GB

• CPU: 4 cores, Xeon D-1527, 2.2 GHz

• Packet Buffer: 36MB

• Flash: 128GB

• Ingress Flow Entries: 8000

• Input Voltage: 100-240VAC, 50-60Hz

• Egress Flow Entries: 253

• Max. Power Consumption: 160W

• MTBF: 162213

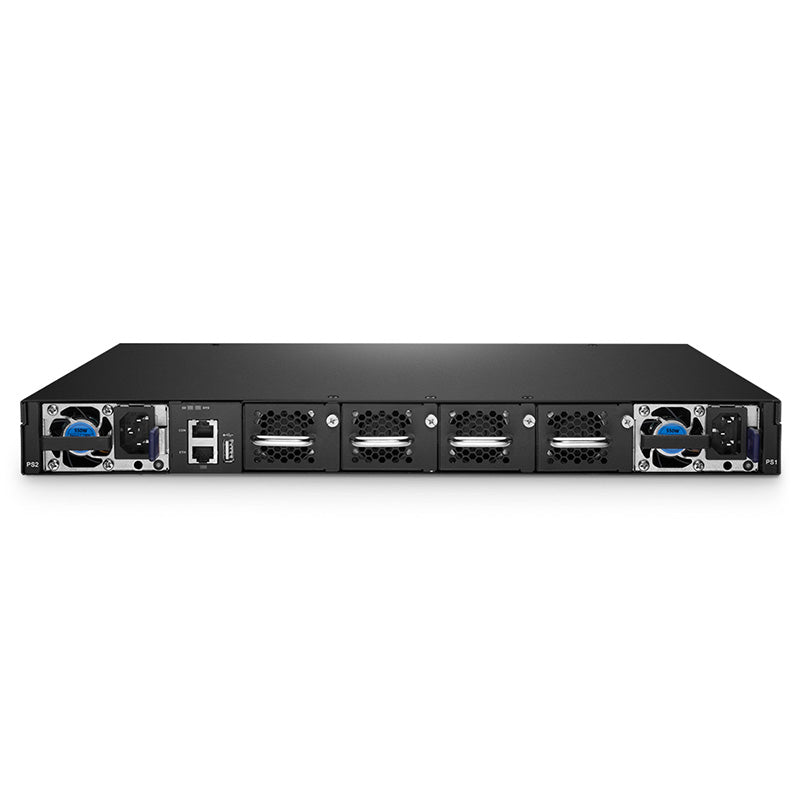

• Power Supplies: 2 (1+1 redundant)

• Airflow: Front-Rear

• Fans: 4 pluggable fans (2+2 redundant)

• Weight: 20.28lbs (9.2kg)

• Dimensions(HxWxD): 1.73''x17.5''x18.9'' (44x440x420mm)

Software Spotlights

Pervasive Visibility

• Support Traffic Aggregation, Replication and Distribution
• Support Ingress and Egress Filter
• Support Traffic Match
• Support Traffic Editing
• Support Traffic Load Balancing

Advanced Functionality

• Support Packets Deduplication
• Support Tunnel Decapsulation( VxLAN, GRE/NVGRE decryption and encapsulation)
• Support Time Stamps
• Support Packet Truncation
• Support UDF

Connectivity Solutions

Network Visualization Solutions
The NPB optimizes network monitoring by collecting and filtering traffic, improving performance, management, and security, while reducing downtime and costs.

Network Packet Brokers (NPB) Facilitate Visibility for All IT Operations
Optimize the performance of network monitoring, analysis and security tools and offer visual solutions for SMEs and service providers.

Traffic Monitoring and Analysis with Multiple Traffic Analyzers
Network visibility allows enterprises to see and optimize application performance, quickly detect and respond to potential threats, secure network environment and enhance business scalability.
