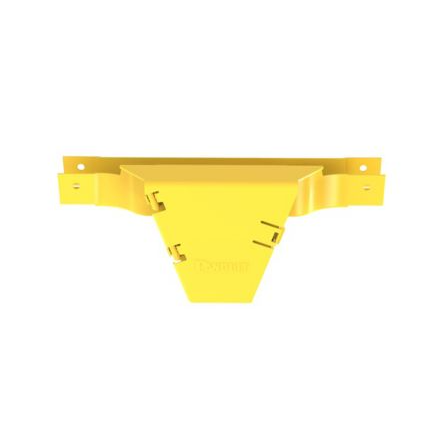

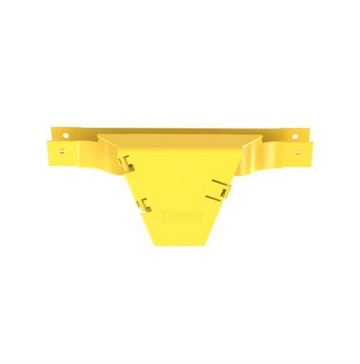

FVTHD2X2LYL FiberRunner® Vertical Tee, 90°, 2x2, Yellow
FVTHD2X2LYL FiberRunner® Vertical Tee, 90°, 2x2, Yellow
The FiberRunner® 2x2 Vertical Tee creates a 90° vertical drop from a horizontal run. The vertical tee attaches to a 2x2 channel and/or fittings to create a 90° vertical drop from a horizontal run. The vertical tee fitting accepts a channel cover in conjunction with the channel. It can be used with the QuikLock™ Coupler or Channels, snap rivets or bolts with channels, and the 1-port spillout. This product includes a hinged door.
| UPC | 61305676852 |
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.2891 |
| Std. Ctn. Qty. | 5 |
| Std. Ctn. Volume (cf) | 1.4457 |
| Application | Data Centers and Telco Central Offices |
| Product Type | Tee Fitting |
| Sub Brand | FiberRunner™ |
| Bend Radius (In.) | 2 |
| Bend Radius (mm) | 50.8 |
| Channel Material | PC |
| Color | Yellow |
| Fitting Type | Vertical Tee |
| Fitting Material | PC.ABS |
| For Use With | 2x2 FiberRunner System |
| Material | PC/ABS |
| Overall Height (In.) | 5.76 |
| Overall Height (mm) | 146.3 |
| Overall Length (In.) | 4.11 |
| Overall Length (mm) | 104.4 |
| Overall Width (In.) | 14.22 |
| Overall Width (mm) | 361.2 |
| Standards Met | RoHS Compliant, UL Listed to 2024A Optical Fiber Cable Routing Assemblies Compliant with the applicable tests in Telcordia GR-63-CORE Network Equipment Building Systems Level 3 |
| System Dimensions | 2x2 |
