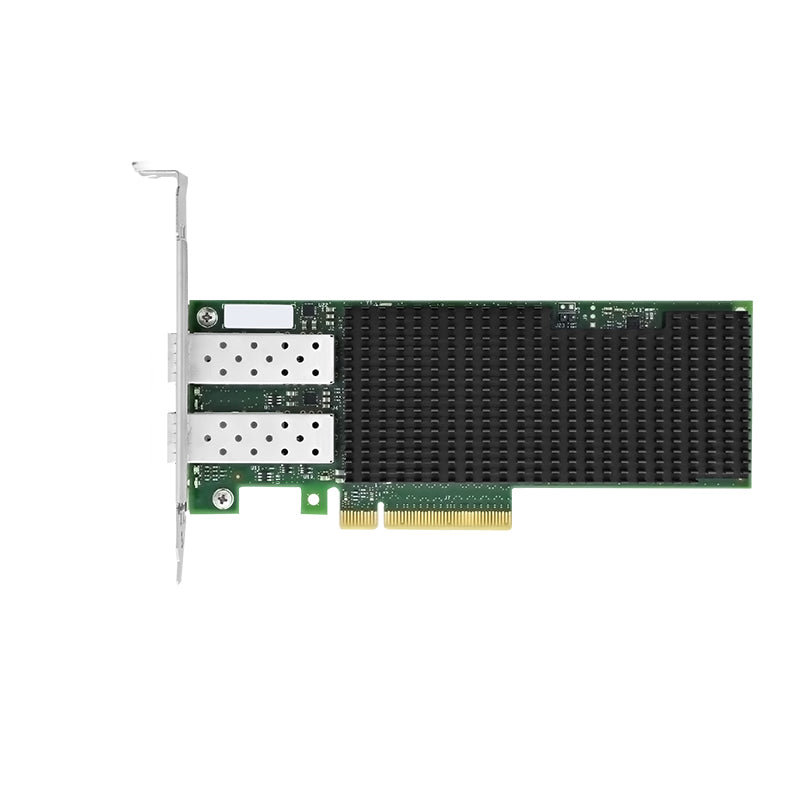

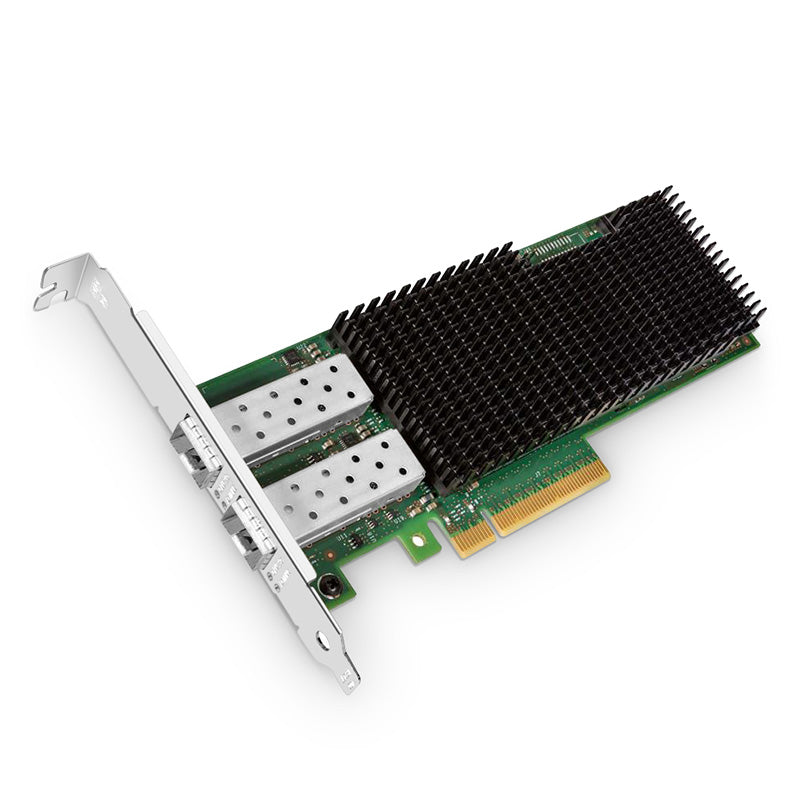

Intel® XXV710-DA2 Ethernet Network Interface Card , 25G Dual-Port SFP28, PCIe 3.0 x 8, Full Height&Low Profile

Intel® XXV710-DA2 network adapters are the foundation for server connectivity, providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.

By supporting a PCIe 3.0 x 8 host interface, this adapter provides sufficient bandwidth for line rate traffic on dual 25Gb ports and delivers networking performance across a wide range of network port speeds through intelligent offloads, sophisticated packet processing, and quality open source drivers.

Specifications

• Ports: Dual

• Controller: Intel XL710-BM2

• Data Rate Per Port: 25/10/1GbE

• System Interface Type: PCIe 3.0 x 8

• Connector Type: SFP28

• Max. Power Consumption: 14.1W

• Bracket Height: Full Height and Low Profile

• Card PCB Dimensions (WxD): 6.57x2.72" (167x 69mm)

• Connectivity (VT-c): Yes

• Storage Over Ethernet: iSCSI, NFS

• SR-IOV: Yes

• NVGER: Yes

• GENEVE: Yes

• VXLAN: Yes

• DPDK: Yes

• IWARP: No

• RoCE: No

• OS Support: Windows, Linux, VMware, FreeBSD

• GENEVE: Yes

• VXLAN: Yes

• DPDK: Yes

• IWARP: Yes

• Storage Humidity: 90% max. non-condensing relative humidity at 35ºC

• Operating Humidity: 85% max. non-condensing relative humidity

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Temperature: 0 °C to 55 °C (32 °F to 131 °F)

Product Highlights

• PCIe 3.0 x 8 Host Interface and 25GbE Dual-Port Transmission

• Support Network Virtualization Offloads Including VxLAN, GENEVE, NVGRE and MPLS

• Intel® Ethernet Flow Director for Hardware-based Application Traffic Steering

• Data Plane Development Kit (DPDK) Optimized for Efficient Packet Processing

• Excellent Small Packet Performance for Network Appliances and NFV

• I/O virtualization Innovations for Maximum Performance in a Virtualized Server

Connectivity Solutions

Efficient Data Center Networking Solution Based on Intel NICs
The NICs provide efficient and stable network connections, enabling high-speed data transmission between servers and switches.

Intel XXV710 Chip Provides Broad Interoperability
The Intel XXV710 Gigabit Ethernet chip, as the foundation for server connectivity, increases agility for Communications, Cloud, and Enterprise IT network solutions.

Advanced Connection Virtualization Technology
Enhancing network performance and manageability in virtualized environments is crucial for areas such as cloud computing, virtualized data centers, and network function virtualization.

Intelligent Offloads Reduce CPU Utilization for I/O
By assisting the host processor, improving network performance, reducing the load on the host processor, and thereby enhancing system efficiency.
