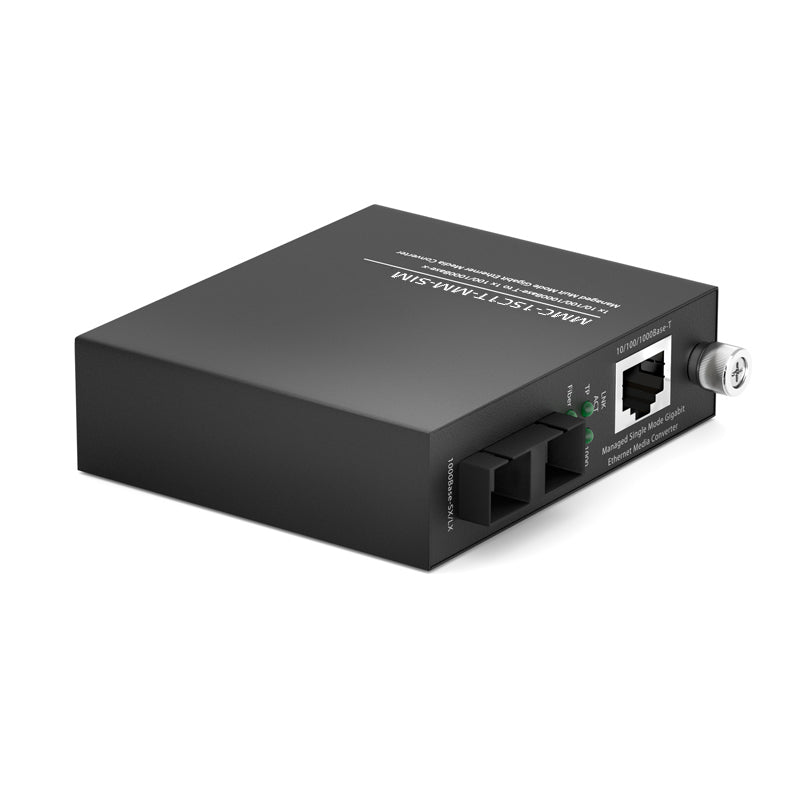

Managed 1x 10/100/1000Base-T RJ45 to 1x 100/1000Base-X Multimode SC Duplex 850nm 550m Gigabit Ethernet Media Converter, Slide-in Module, American Plug Standard

The FC-MMC-1SC1T-MM-SIM features 1x 10/100/1000Base-T RJ45 to 1x 100/1000Base-X Multimode SC ports, enabling fiber extensions up to 550m (Multimode) or 120km (Single Mode/WDM). Its integration of Link Fault Pass-through (LFP) technology promotes efficient network maintenance.

It reduces downtime, while each fiber is equipped with a Link Loss Return (LLR) switch to help diagnose remote network connection issues.

It enables easy connectivity between two network segments and integrates into a 16-slot managed media converter chassis as a slide-in module.

The media converter enables centralised remote management through the Web Smart/Managed Media Converter Chassis System (MC-16DP), allowing users to monitor real-time status and configure the converter flexibly from any location.

Specifications

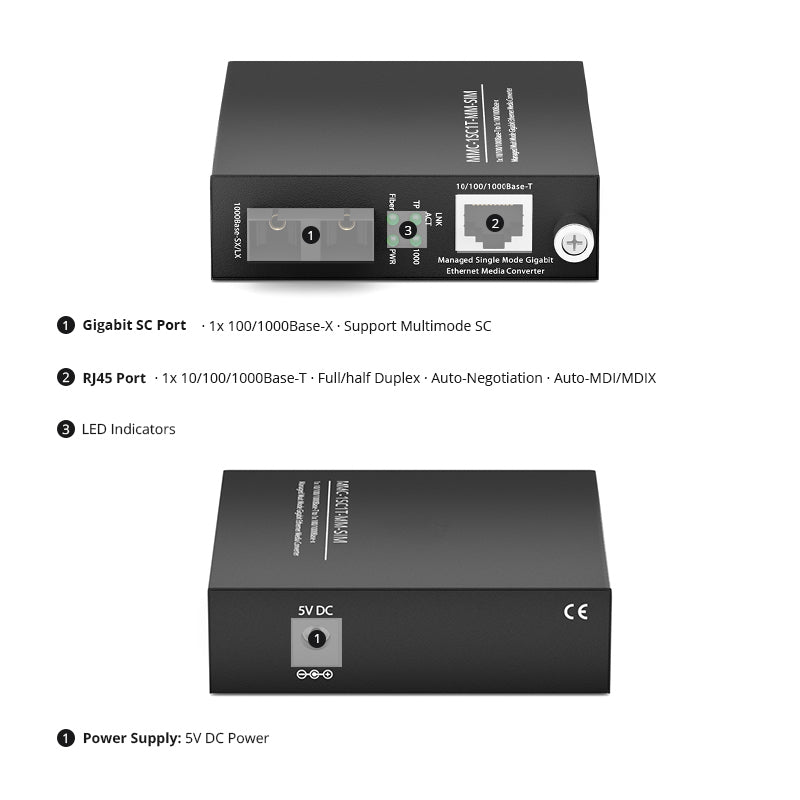

• Ports: 1x 10/100/1000Base-T RJ45 (Auto MDI/MDIX); 1x 100/1000Base-X SC

• Standards and Protocols: IEEE 802.3, 10BASE-T IEEE 802.3u; 100BASE-TX IEEE 802.3ab; 1000BASE-T IEEE 802.3z; 1000BASE-SX/LX IEEE 802.3ah

• Cable Type (Fiber): Multimode 50/125um, 62.5/125μm; Single-mode 9/125μm

• Cable Type (Copper): UTP Cat 3/4/5 Cable (Maximum 100m)

• LED Indicators: PWR, TP LINK/ACT, 1000, Fiber LINK/ACT

• DIP Switch: Fiber (Auto-negotiation/Manual); LFP (Disable/Enable)

• Power Consumption: 2.3W

• Jumbo Frame: 16K

• Operation Mode: 10/20Mbps for Half/Full Duplex; 100/200Mbps for Half/Full
• Duplex; 2000Mbps for Full Duplex

• Dimensions (HxWxD): 3.15"x3.66"x1.02" (80x93x26mm)

• Input Power: DC 5V, 2A

• Flow Control: Back Pressure for Half Duplex; IEEE 802.3x for Full DuplexWavelength: 850nm

• Fiber Maximum Distance: 220/550m

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -10°C to 70°C


Connectivity Solutions

Gigabit Auto-Negotiation Fiber to Ethernet Media Converter
1x 100/1000Base-X SC duplex port and 1x 10/100/1000Base-T RJ45 port extend communication distance with high performance of data transmission.

Convert and Extend Signals Within Your Ethernet Network
The Converter extends links over greater distances with fiber optic cable, making it perfect for IT professionals and secure setups in government, business, or educational applications.

LFP Alarm Link Failure Within a Short Period of Time
With the LFP (link fault pass through) function, system administrators are able to notice the link failure within a short period of time, minimizing the loss caused by this problem.

Equipped with Web and SNMP Management Interfaces
With its built-in Web-based management interface, MMC-1SC1T-MM-SIM offers an easy-to-use, platform-independent management and configuration facility.
