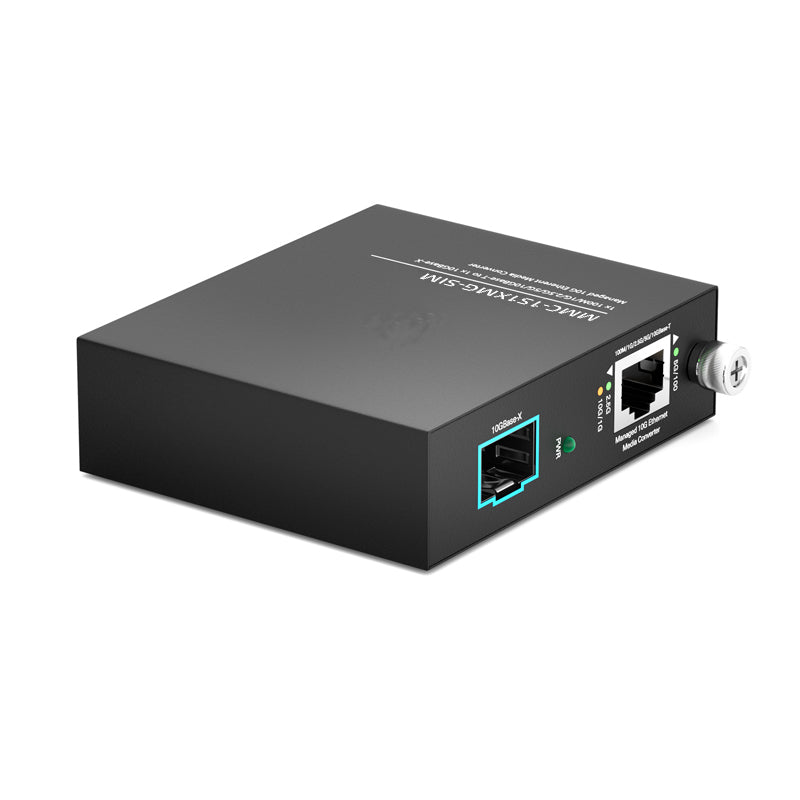

Managed 1x 100M/1G/2.5G/5G/10GBase-T RJ45 to 1x 10GBase-X SFP+ Slot 10Gigabit Ethernet Media Converter, Slide-in Module, American Plug Standard

The FS-MMC-1S1XMG-SIM Gigabit Ethernet Media Converter bridges 1x 10GBase-X SFP+ to 1x 100M/1G/2.5G/5G/10GBase-T RJ45 port, enabling fiber extensions dependent on SFP modules.

It is equipped with automatic MDI/MDI-X configuration and auto-negotiation with the option to set the fiber port to operate in either half-duplex or full-duplex mode.

Additionally, it enables easy connectivity between two network segments and integrates into a 16-slot managed media converter chassis as a slide-in module.

The media converter enables centralised remote management through the Web Smart/Managed Media Converter Chassis System (MC-16DP), allowing users to monitor real-time status and configure the converter flexibly from any location.

Specifications

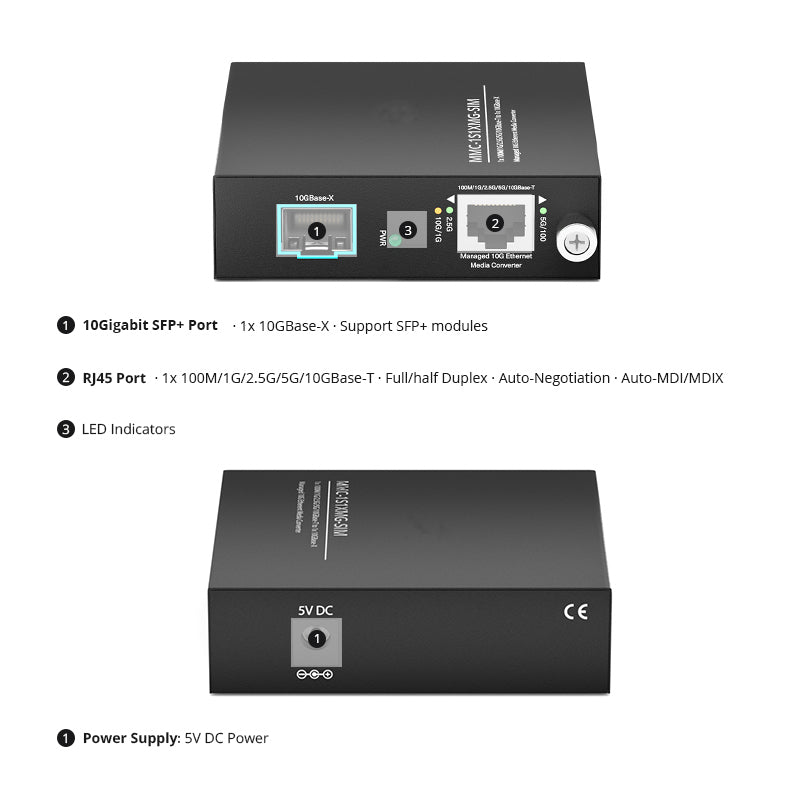

• Ports: 1x 100M/1G/2.5G/5G/10GBase-T RJ45 (Auto MDI/MDIX); 1x 10GBase-X SFP+

• Standards and Protocols: IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T; IEEE 802.3bz 2.5G/5GBASE-T; IEEE 802.3an 10GBASE-T; IEEE 802.3ae 10Gbps Ethernet; IEEE 802.3x full-duplex flow control (Copper Port)

• Cable Type (Fiber): Multimode 50/125um, 62.5/125μm; Single-mode 9/125μm

• Cable Type (Copper): Cat 6a/7 Cable (Maximum 100m)

• LED Indicators: PWR, 5G/2.5G/100M LNK

• Fabric: 20Gbps

• Power Consumption: 3.8W

• Jumbo Frame: 16K

• Operation Mode: 100Mbps for Half/Full Duplex 1/2.5/5/10Gbp for Full Duplex

• Dimensions (HxWxD): 3.69"x3.18"x1.04"(93.8x80.75x26.4mm)

• Installation: Desktop or Wall-mount

• Flow Control: Back Pressure for Half/Duplex; IEEE 802.3x Pause Frame for Full Duplex

• ESD Protection: 6KV DC

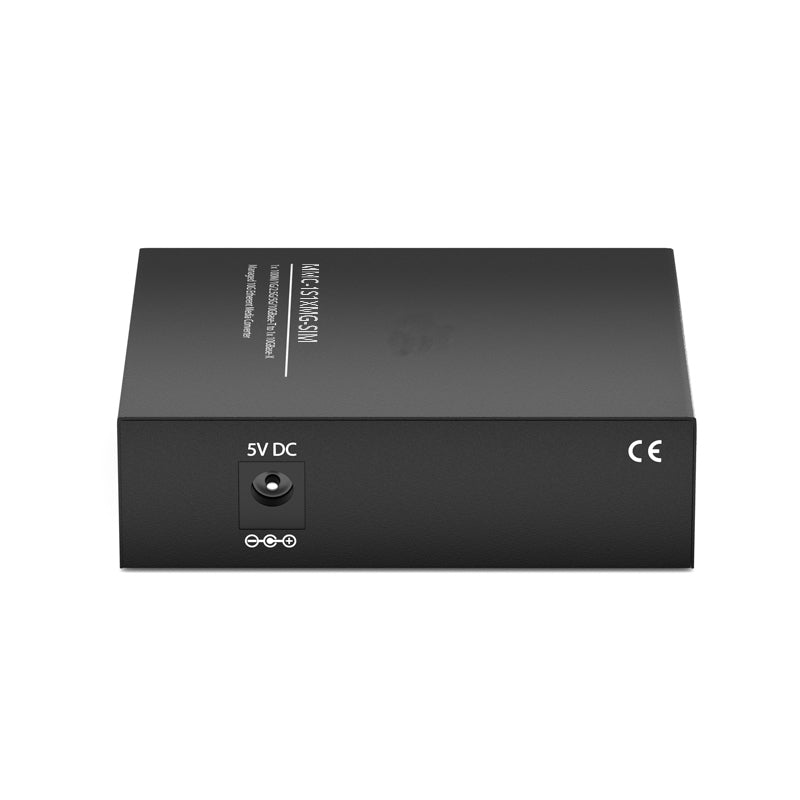

• Input Power: DC 5V, 2A

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -10°C to 70°C

Product Highlights

• 10G RJ45 Port with Auto-Negotiation and Auto-MDI/MDIX

• Plug and Play, No Configuration Needed

• Managed via the Web Smart Converter Chassis MC-16DP

• Prevents Packet Loss via Half/Full-duplex Flow Control

• Complies with IEEE 802.3 Ethernet Standard

Connectivity Solutions

Gigabit Auto-Negotiation Fiber to Ethernet Media Converter
1x 10GBase-X SFP+ port and 1x 100M/1G/2.5G/5G/10GBase-T RJ45 port extend communication distance with high performance of data transmission.

Convert and Extend Signals Within Your Ethernet Network
The Converter extends links over greater distances with fiber optic cable, making it perfect for IT professionals and secure setups in government, business, or educational applications.

LFP Alarm Link Failure Within a Short Period of Time
With the LFP (link fault pass through) function, system administrators are able to notice the link failure within a short period of time, minimizing the loss caused by this problem.

Equipped with Web and SNMP Management Interfaces
With its built-in Web-based management interface, MMC-1S1XMG-SIM offers an easy-to-use, platform-independent management and configuration facility.
