Mini Unmanaged 1x 100M/1G/2.5G/5G/10GBase-T RJ45 to 1x 10GBase-X SFP+ Slot 10Gigabit Ethernet Media Converter, American Plug Standard

The Mini Unmanaged 10Gigabit Ethernet Media Converter transparently connects 100M/1G/2.5G/5G/10GBase-T Ethernet links over multimode or single mode fiber, up to 100km transmission distance. Its integration of Link Fault Pass-through (LFP) technology promotes efficient network maintenance and reduces downtime.

It provides an economical path to extend Ethernet data transmission distances or convert network speeds, suitable for data center cloud computing, enterprise backbone, campus networks and carrier infrastructure.

The FS-UMC-1S1T-R is small and lightweight, supporting desk and chassis installation. It's also compatible with various transceiver modules, such as general 10GBase SFP+, BIDI and CWDM transceiver modules, etc.

Be sure that the wavelength, speed rate, and the distance of the transceiver modules used at the both ends of the media converter are consistent.

Specifications

• Port Type: 1x 100M/1G/2.5G/5G/10GBase-T RJ45 1x 10GBase-X SFP+

• Standards and Protocols: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3x

• Cable Type (Fiber): Multimode 50/125µm, 62.5/125µm Single-mode 9/125µm

• Cable Type (Copper): Cat5/5e/6/6a/7

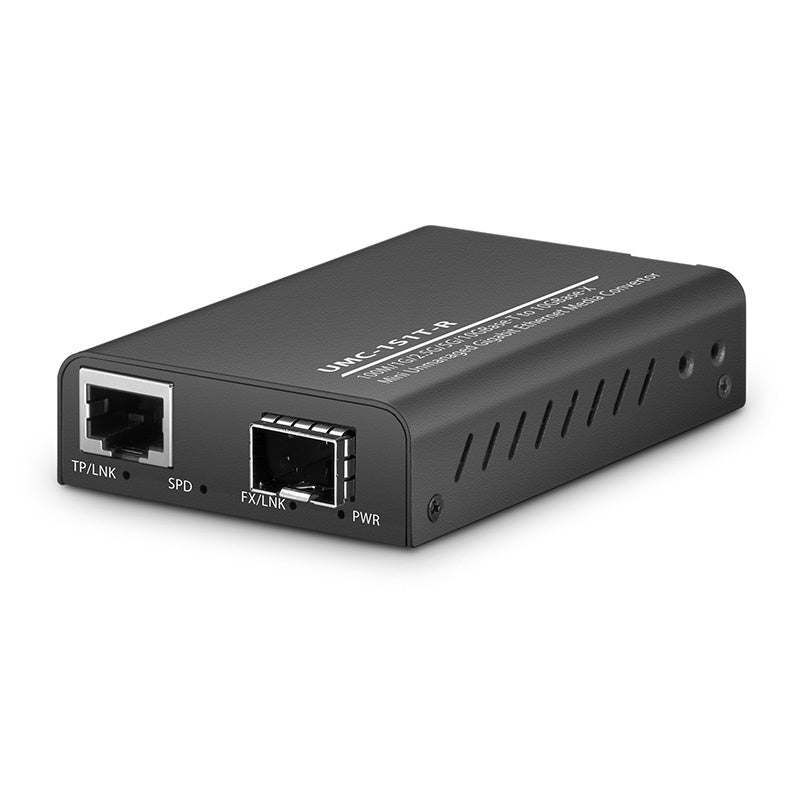

• LED Indicators: TP/LNK, SPD, FX/LNK, PWR

• DIP Switch: LFP/ ALS/ FX Speed/FX Reset

• Power Consumption: Full-load<5W

• Jumbo Frame: 16k

• Speed: 1.25G/2.5G/5G/10G

• MTBF (hrs): ＞50,000Hrs

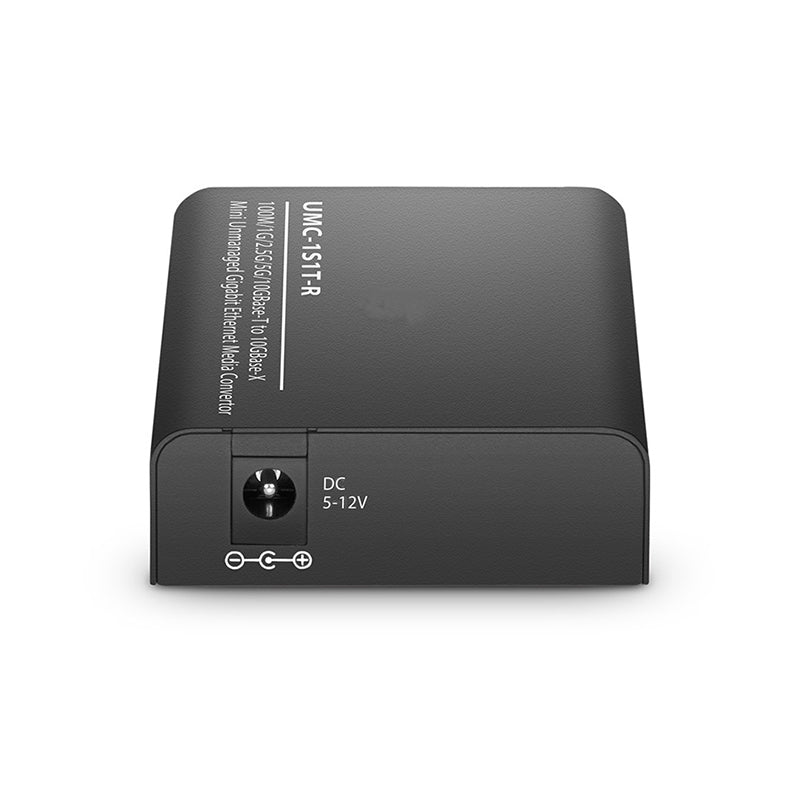

• Input Power: DC 5-12V

• Dimensions (HxWxD): 0.79''x2.36''x3.54'' (20x60x90mm)

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -10°C to 70°C

• Maximum Packet Forwarding Rate: 14,880,950/S

• Compliance: FCC ClassA, CE ClassA

• Matching Products: MFMC-12DP

Product Highlights

• 1x 100M/1G/2.5G/5G/10G Auto-Negotiation RJ45 Port

• Max Transmission Distance Depends on Inserted Modules

• Plug-and-play, Support 1U 12 Slots Chassis & Stand-alone Use

• Support Advanced Features: LFP (Link Fault Pass Through)

• Auto-negotiation of Half-Duplex/Full-Duplex Transfer Mode
• Wave Length: Depends on the used SFP+ module
• Transmission Media: Depends on the used SFP+ module
• Transmission Distance: ≤100KM Depends on the Inserted Modules

Connectivity Solutions

Gigabit Auto-Negotiation Fiber to Ethernet Media Converter
1x 10GBase-X SFP+ port and 1x 100M/1G/2.5G/5G/10GBase-T RJ45 port extend communication distance with high performance of data transmission.

Convert and Extend Signals within your Ethernet Network
The media converter turns a copper Ethernet link into a fiber link, providing an economical path to extend the distance of an existing network or the distance between two devices.

Simple & Quick Operation
The hot swappable design makes these converters easy to install and troubleshoot for newbies, which allows simple communication with other devices.

LFP Alarm Link Failure within a Short Period of Time
With the LFP (link fault pass through) function, system administrators are able to notice the link failure within a short period of time, minimizing the loss caused by this problem.

Flexible Deployment Options
Its small and lightweight form factor is suitable for 1U 12 Slots chassis integration and desktop installation, meeting your diverse deployment needs with ease.

DIP Switches to Control the Signal/Electricity Transmission
The DIP Switch can help select and change between various hardware or device options. Users just need to toggle each switch between on and off positions to enable and disable certain functions.
