MSOA-1550 Semiconductor Optical Amplifier (SOA)
Please contact us at sales@fo4sale.com for a quote!
MSOA-1550 Semiconductor Optical Amplifier – 1550nm C-Band, 14-Pin Butterfly
Compact, High-Gain Optical Amplification for 40G/100G Systems
The MSOA-1550 Semiconductor Optical Amplifier (SOA) is a cost-effective, high-performance solution for amplifying optical signals in the 1550nm window, ideal for both 40G and 100G networks. Built on mature semiconductor laser and packaging technologies, it delivers excellent gain performance while maintaining low noise and low polarization sensitivity — all in a compact 14-pin MSA butterfly package.
Designed for both continuous wave (CW) and high-speed modulated signals, the MSOA-1550 offers up to 23 dB peak gain, <2 dB polarization dependent gain, and 10 dBm saturation output power, making it well-suited for inline telecom applications or lab setups that require precise, high-efficiency optical signal boosting. With its FC/APC connectorized SMF-28 pigtails and thermoelectric cooling, it’s ready for integration into demanding photonics systems.
🔧 Key Features
-
C-Band Optical Amplification for 40G and 100G telecom systems
-

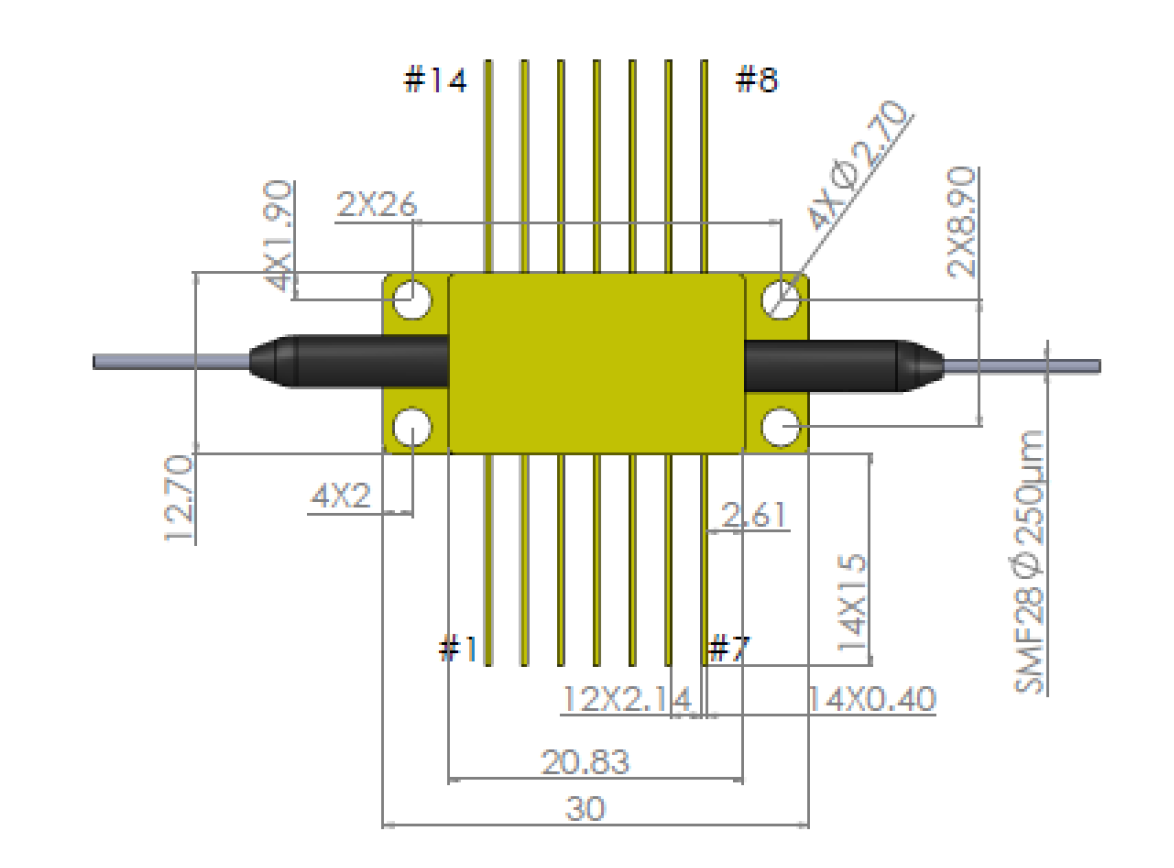

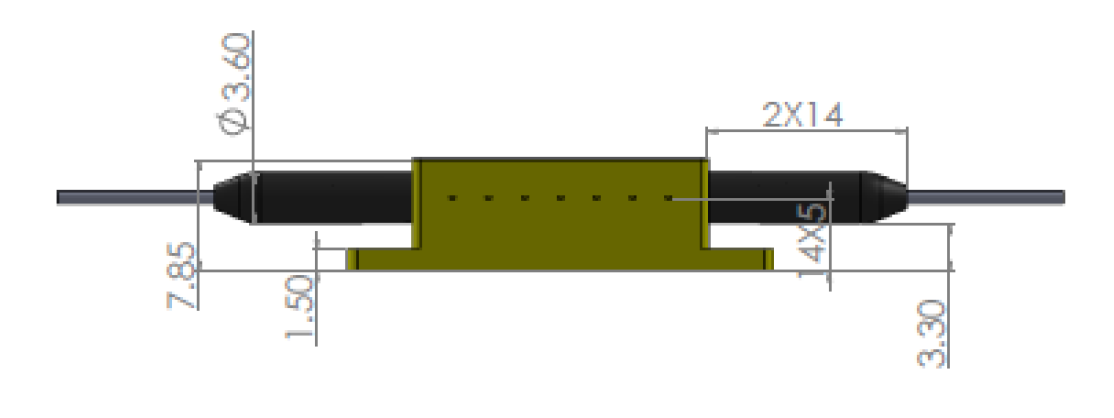

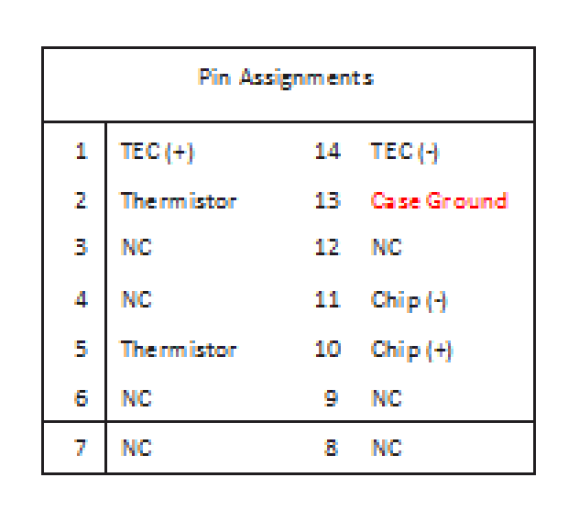

Compact 14-Pin MSA Package for easy integration
-
High Peak Gain: Up to 23 dB
-
Saturation Output Power: Up to 10 dBm
-
Low Noise Figure: As low as 9 dB
-
Low Polarization Sensitivity: < 2.0 dB
-
Supports CW and Modulated Signals
-
SMF-28 Fiber Pigtail (FC/APC), >1m included
-
Integrated TEC Cooling and Thermistor Monitoring
📐 Technical Specifications
| Parameter | Symbol | Min | Typ | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Case Operating Temp. | Tcase | -15 | 65 | °C | T = 25°C, IF = 300 mA | |
| Storage Temperature | Tstore | -40 | 85 | °C | ||
| Forward Current | IF | 300 | 350 | mA | ||
| Reverse Voltage | VREV | 2 | V | |||
| Fiber Bending Radius | R | 35 | mm | |||
| Fiber Tensile Strength | F | 5 | N | |||
| Gain Bandwidth | BW | 50 | nm | |||
| Gain Peak Wavelength | λpeak | 1535 | nm | |||
| Peak Gain | Gpk | 23 | dB | |||
| Gain Ripple | ΔG | 0.5 | 1 | dB | ||
| 3 dB Saturation Output Power | P3dB | 10 | dBm | |||
| Polarization Dependent Gain | PDG | 1.5 | 2 | dB | ||
| Optical Noise Figure | NF | 9 | 10 | dB | ||
| Extinction Ratio (On/Off) | ER | 65 | dB | |||
| Forward Voltage | VF | 2.5 | V | |||
| Thermistor Resistance | R | 9.5 | 10 | 10.5 | kΩ | At 25°C |
| Cooler Current | Icool | 1.1 | 1.5 | A | ||
| Cooler Voltage | Vcool | 3.0 | 3.7 | V |
Download Product Spec Sheet:
