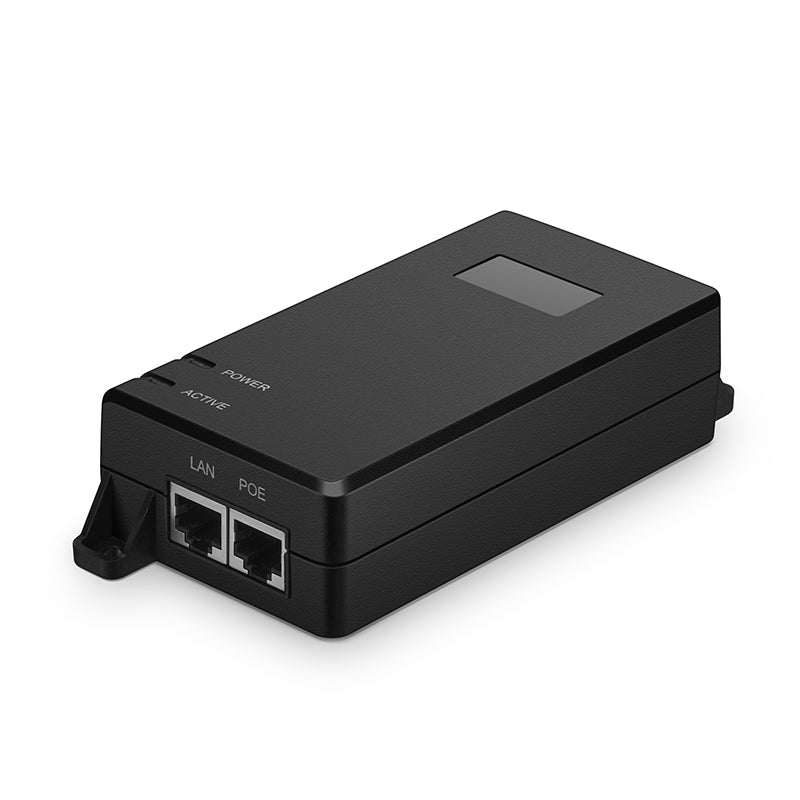

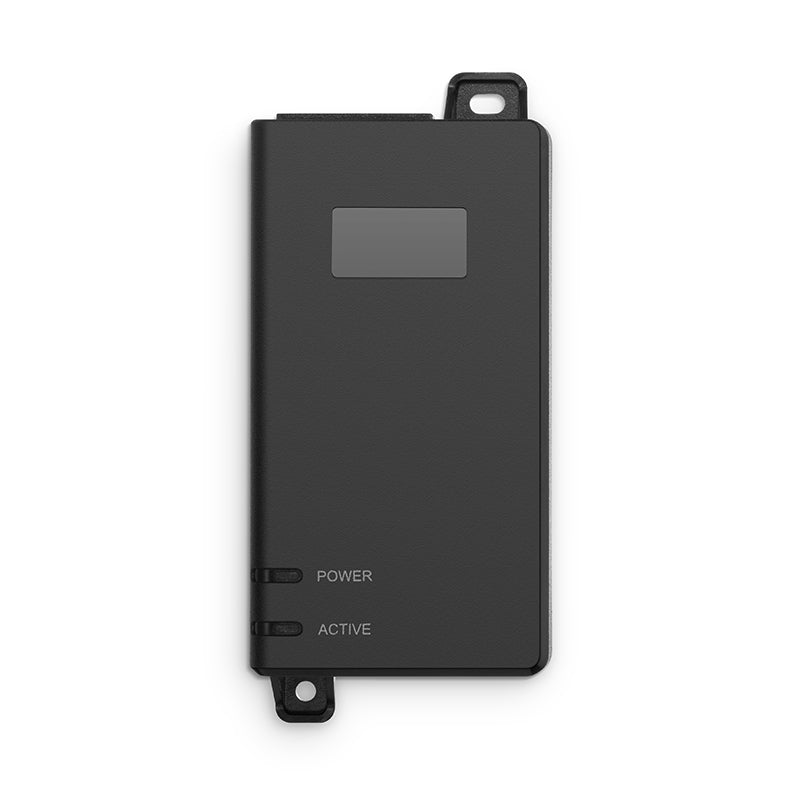

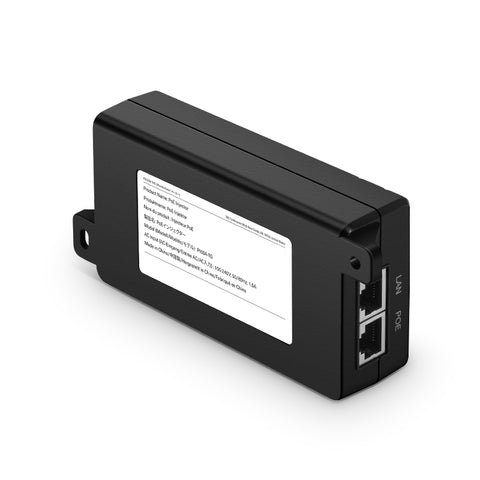

Single Port 1/2.5/5/10G Multi-Gigabit PoE++ Injector, PoE Port @ 60W

The Gigabit PoE Injector enables flexible PoE device installation when a PoE switch isn't an option. The PI60A-TG supports 100/1000Mbps/2.5G/5G/10GBase-T speeds, delivering a stable 55V DC output for 60W PoE PD devices like wireless APs, cameras, door locks, and POS systems.

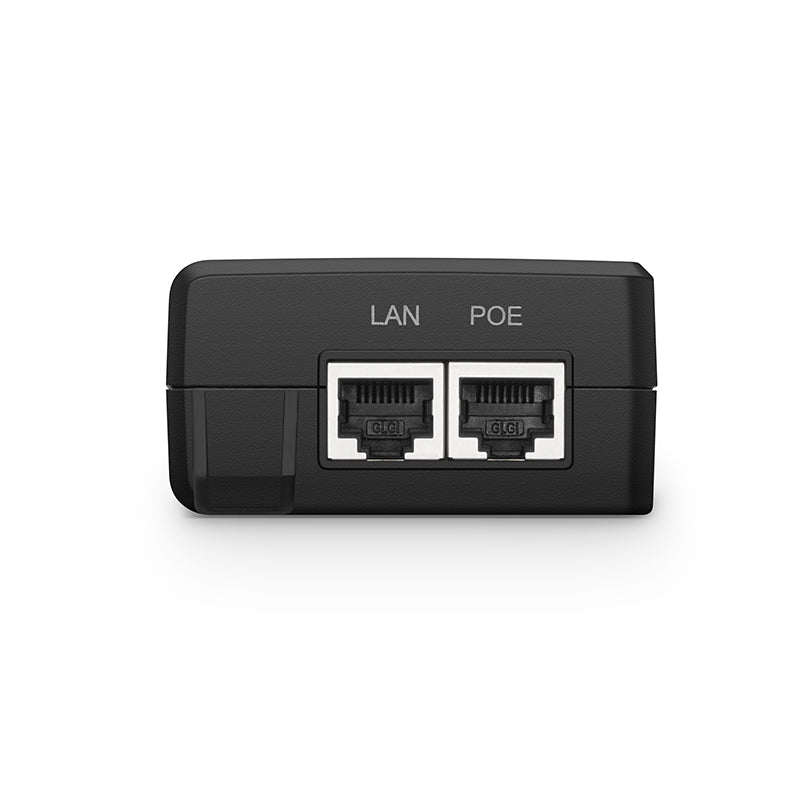

With dual RJ45 ports, it transmits data and power over a single Cat5e/Cat6, simplifying cabling for power-constrained environments. Compliant with IEEE 802.3af/at/bt, it features intelligent detection to ensure safe, compatible power delivery. Supporting up to 100m transmission, it provides an efficient and flexible networking solution.

Specifications

• Input RJ45 Ports: 10/100/1000M/2.5G/5G/10G Copper port (RJ-45)

• Output RJ45 Ports: 10/100/1000M/2.5/5/10G PoE Copper port (RJ-45)

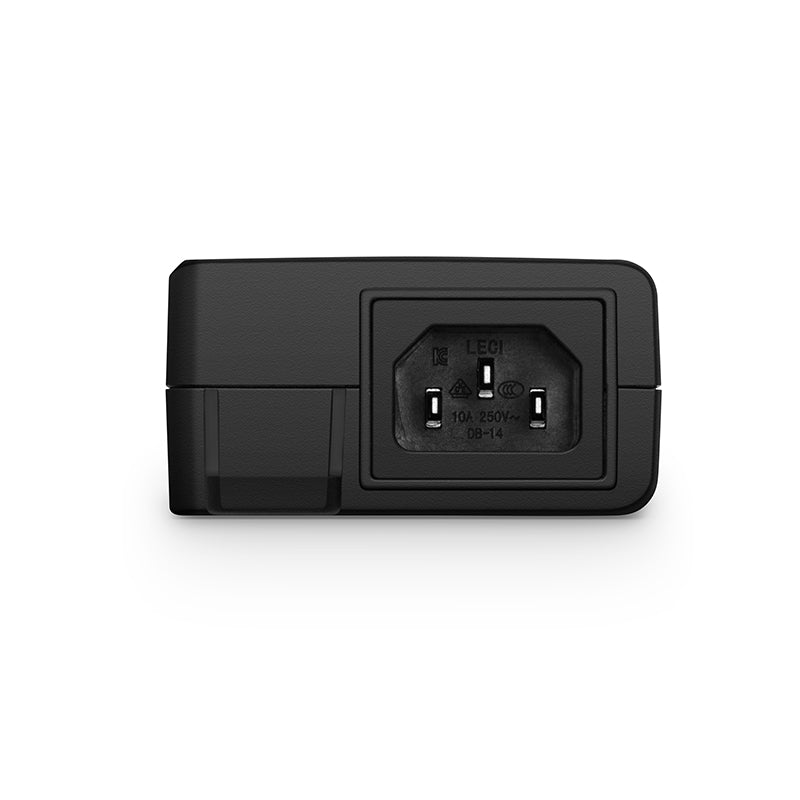

• Input Voltage: 110-240VAC, 50/60Hz, 1.5A Max

• Output Voltage: 55V DC

• PoE Port Power: 60W

• Total Power: 60W

• Network Cable: Cat5e/Cat6

• Data Transmission Distance: Up to 100m

• PoE Standards: IEEE 802.3af/at/bt

• Dimensions (Hx Wx D): 1.34''x2.59''x5.75'' (34x66x146mm)

• Operating Temperature: 0°C ~ 40°C

• Storage Temperature: -20°C ~ 70°C

• Operating Humidity: 20% to 80% (non-condensing)

• Storage Humidity: 10% to 90% (non-condensing)

PoE Applications

10G Multi-gig Ports Ensure Faster Connections
Both the 1/2.5/5/10G Multi-Gigabit input and output ports ensure reliable connections for all applications. The optimal design allows for easy and precise installation in tight spaces, such as structured wiring enclosures

Up to 60W, Auto Detect the Required Power
Compliant with IEEE 802.3bt PoE standard, it can deliver up to 60W power, with 100 meters distance, which is perfect for access point or IP cameras deployment.

Plug and Play
Reduces the need for extra outlets and extension cables and saves deployment costs and labor efforts as well.
