Single Port 10/100/1000M Gigabit PoE Injector, PoE Port @ 30W

The Gigabit Power over Ethernet Injector allows flexible installation of Wireless Access Points by providing an alternative to external DC power when deploying a Power over Ethernet (PoE) switch is not an option.

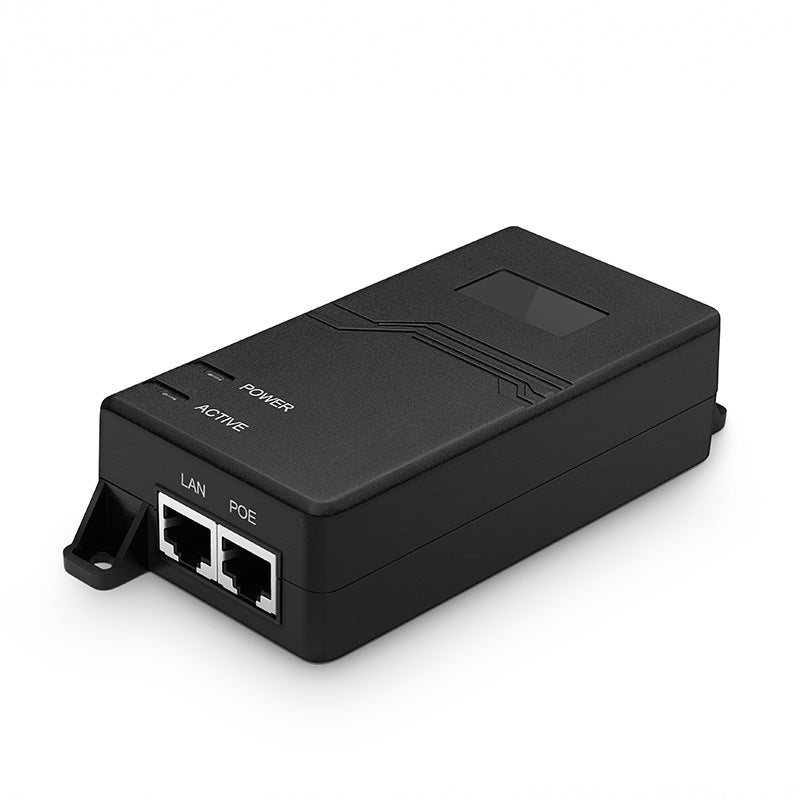

The PoE power injector has two RJ45 network interface connectors one RJ45 interface connects to a switch or a network device, and the other is used to transmit network data and supply power to the Power Sourcing Equipment (PSE).

By combining data and power over a single Cat5e or better cable, the injector can also be used to supply connectivity and power to other PoE endpoints such as IP phones and IP cameras, in order that makes it more flexible for the places difficult to connect to the power supply and provide with more efficient solutions.

Specifications

• Input RJ45 Ports: 10/100/1000 Mbps Copper port (RJ-45) Ethernet

• Output RJ45 Ports: 10/100/1000 Mbps PoE Copper port (RJ-45)

• Input Voltage: 110-240VAC, 50/60Hz, 0.75A Max

• Output Voltage: 53V DC

• PoE Port Power: 30W

• Network Cable: Cat 5e (or above) UTP

• Data Transmission Distance: Up to 100m

• MTBF: >100,000 hours @25°C

• Operating Temperature: 0°C ~ 45°C

• Storage Temperature: -30°C ~ 85°C

• Operating Humidity: 5% to 90% (non-condensing)

• Storage Humidity: 5% to 90% (non-condensing)

• Dimensions (Hx Wx D): 2.01''x3.46''x6.53'' (51.3 x87.9 x166mm )

• PoE Standards: IEEE 802.3af/at

Single Port 10/100/1000M Gigabit PoE Injector
Compact, optimal design makes it easily and precisely installed in tight spots like structured wiring enclosures, etc.
