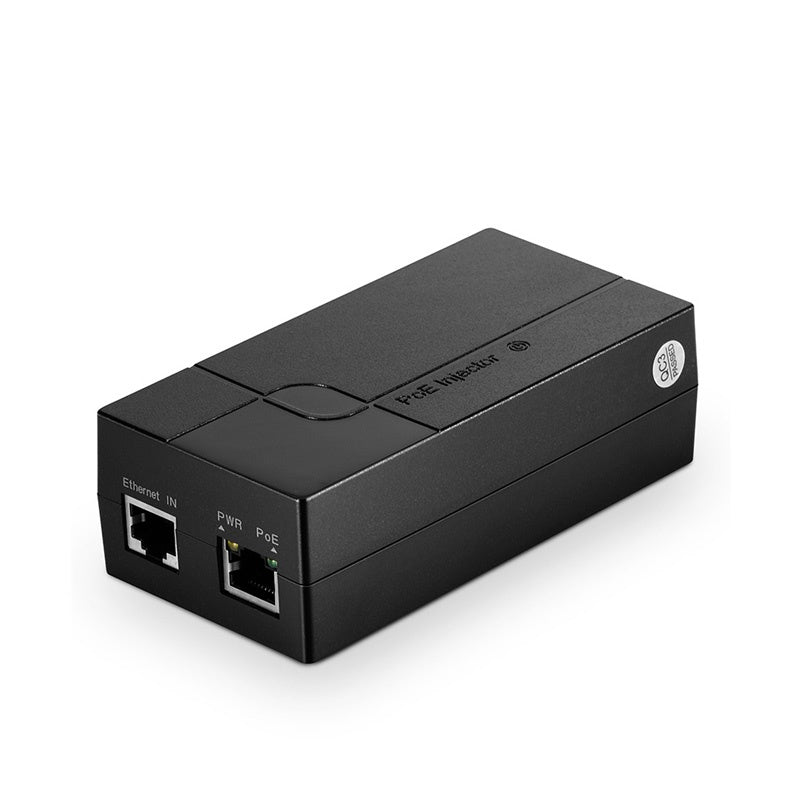

Single Port 10/100/1000M Gigabit PoE Injector, PoE Port @ 35W

This Single Port PoE injector is developed with a Microsemi MP3924 main chip, which can provide a simple, economical, high-performance and intelligent way for Ethernet PoE power supply and data communication.

This mid-span PoE injector has 1x 2 standard RJ45 network ports: one network port will be used for upper Ethernet switches or other network devices and the other network port will support PoE power supply output with network data output.

They can supply power to HD webcam through Cat5 Ethernet cable, which makes it more flexible for the places difficult to connect to power supply, and provide more efficient solutions.

Specifications

• Input RJ45 Ports: 1x 10/100/1000Mbps Ethernet

• Output RJ45 Ports: 1x 10/100/1000Mbps PoE

• Input Voltage: 100-240VAC, 50-60Hz, 0.56A Max

• Output Voltage: 52VDC, 0.58A Max

• PoE Port Power: 30W

• Total Power: 35W

• Network Cable: Cat5e (or above) UTP

• Data Transmission Distance: Up to 100m

• Operating Temperature: -4ºF to131ºF (-20°C to 55°C)

• Storage Temperature: -4ºF to 167ºF (-20°C to 75°C)

• Working Humidity: 10%-90%, non-condensing

• Storage Humidity: 10%-95%, non-condensing

• Dimensions (Hx Wx D): 1.5''x2.4''x4.6'' (38x60x118mm)

• PoE Standards: IEEE 802.3af/at

PoE Applications

Gigabit Ports Ensure Faster Connections
Both the gigabit 10/100/1000 input and output port ensure faster, more reliable connections for all applications.

Power Supply and Transmission Distance
Compliant with IEEE 802.3at PoE standard, it can deliver up to 30W power,
with 100 meters distance, which is perfect for IP cameras or access point deployment.

Plug and Play
Reduces the need for extra outlets and extension cables and saves deployment cost and
labor efforts as well.
