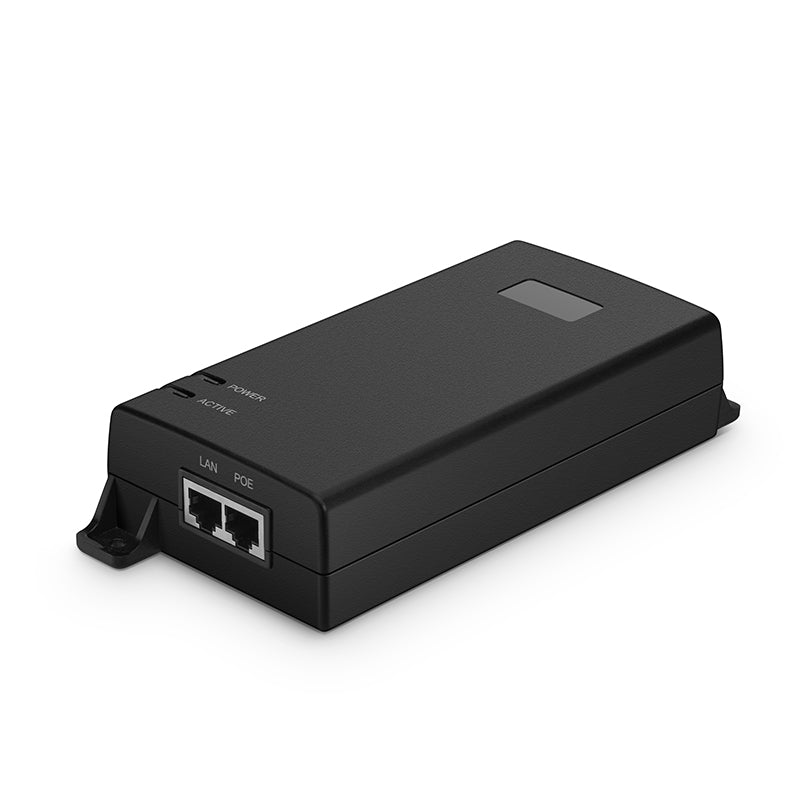

Single Port 10/100/1000M Gigabit PoE++ Injector, PoE Port @ 60W

The Gigabit PoE Injector enables flexible PoE device installation when a PoE switch isn't an option. The PI60A-G supports 10/100/1000Mbps speeds, delivering a stable 55V DC output for 60W PoE PD devices like wireless APs, cameras, door locks, and POS systems.

With dual RJ45 ports, it transmits data and power over a single Cat5e/Cat6, simplifying cabling for power-constrained environments. Compliant with IEEE 802.3af/at/bt, it features intelligent detection to ensure safe, compatible power delivery. Supporting up to 100m transmission, it provides an efficient and flexible networking solution.

Specifications

• Input RJ45 Ports: 10/100/1000M Copper port (RJ-45)

• Output RJ45 Ports: 10/100/1000M PoE Copper port (RJ-45)

• Input Voltage: 110-240VAC, 50/60Hz, 1.5A Max

• Output Voltage: 55V DC

• PoE Port Power: 60W

• Total Power: 60W

• Network Cable: Cat5e/Cat6

• Data Transmission Distance: Up to 100m

• PoE Standards: IEEE 802.3af/at/bt

• Dimensions (Hx Wx D): 1.61''x3.35''x7.59'' (41x85x193mm)

• Operating Temperature: 0°C ~ 40°C

• Storage Temperature: -20°C ~ 70°C

• Operating Humidity: 20% to 80% (non-condensing)

• Storage Humidity: 10% to 90% (non-condensing)

Product Highlights

• 2x Gigabit Ports Ensure Fast Transmission

• Complies with IEEE802.3af/at/bt Standards, Delivers up to 60W

• Simplifies Wiring by Transmitting Data and Power via an Ethernet Cable

• Plug & Play Installation, Requires No Configuration

• Surge, Peak Pulse, and Overcurrent Protection

• Automatic Detection and Protection of Non–standard Ethernet Terminals

• Featuring Auto-sensing Technology, Supplies the Exact Power Required

• Network a PoE Device Located up to 100 Meters (328 ft.) Away

PoE Applications

Gigabit Ports Ensure Fast Connections
Both the 10/100/1000M input and output ports ensure reliable connections for all applications. The optimal design allows for easy and precise installation in tight spaces, such as structured wiring enclosures.

Up to 60W, Auto Detect the Required Power
Compliant with IEEE 802.3bt PoE standard, it can deliver up to 60W power, with 100 meters distance, which is perfect for access point or IP cameras deployment.

Plug and Play
Reduces the need for extra outlets and extension cables and saves deployment costs and labor efforts as well.
