Armordillo SC UPC Singlemode Splice-On Connectors provide fast, accurate, and reliable terminations with factory-prepared ferrules and 900µm cleaved fiber stubs for minimal insertion loss and superior return loss performance.

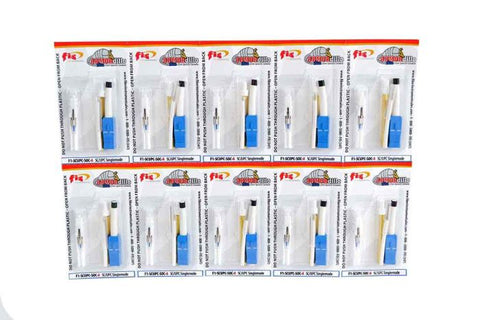

The protective boot conceals and safeguards the splice, while the extended brass crimp sleeve and Kevlar engagement deliver maximum pull strength and long-term durability. Supplied in a 10-pack white blister, these connectors are ideal for professional singlemode UPC installations.

Download Product Spec Sheet (PDF)

Key Benefits

• High-performance singlemode UPC terminations with minimal insertion loss

• Factory-prepared ferrule and cleaved stub for fast, precise splicing

• Protective boot conceals splice for long-term reliability and easy cable management

• Brass crimp sleeve and Kevlar engagement maximize strength and durability

• Compatible with most fusion splicers (cordage fiber holders & Universal SOC Oven required)

• Convenient 10-pack blister for installers

Specifications

• SKU: F1SCUPCSOCA10

• Fiber Type: Singlemode (UPC)

• Connector Style: SC

• Return Loss: APC > 60 dB, UPC > 55 dB, MM 35 dB (typical)

• Boot Sizes: 3mm, 2mm, 1.6mm

• Pack Size: 10
