Armordillo LC Multimode 50µm OM4 Splice-On Connectors provide fast, reliable, and low-loss terminations with factory-prepared ferrules and 900µm cleaved fiber stubs for precise alignment and superior performance.

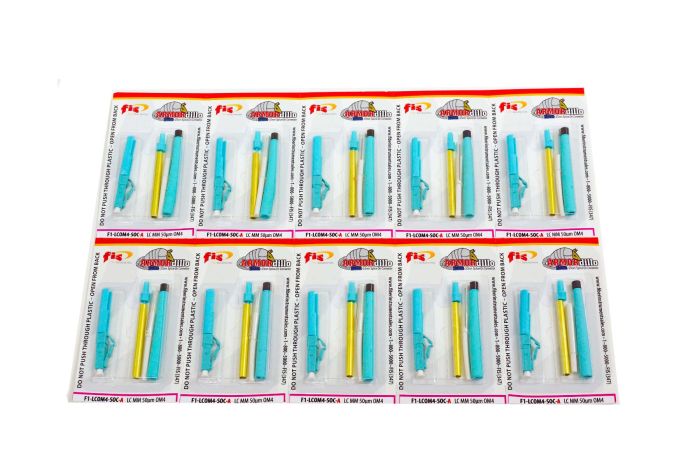

A protective boot fully conceals and safeguards the splice, while the extended brass crimp sleeve and Kevlar engagement deliver maximum pull strength and long-term durability. Supplied in a 10-pack aqua blister, these connectors are ideal for professional OM4 multimode installations.

Download Product Spec Sheet (PDF)

Key Benefits

• High-performance OM4 multimode fiber terminations with minimal insertion loss

• Factory-prepared ferrule and cleaved stub for quick, accurate splicing

• Protective boot conceals splice for enhanced reliability and easy cable management

• Brass crimp sleeve and Kevlar engagement maximize durability and pull strength

• Compatible with most fusion splicers (cordage fiber holders & Universal SOC Oven required)

• Convenient 10-pack blister for installers

Specifications

• SKU: F1LCOM4ASOCA10

• Fiber Type: Multimode 50µm OM4

• Connector Style: LC

• Return Loss: APC > 60 dB, UPC > 55 dB, MM 35 dB (typical)

• Boot Sizes: 3mm, 2mm, 1.6mm

• Pack Size: 10
