Overview

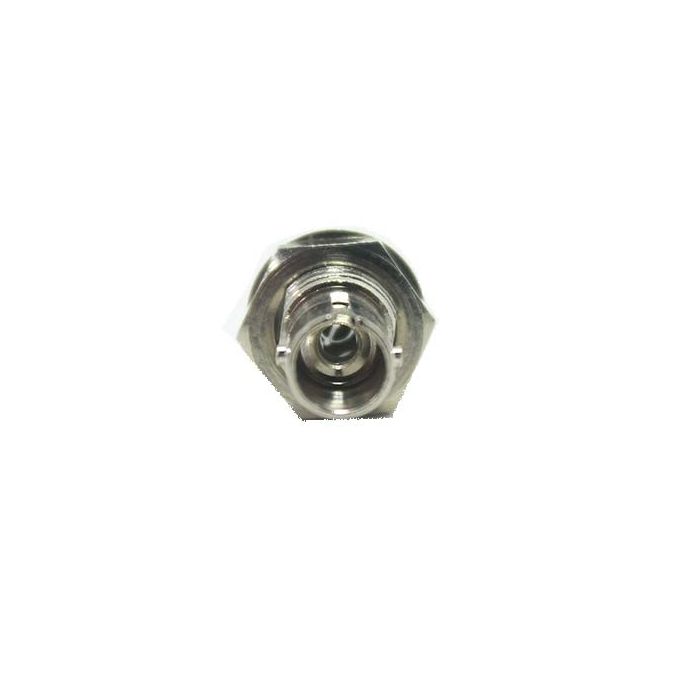

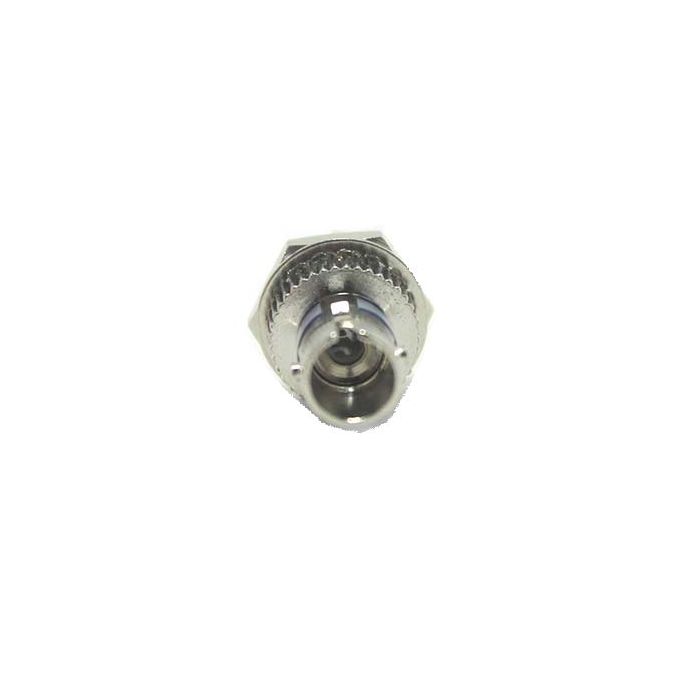

The ST Bulkhead Female-Female Attenuator is a precision optical component designed to reduce the power level of fiber optic signals within a network. By utilizing a wavelength-sensitive neutral density filter, this device ensures controlled signal attenuation at the 1310nm operating wavelength.
This bulkhead-style attenuator is designed for use in panel-mount or patch-panel environments, featuring a female-to-female interface that allows for quick and secure integration between two existing ST connectorized cables. Its robust construction makes it suitable for standard data center, telecommunications, and enterprise network installations.
Key Features
-
Wavelength-Sensitive Filtering
Uses a neutral density filter at 1310nm for consistent signal reduction. -
Female-to-Female Interface
Enables direct interconnection between two ST-terminated fiber cables. -
Bulkhead Mounting
Designed for installation in standard rack mount or wall mount enclosures. -
ST Compatibility
Fully compatible with standard ST fiber optic connector systems. -
Precise Attenuation
Provides a fixed 10dB attenuation level to manage signal power budgets. -
Compact Design
Small footprint minimizes space consumption in high-density patch panels.
Applications
- Telecommunications network power management
- Data center signal balancing
- Fiber optic test and measurement setups
- Enterprise LAN/WAN installations
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18122S10C |
| Connector Type | ST Female to Female |
| Operating Wavelength | 1310nm |
| Attenuation Value | 10dB |
| Mounting Style | No Flange |
Frequently Asked Questions
What is the primary function of this attenuator?
It is used to reduce the optical signal strength by 10dB to prevent receiver saturation in fiber optic links.
What type of connectors does this device support?
This device is equipped with ST-style female ports on both ends.
Does this unit have a mounting flange?
No, this model is the 'No Flange' version.
What is the specific operating wavelength?
This attenuator is optimized for operation at 1310nm.
How does this attenuator achieve signal reduction?
It utilizes a wavelength-sensitive neutral density filter to attenuate the optical signal.
