T-146-200 - High Precision Micrometer Head, Range 0-10mm, 5µm/Division

T-146-200 - High Precision Micrometer Head, Range 0-10mm, 5µm/Division

• Range: 0 - 10 mm
• 5 µm per Division
• Sensitivity: Better than 1 µm
• Standard Ø3/8" Barrel Diameter
• 250 µm per Revolution

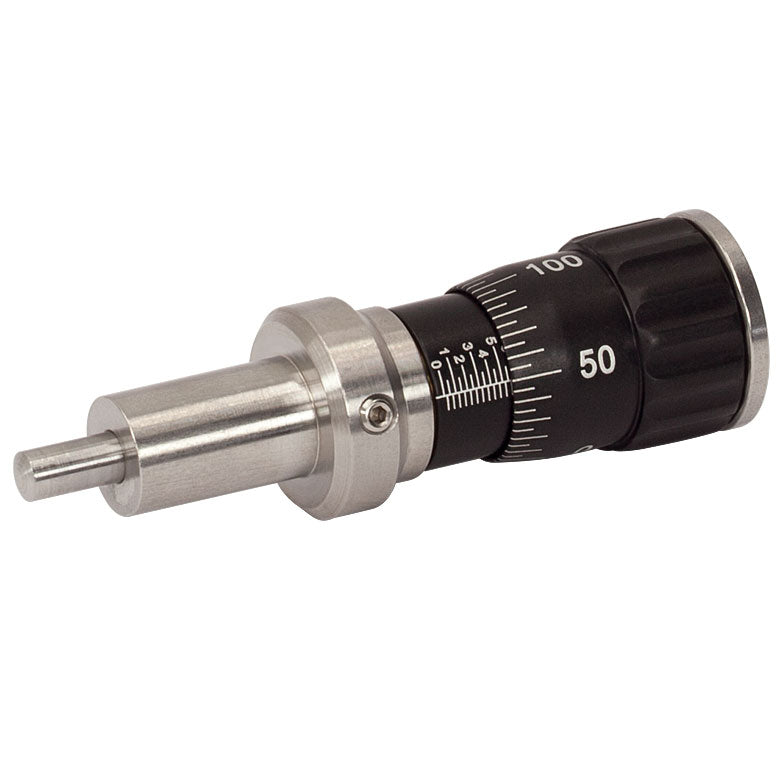

The T-146-200 is a high precision micrometer head that utilizes a lockable 250 µm pitch leadscrew.

The graduated dial and linear scale on the micrometer barrel provide a calibrated readout of displacement.

A spherical tip is provided to ensure a single point of contact between the adjuster and the mating surface.
