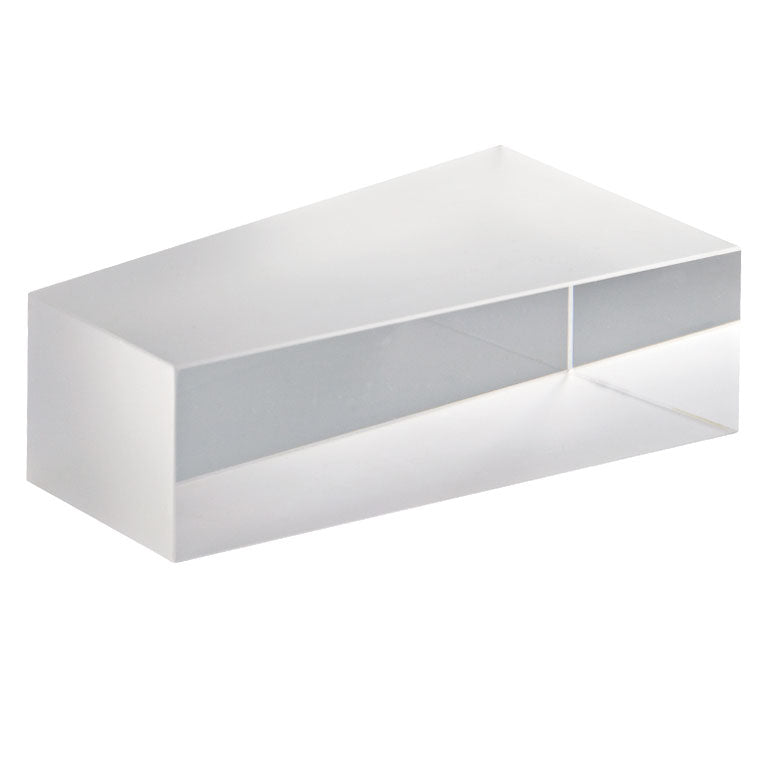

T-ADBU-10 - Pellin Broca Prism, 10 mm Square Aperture, UV Fused Silica
T-ADBU-10 - Pellin Broca Prism, 10 mm Square Aperture, UV Fused Silica
T-ADBU-10 - Pellin Broca Prism, 10 mm Square Aperture, UV Fused Silica
Roll over image to zoom in Click on image to zoom
T-ADBU-10 - Pellin Broca Prism, 10 mm Square Aperture, UV Fused SilicaT-ADBU-10 - Pellin Broca Prism, 10 mm Square Aperture, UV Fused SilicaT-ADBU-10 - Pellin Broca Prism, 10 mm Square Aperture, UV Fused Silica

T-ADBU-10 - Pellin Broca Prism, 10 mm Square Aperture, UV Fused Silica

Fosco ConnectSKU: T-ADBU-10
Price:
$ 220.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-ADBU-10 - Pellin Broca Prism, 10 mm Square Aperture, UV Fused Silica

Product Drawing

  • Ideal for Wavelength Seperation of a Beam of Light
  • Selected Wavelength Deviated by 90°
Item # Design Spectrum
λlow to λhigh 		Angular Separation Between
λlow & λhigh 		Brewster's Angle θB
for λlow to λhigh 		Distance D
(Rotation Point)		 Aperture
(Square)
T-ADBU-10 190 - 425 nm 11.47° 55.7° - 57.4° 16.1 mm 10 mm



Item # A B H Φ
T-ADB-10 19.0 mm 33.0 mm 11.0 mm 78° 26'
T-ADB-20 38.0 mm 66.0 mm 22.0 mm 78° 26'
T-ADBU-10 19.0 mm 33.0 mm 11.0 mm 78° 26'
T-ADBU-20 38.0 mm 66.0 mm 22.0 mm 78° 26'
T-ADBV-10 19.0 mm 33.0 mm 11.0 mm 78° 26'
