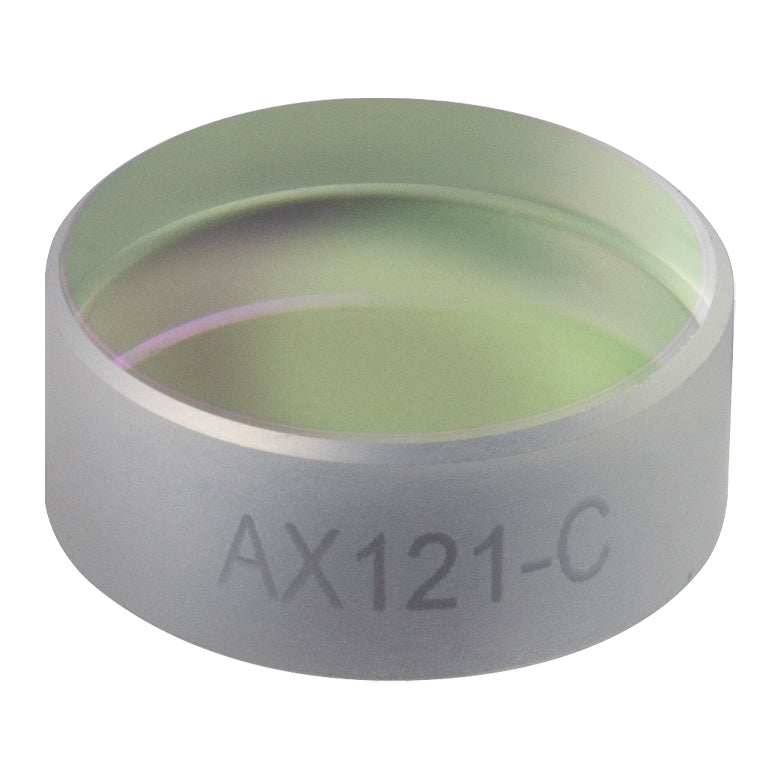

T-AX121-C - 1.0°, 1050 - 1700 nm AR Coated UVFS, Ø1/2" (Ø12.7 mm) Axicon

T-AX121-C - 1.0°, 1050 - 1700 nm AR Coated UVFS, Ø1/2" (Ø12.7 mm) Axicon

Product Drawing

These axicons are AR coated for the 1050 - 1700 nm range, which makes them great for applications into the near IR (NIR). This covers common wavelengths used in applications such as: optical coherence tomography (OCT), optical trapping, and laser drilling. In these applications, an axicon can increase the depth of focus in the sample arm.

Diameter Ø1/2" (Ø12.7 mm)

Physical Angle (α) 1.0°

Deflection Angle (β) 0.4°

Center Thickness (t_c) 5.1 mm

AR Coating 1050 - 1700 nm R_avg<0.5%

AR Coating Plot

Reference Drawing
