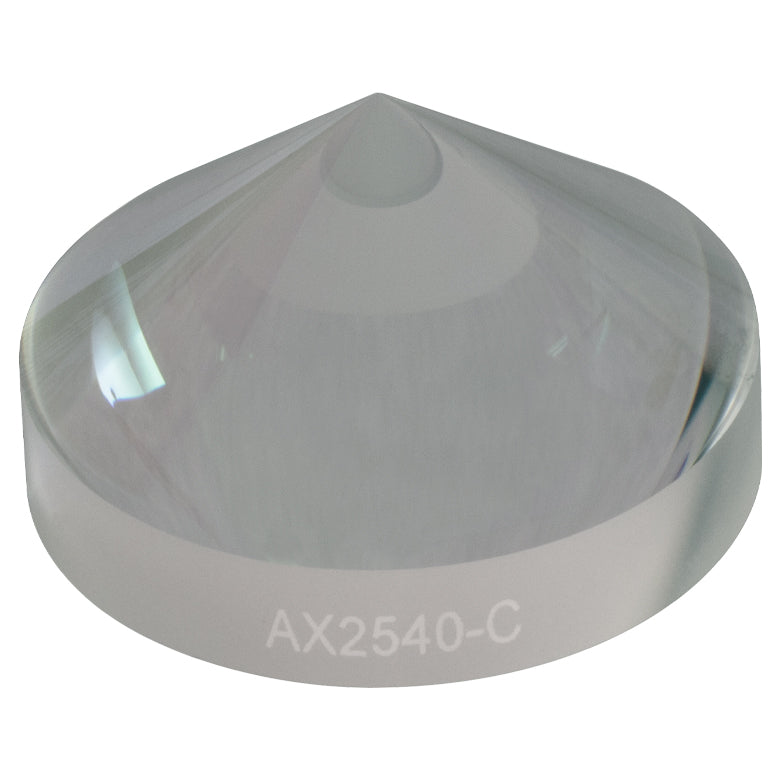

T-AX2540-C - 40.0°, 1050 - 1700 nm AR Coated UVFS, Ø1" (Ø25.4 mm) Axicon
T-AX2540-C - 40.0°, 1050 - 1700 nm AR Coated UVFS, Ø1" (Ø25.4 mm) Axicon
T-AX2540-C - 40.0°, 1050 - 1700 nm AR Coated UVFS, Ø1" (Ø25.4 mm) Axicon
Roll over image to zoom in Click on image to zoom
T-AX2540-C - 40.0°, 1050 - 1700 nm AR Coated UVFS, Ø1" (Ø25.4 mm) AxiconT-AX2540-C - 40.0°, 1050 - 1700 nm AR Coated UVFS, Ø1" (Ø25.4 mm) AxiconT-AX2540-C - 40.0°, 1050 - 1700 nm AR Coated UVFS, Ø1" (Ø25.4 mm) Axicon

T-AX2540-C - 40.0°, 1050 - 1700 nm AR Coated UVFS, Ø1" (Ø25.4 mm) Axicon

Fosco ConnectSKU: T-AX2540-C
Price:
$ 860.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-AX2540-C - 40.0°, 1050 - 1700 nm AR Coated UVFS, Ø1" (Ø25.4 mm) Axicon

Product Drawing

These axicons are AR coated for the 1050 - 1700 nm range, which makes them great for applications into the near IR (NIR). This covers common wavelengths used in applications such as: optical coherence tomography (OCT), optical trapping, and laser drilling. In these applications, an axicon can increase the depth of focus in the sample arm.

Diameter 40.0°

Deflection Angle (β)  28.4°

Center Thickness (tc) 15.7 mm

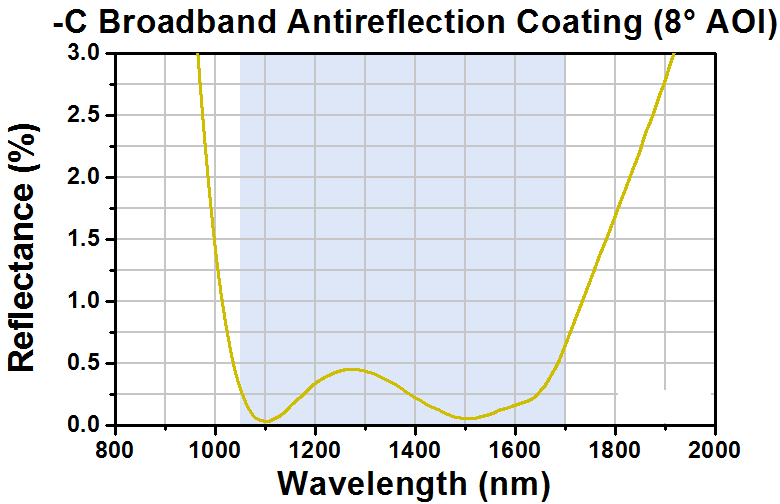

AR Coating  1050 - 1700 nm Ravg<0.5%
