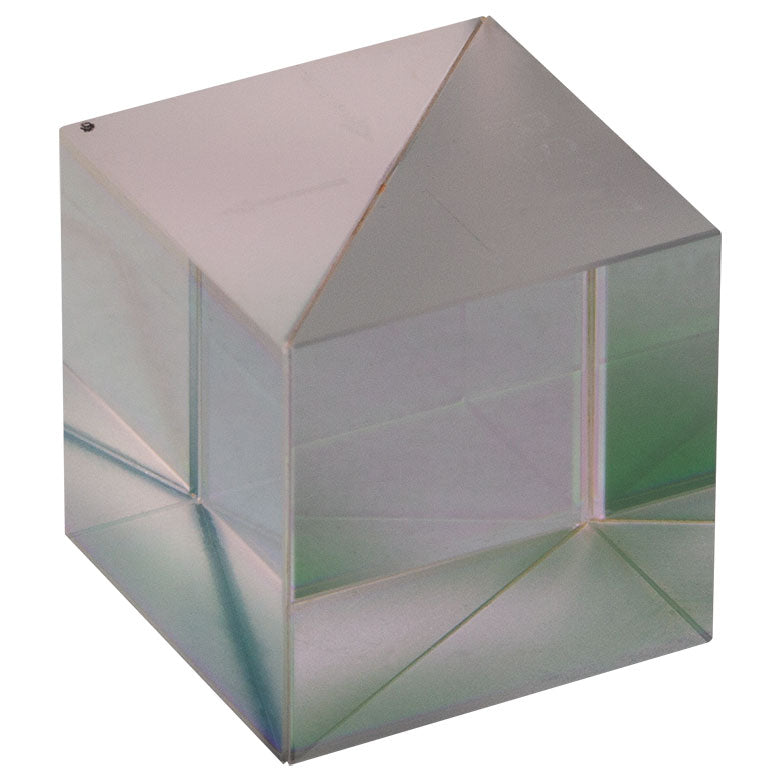

T-BS077 - 90:10 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 20 mm
T-BS077 - 90:10 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 20 mm
T-BS077 - 90:10 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 20 mm
Roll over image to zoom in Click on image to zoom
T-BS077 - 90:10 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 20 mmT-BS077 - 90:10 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 20 mmT-BS077 - 90:10 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 20 mm

T-BS077 - 90:10 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 20 mm

Fosco ConnectSKU: T-BS077
Price:
$ 350.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-BS077 - 90:10 (R:T) Non-Polarizing Beamsplitter Cube, 700 - 1100 nm, 20 mm

Product Drawing

Item # T-BS077
Cube Side Length 20 mm
Clear Aperture >16.0 x 16.0 mm
Transmitted Wavefront Error
 <λ/4
Transmitted Beam Deviation 0° ± 5 arcmin

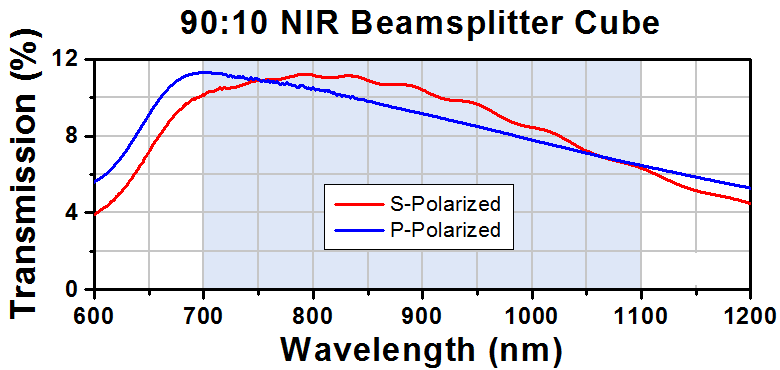

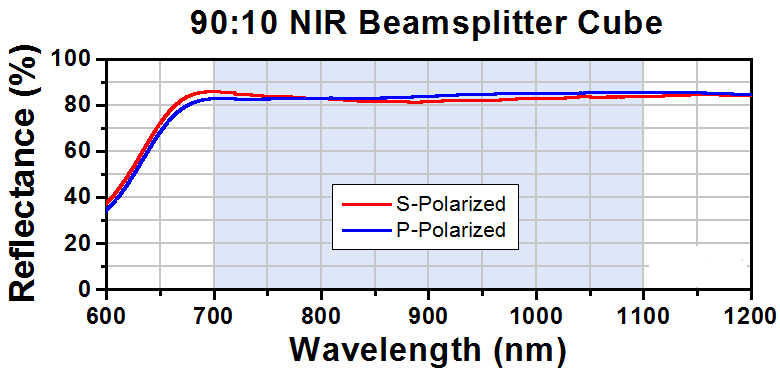

Overall Performance Tabs = 7 +10/-5%, Rabs = 87 ± 10%, and Tabs + Rabs > 85%,
|Ts - Tp| < 10% and |Rs - Rp| < 10%
