T-BW25M - Brewster Window Mount, 25 mm Minor Axis Length, 2 mm Thick Optic
T-BW25M - Brewster Window Mount, 25 mm Minor Axis Length, 2 mm Thick Optic
Roll over image to zoom in Click on image to zoom
T-BW25M - Brewster Window Mount, 25 mm Minor Axis Length, 2 mm Thick OpticT-BW25M - Brewster Window Mount, 25 mm Minor Axis Length, 2 mm Thick Optic

T-BW25M - Brewster Window Mount, 25 mm Minor Axis Length, 2 mm Thick Optic

Fosco ConnectSKU: BW25M
Price:
$ 158.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-BW25M - Brewster Window Mount, 25 mm Minor Axis Length, 2 mm Thick Optic

Product Drawing

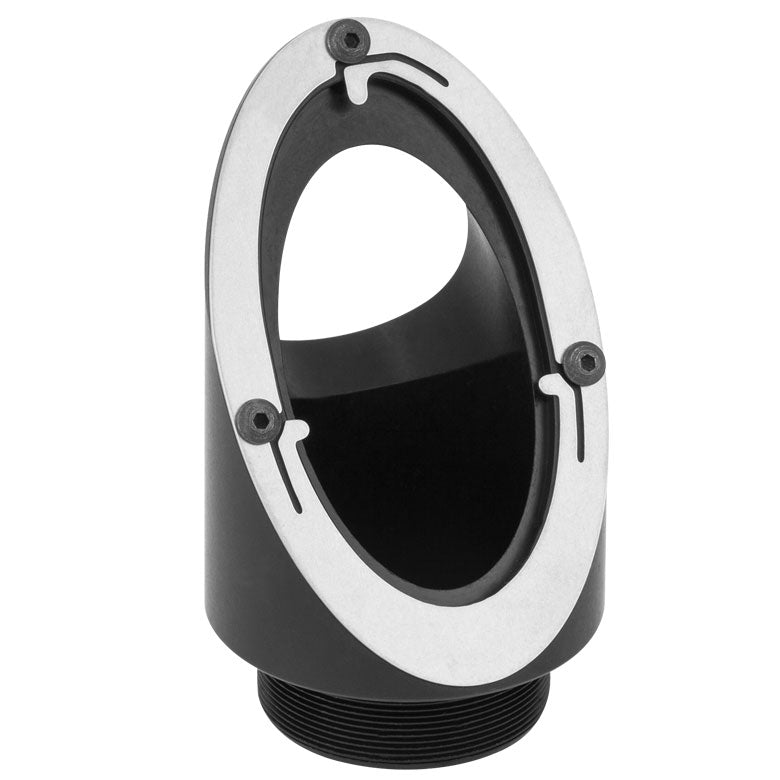

These Brewster Window Optic Mounts are designed with steel flexure retention plates for holding the optics in place.

The mounts feature a separate mounting surface for compatibility with Ø1/2" or Ø1" smooth bore mounts or internally SM1-threaded components.

The exit port for the reflected S-polarized light allows the mount to be used in either direction.

Mounting Surface External SM1

Minor Diameter 25 mm

Thickness 2 mm

Brewster Window Item # T-BW2502
