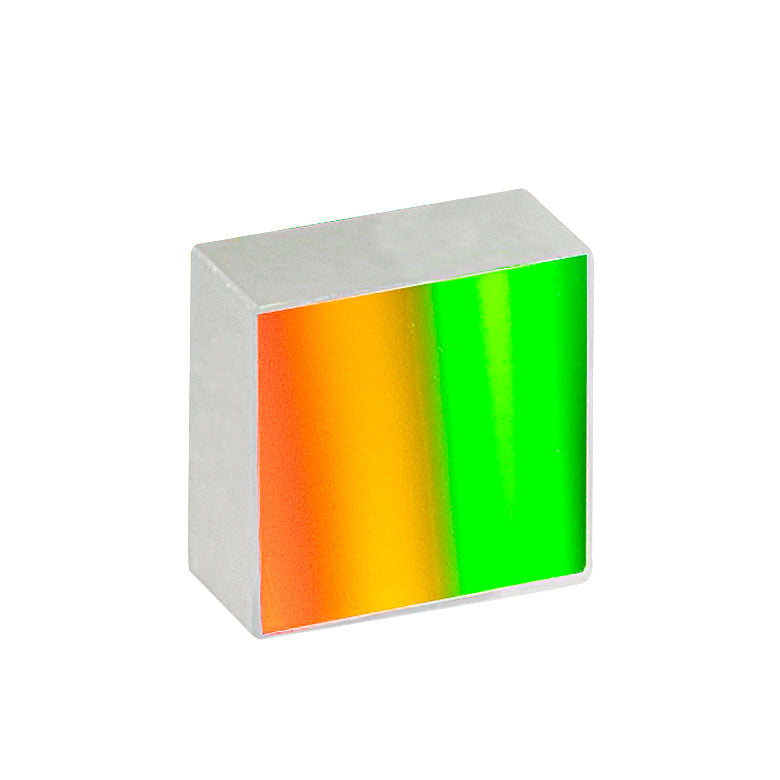

T-GR13-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 12.7 x 12.7 x 6 mm
T-GR13-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 12.7 x 12.7 x 6 mm
T-GR13-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 12.7 x 12.7 x 6 mm
T-GR13-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 12.7 x 12.7 x 6 mm
Roll over image to zoom in Click on image to zoom
T-GR13-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 12.7 x 12.7 x 6 mmT-GR13-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 12.7 x 12.7 x 6 mmT-GR13-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 12.7 x 12.7 x 6 mmT-GR13-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 12.7 x 12.7 x 6 mm

T-GR13-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 12.7 x 12.7 x 6 mm

Fosco ConnectSKU: T-GR13-0310
Price:
$ 125.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-GR13-0310 - Ruled Reflective Diffraction Grating, 300/mm, 1 µm Blaze, 12.7 x 12.7 x 6 mm

Product Drawing

  • Blaze Wavelengths from 750 to 1600 nm

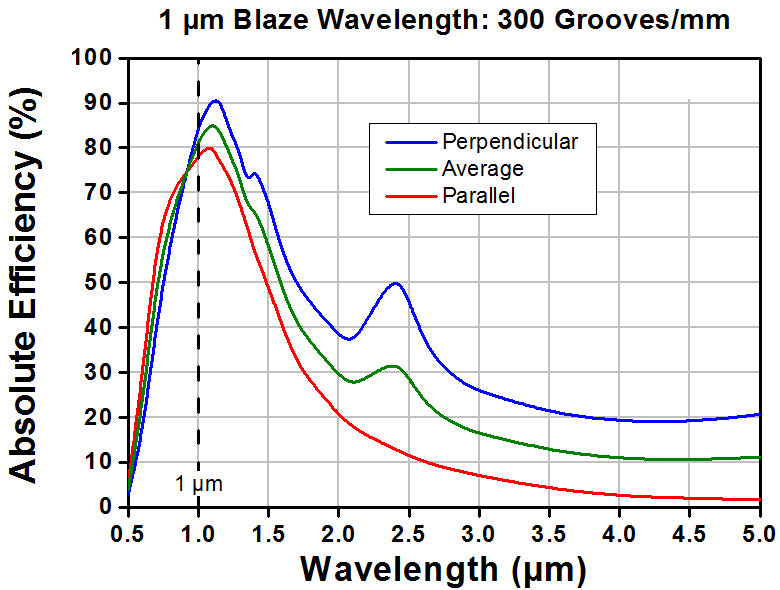

  • High Grating Efficiency of 60 to 80% at Blaze Wavelength
  • Low Ghosting, <0.5% of Parent Line
  • Aluminum Reflective Coating
  • Soda Lime Glass Substrate with 300 to 1200 Grooves/mm
  • Produced from Ruled Original
  • Dimensions (W x H x D) 12.7 mm x 12.7 mm x 6 mm
  • Blaze Wavelength 1 µm
  • Grooves/mm 300

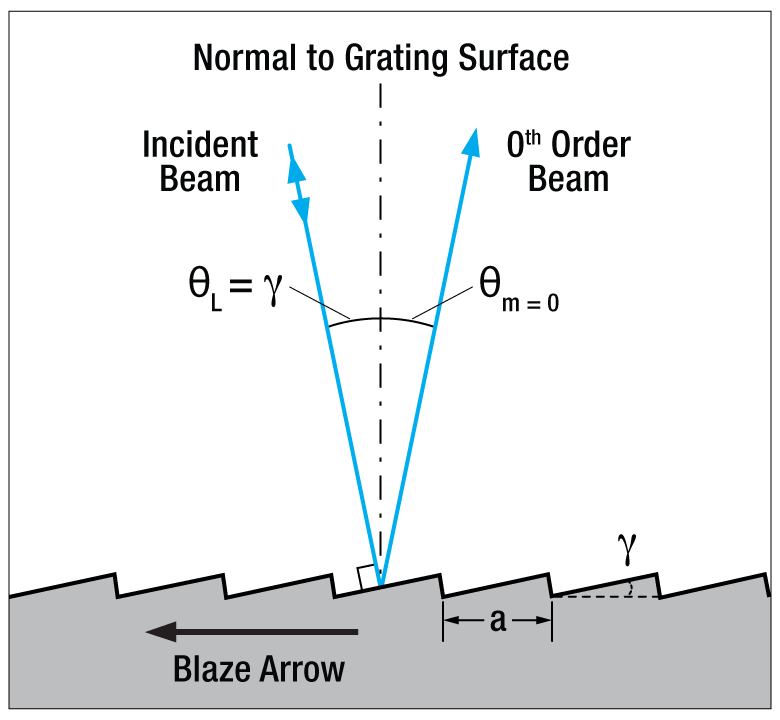

  • Blaze Angle 8° 36'
  • Dispersion 3.30 nm/mrad
