Fosco ConnectSKU: T-GRIN2308A
Price:
$ 80.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-GRIN2308A - GRIN Lens, Ø1.8 mm, 0.23 Pitch, 8°, 830 nm Design Wavelength, Uncoated

Product Drawing

  • Provides Collimation and Focusing of Fiber-Coupled Light

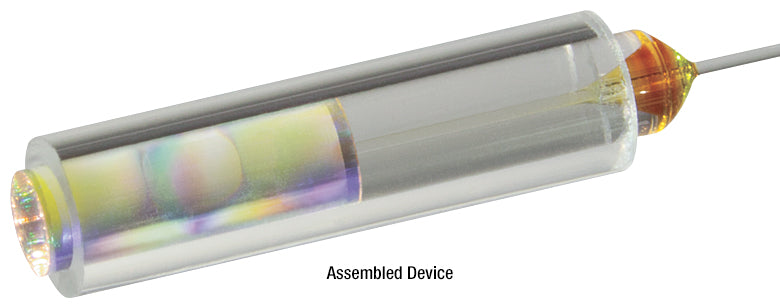

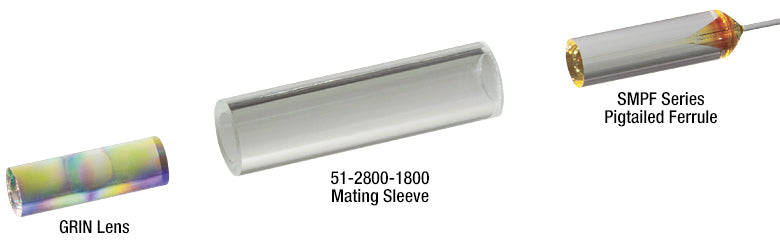

  • Designed for Easy Integration with Pigtailed Ferrules
  • 630, 1300, and 1560 nm Versions are AR Coated
  • 8° or 0° Face Angle
  • Ideal for Telecom Applications
  • Pitch (P) 0.23
  • Face Angle (θ) 8°
  • Design Wavelength 830 nm
  • Effective Focal Length 1.90 mm
  • Length (Z) 4.35 mm
  • Working Distance 0.239 mm
  • Index (n1) 1.5986
  • NA 0.46
  • √A (mm-1) 0.332
  • Diameter (D) 1.8 mm
Common Specifications
Transmittance >89%, 380 - 2000 nm
Polarization Preservation 0.99
Material Oxide Glass
Operating Temperature <350 °C
Item # Design Wavelength AR Coating Pitch Face Angle Effective Focal Length Working Distance
T-GRIN2306A 630 nm 630 nm 0.23 8° 1.85 mm 0.234 mm
T-GRIN2308A 830 nm N/A 1.90 mm 0.239 mm
