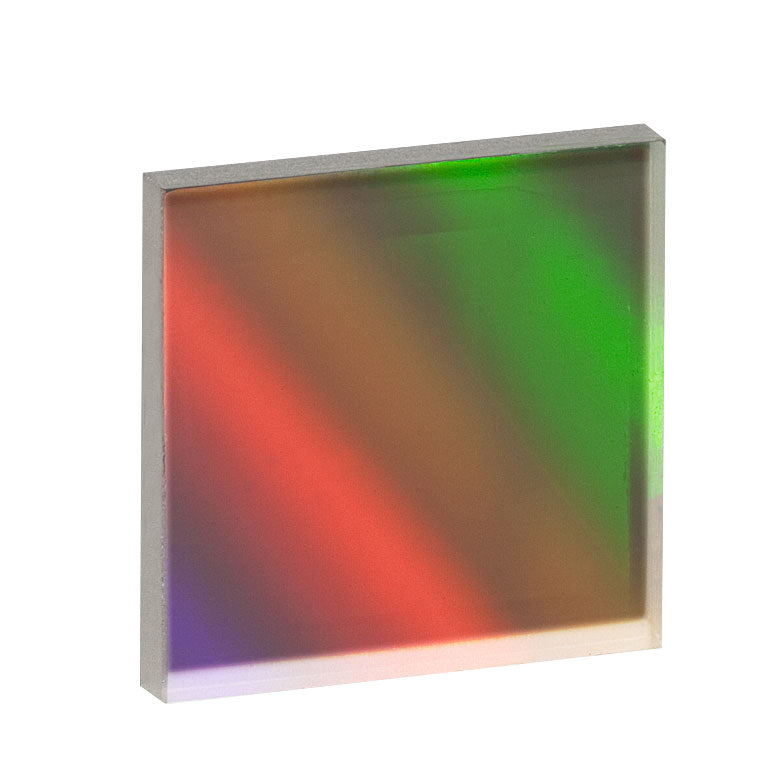

T-GT25-06V - Visible Transmission Grating, 600 Grooves/mm, 28.7° Groove Angle, 25 mm x 25 mm
T-GT25-06V - Visible Transmission Grating, 600 Grooves/mm, 28.7° Groove Angle, 25 mm x 25 mm
Roll over image to zoom in Click on image to zoom
T-GT25-06V - Visible Transmission Grating, 600 Grooves/mm, 28.7° Groove Angle, 25 mm x 25 mmT-GT25-06V - Visible Transmission Grating, 600 Grooves/mm, 28.7° Groove Angle, 25 mm x 25 mm

T-GT25-06V - Visible Transmission Grating, 600 Grooves/mm, 28.7° Groove Angle, 25 mm x 25 mm

Fosco ConnectSKU: T-GT25-06V
Price:
$ 198.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-GT25-06V - Visible Transmission Grating, 600 Grooves/mm, 28.7° Groove Angle, 25 mm x 25 mm

  • Optimum Performance in the Visible Spectrum
  • Ideal for Fixed Grating Applications such as Spectrographs
  • Schott B270 Substrate
  • Custom Sizes Available Upon Request
Common Specifications
Substrate
Material		 Schott B270
Thickness 3 mm Nominal
Dimensional
Tolerance		 ± 0.5 mm
Thickness
Tolerance		 ± 0.5 mm
