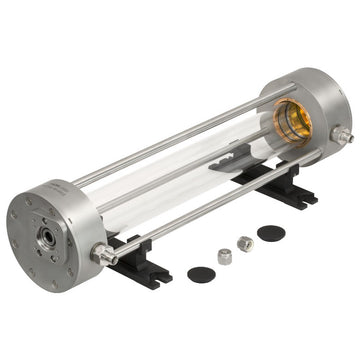

T-HC30L/M-M02 - Herriott Cell for Absorption Spectroscopy, OPL = 31.2 m, 6 mm OD Tube Fittings
T-HC30L-M-M02 - Herriott Cell for Absorption Spectroscopy, OPL = 31.2 m, 6 mm OD Tube Fittings
- Multipass Herriott-Type Cell Design Increases Absorption in Spectroscopic Measurements
- Ø2" Concave Mirrors Coated with Mid-Infrared Enhanced Gold
- Ø1/2" Calcium Fluoride Parallel Port Wedged Windows (User Replaceable)
- Each Cell is Individually Tested for Pressure and Leakage
- Operating Pressure Range: <10-4 Torr up to 2 atm
- Gas Interface: Ø1/4" or Ø6 mm Swagelok® Tube Fitting
- Gas Leakage Rate: <10-5 Torr·L/s
- Operating Wavelength 1.5 µm to ~10 µm
- Optical Path Length (OPL) 31.227 ± 0.020 m
- Internal Reflections 80
- Max Beam Diameter (1/e2) 1.3 mm
- Sample Volume ≈0.85 L
- Swagelok® Gas Interface 1/4" OD Tube Fittings
- Operating Temperature (Non-Condensing) 0 to 40 °C
- Recommended Operating Wavelength 1.5 µm to ~10 µm
- Optical Path Length 31.227 ± 0.020 m
- Number of Reflections Inside the Cell 80
- Max Input Beam Diameter (1/e2, Collimated) 1.3 mm
- Beam Angles of Incidence (Horizontal, Vertical) Engraved End: 4.2° H, 0° V Unengraved End: 4.1° H, 0.3° V
- Mirrors CM508-200-M02 Concave Mirrors with Custom Ø3 mm Hole
- Windows WW50530 Uncoated Calcium Fluoride Wedged Windows
- Supported Pressure <10-4 Torr - 2 atm (1520 Torr)
- Gas Leakage Rate <10-5 Torr·L/s
- Sample Volume ≈0.85 L
- Gas Interface 1/4" OD Tube Swagelok®
- Fitting Interface in Housing G1/4" Straight Thread
- Materials in Contact with Gas Sample Stainless Steel (1.4301), Aluminum, Calcium Fluoride,
Borosilicate Glass, UV Fused Silica, Gold with Protective Overcoat per
MIL-C-48497A, FKM (Viton), Torr Seal® Epoxy - Bake-Out Temperature 80 °C Max
- Operating Temperature 0 to 40 °C (Non-Condensing)
- Storage Temperature -20 to 80 °C
- Dimensions (LxWxH) 437.8 mm x 152.0 mm x 113.1 mm (17.24" x 6.00" x 4.45")
- Mass (Weight) 5.8 kg (12.8 lbs)
