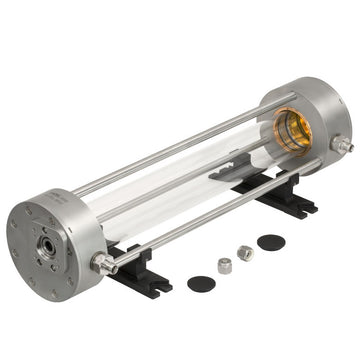

T-HC30L-M02 - Herriott Cell for Absorption Spectroscopy, OPL = 31.2 m, 1/4" OD Tube Fittings
T-HC30L-M02 - Herriott Cell for Absorption Spectroscopy, OPL = 31.2 m, 1/4" OD Tube Fittings
- Multipass Herriott-Type Cell Design Increases Absorption in Spectroscopic Measurements
- Ø2" Concave Mirrors Coated with Mid-Infrared Enhanced Gold
- Ø1/2" Calcium Fluoride Parallel Port Wedged Windows (User Replaceable)
- Each Cell is Individually Tested for Pressure and Leakage
- Operating Pressure Range: <10-4 Torr up to 2 atm
- Gas Interface: Ø1/4" or Ø6 mm Swagelok® Tube Fitting
- Gas Leakage Rate: <10-5 Torr·L/s
- Operating Wavelength 1.5 µm to ~10 µm
- Optical Path Length (OPL) 31.227 ± 0.020 m
- Internal Reflections 80
- Max Beam Diameter (1/e2) 1.3 mm
- Sample Volume ≈0.85 L
- Swagelok® Gas Interface 1/4" OD Tube Fittings
- Operating Temperature (Non-Condensing) 0 to 40 °C
