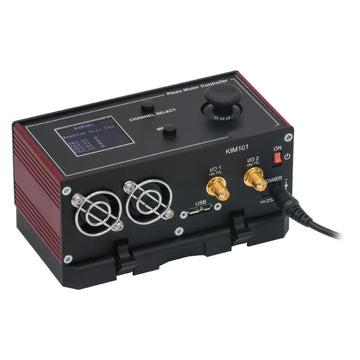

T-KIM101 - Four-Channel K-Cube Piezo Inertia Motor Controller (Power Supply Sold Separately)
T-KIM101 - Four-Channel K-Cube Piezo Inertia Motor Controller (Power Supply Sold Separately)
- Compact Footprints
- Adjustable Voltage Output from 85 V to 125 V
- Single-Channel and Four-Channel Versions Available
- Standalone Operation via Top Panel Controls and Display or PC Control via USB Plug and Play
Power Supply Options
The T-KIM001 and T-KIM101 Motor Controllers do not ship with a power supply.
| Key Specifications | ||
|---|---|---|
| Item # | T-KIM001 | T-KIM101 |
| Piezoelectric Outputs (SMC Male) | One | Four |
| Piezo Output Voltage | 85 to 125 VDC | 85 to 125 VDC per Channel |
| Top Panel Controls | Scroll Wheel | Dual-Axis Joystick |
| External Input (SMA Female) |
±10 V ± 2% | |
| Input Power | +15 VDC @ 2 A | |
| Housing Dimensions |
60.0 mm x 60.0 mm x 47.0 mm (2.36" x 2.36" x 1.85") |
121.0 mm x 60.0 mm x 47.0 mm (4.76" x 2.36" x 1.85") |
| Compatible Software | Kinesis | Kinesis & Legacy APT |
