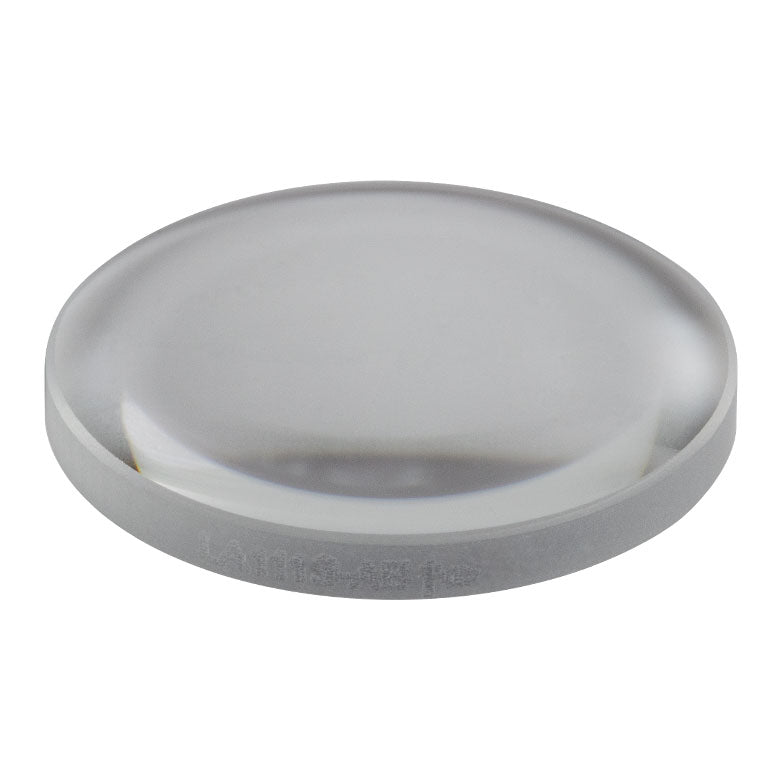

T-LA1119-AB - N-BK7 Plano-Convex Lens, Ø18 mm, f = 50 mm, AR Coating: 400 - 1100 nm
Roll over image to zoom in Click on image to zoom
T-LA1119-AB - N-BK7 Plano-Convex Lens, Ø18 mm, f = 50 mm, AR Coating: 400 - 1100 nm

T-LA1119-AB - N-BK7 Plano-Convex Lens, Ø18 mm, f = 50 mm, AR Coating: 400 - 1100 nm

Fosco ConnectSKU: T-LA1119-AB
Price:
$ 68.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-LA1119-AB - N-BK7 Plano-Convex Lens, Ø18 mm, f = 50 mm, AR Coating: 400 - 1100 nm

Product Drawing

  • Material: N-BK7
  • AR-Coated for the 400 - 1100 nm Range
  • Focal Lengths Available from 10 mm to 2500 mm
  • Diameter 18.0 mm
  • Focal Length (mm) 49.8
  • Diopter +20.1
  • Radius of Curvature (mm) 25.8
  • Center Thickness (mm) 3.4
  • Edge Thickness (mm) 1.8
  • Back Focal Length (mm) 47.6
  • Product Reference Drawing
