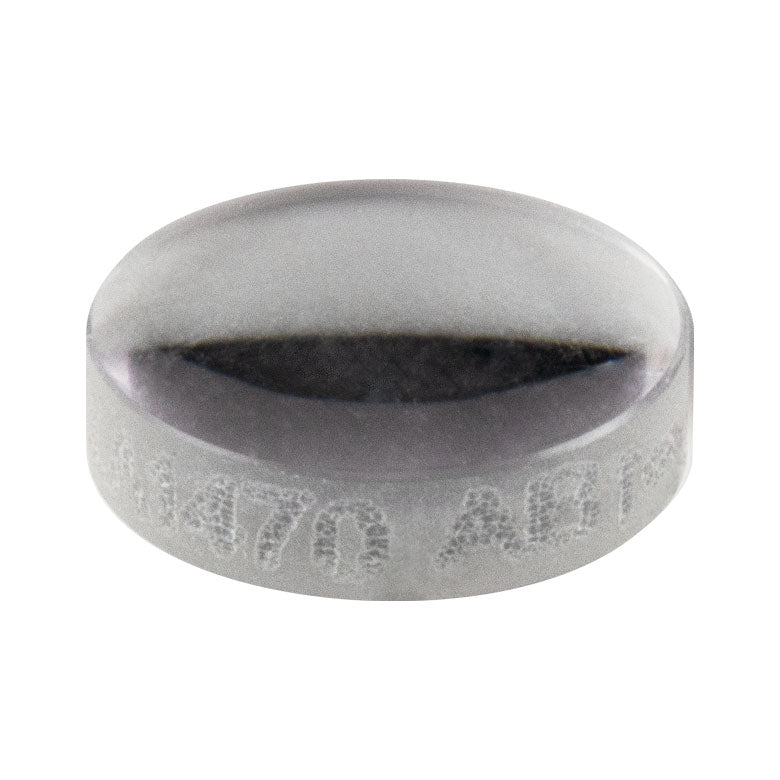

T-LA1470-AB - N-BK7 Plano-Convex Lens, Ø6 mm, f = 12 mm, AR Coating: 400 - 1100 nm
Roll over image to zoom in Click on image to zoom
T-LA1470-AB - N-BK7 Plano-Convex Lens, Ø6 mm, f = 12 mm, AR Coating: 400 - 1100 nm

T-LA1470-AB - N-BK7 Plano-Convex Lens, Ø6 mm, f = 12 mm, AR Coating: 400 - 1100 nm

Fosco ConnectSKU: T-LA1470-AB
Price:
$ 62.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-LA1470-AB - N-BK7 Plano-Convex Lens, Ø6 mm, f = 12 mm, AR Coating: 400 - 1100 nm

Product Drawing

  • Material: N-BK7
  • AR-Coated for the 400 - 1100 nm Range
  • Focal Lengths Available from 10 mm to 2500 mm
  • Diameter 6.0 mm
  • Focal Length (mm) 12.0
  • Diopter +83.3
  • Radius of Curvature (mm) 6.2
  • Center Thickness (mm) 2.3
  • Edge Thickness (mm) 1.5
  • Back Focal Length (mm) 10.50
  • Reference Drawing Click to Check
