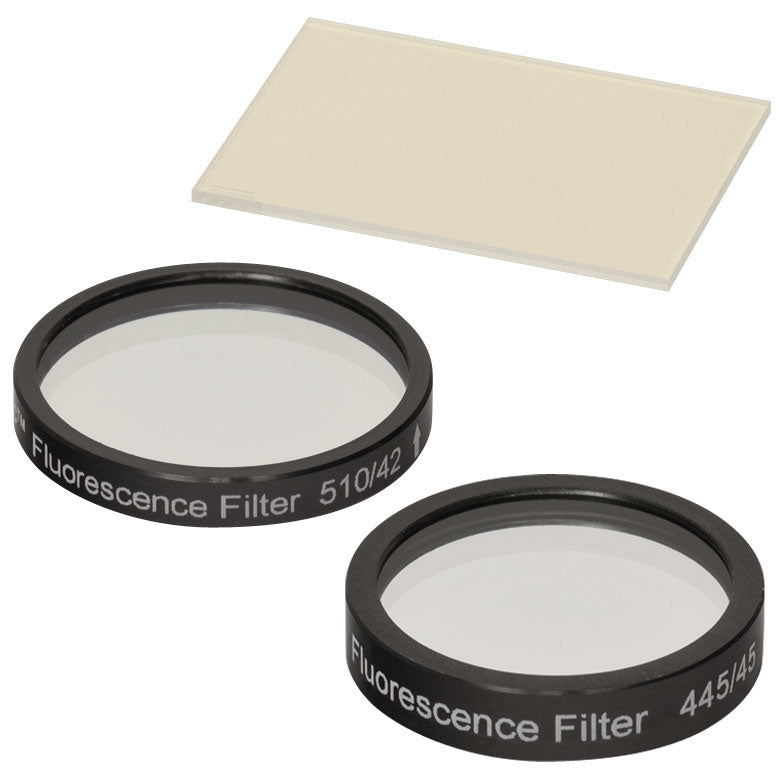

T-MDF-WGFP - WGFP Excitation, Emission, and Dichroic Filters (Set of 3)
Kit comes with

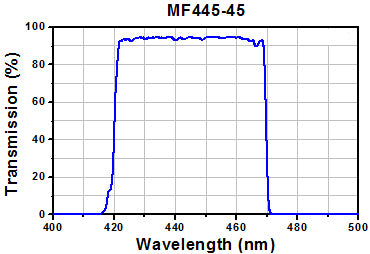

- T-MF445-45 Excitation 445 nm 45 nm

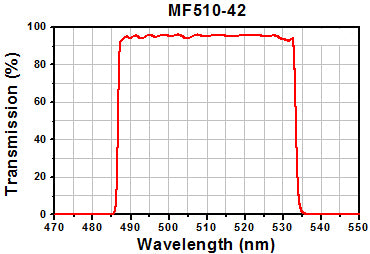

- T-MF510-42 Emission 510 nm 42 nm

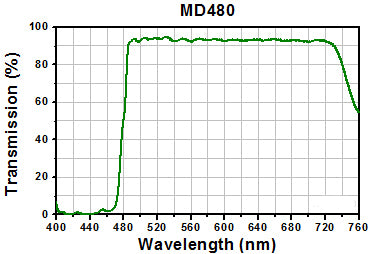

- T-MD480 Filter Type Dichroic Reflection Band Ravg > 90% 415 - 470 nm, Transmission Band Tabs > 90% 490 - 720 nm, AR Coating
| Excitation Filters | Emission Filters | Dichroic Filters | ||||
|---|---|---|---|---|---|---|
| MDF-GFP2, MDF-TOM, MDF-MCHC, & MDF-MCHA Kits |
All Other Excitation Filters |
MDF-GFP2, MDF-TOM, MDF-MCHC, & MDF-MCHA Kits |
All Other Excitation Filters |
Dichroics in MDF-GFP2, MDF-MCHA, MDF-MCHC, & MDF-TOM Kits |
All Other Dichroics | |
| Size | Ø25 +0.0/-0.1 mm | Ø25 ± 0.1 mm | Ø25 +0.0/-0.1 mm | Ø25 ± 0.1 mm | 25.2 mm x 35.6 mm | 25.0 mm x 36.0 mm |
| Clear Aperture | >Ø21 mm | >Ø22 mm | >Ø21 mm | 80% of Area | >(22.5 mm x 32.4 mm) | |
| Angle of Incidence | 0° ± 5° | 45° ± 1.5° | ||||
| Thickness | 5.0 ± 0.1 mm | 3.5 ± 0.1 mm | 1.05 ± 0.05 mm | 1.0 ± 0.1 mm | ||
| Surface Quality | 60-40 Scratch-Dig | |||||
| Substrate | Fused Silica | |||||
| Item # | Design Fluorophore | Excitation Band |
Emission Band |
Dichroic |
|---|---|---|---|---|

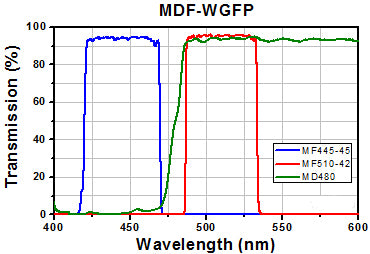

| T-MDF-WGFP | Wild Type GFP (WGFP) | 445 ± 22.5 nm | 510 ± 21 nm | 415 - 470 nm / 490 - 720 nm |
