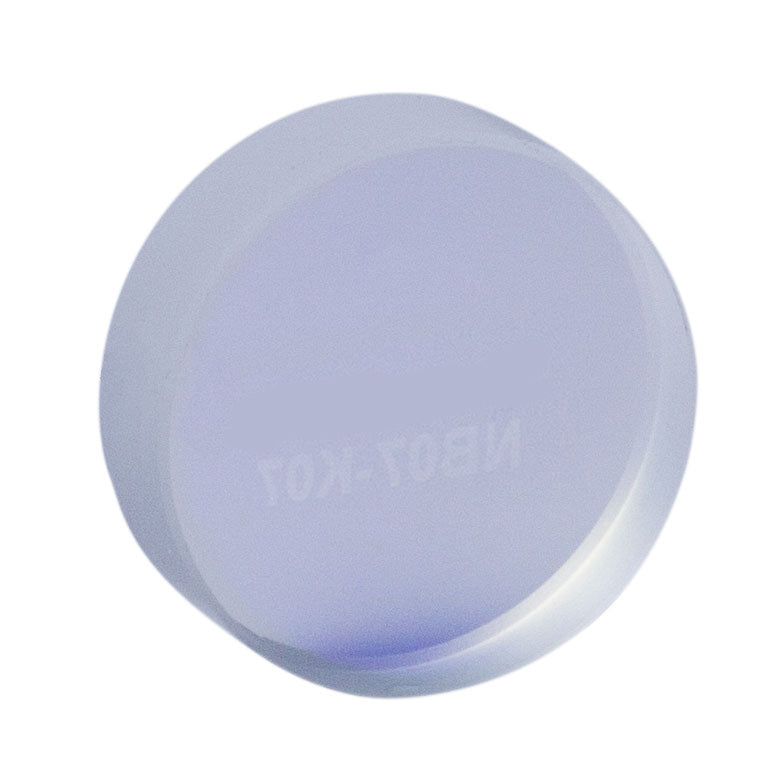

T-NB07-K07 - Ø19 mm Ar-Ion Laser Line Mirror, 333 - 364 nm, 0° to 45° AOI

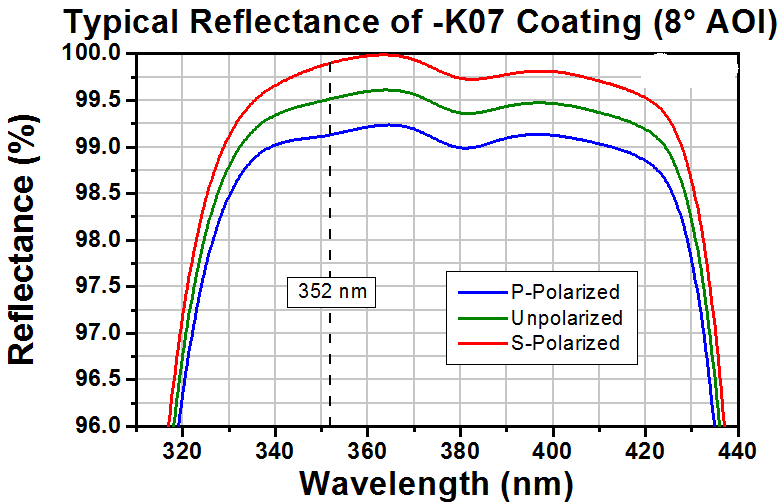

- Specifications at 0°
- Unpolarized: R > 99.5% at 352 nm
- Damage Threshold: 5 J/cm2 (355 nm, 10 ns, 10 Hz, Ø0.294 mm)

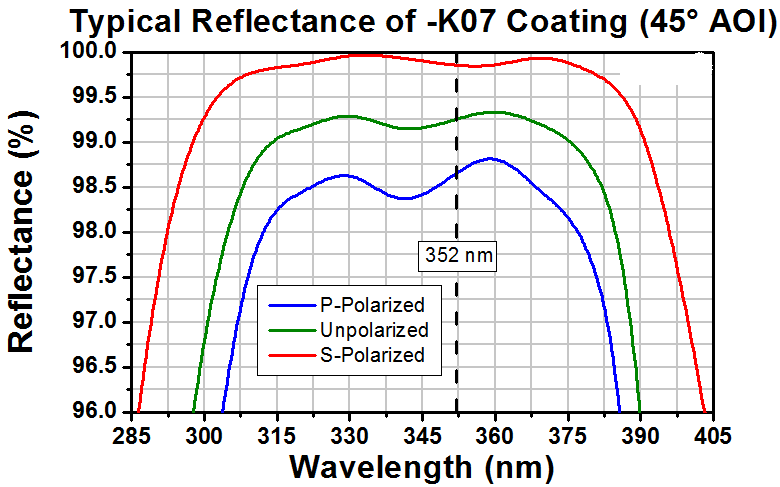

- Specifications at 45°
- S Polarization: R > 99.0% at 352 nm
- P Polarization: R > 98.7% at 352 nm
| Damage Threshold Specifications | |
|---|---|
| Coating Designation (Item # Suffix) |
Damage Threshold |
| -K07 | 5 J/cm2 (355 nm, 10 ns, 10 Hz, Ø0.294 mm) |
| Common Specifications | |
|---|---|
| Substrate Material | Fused Silica |
| Front Surface Flatness | λ/10 @ 633 nm |
| Clear Aperture | >80% of Diameter |
| Back Surface | Fine Ground |
| Parallelism | <3 arcmin |
| Diameter Tolerance | +0.0/-0.1 mm |
| Thickness | 6.0 ± 0.2 mm |
| Surface Quality | 10-5 Scratch-Dig |
