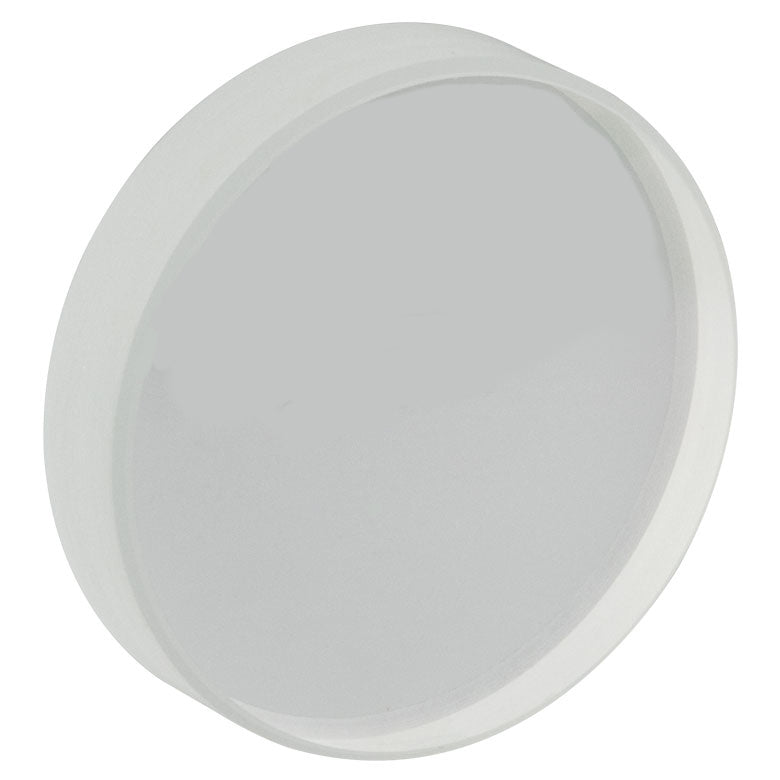

T-NB1-K05 - Ø1" Ar-Ion Laser Line Mirror, 300 - 308 nm, 0° to 45° AOI
T-NB1-K05 - Ø1" Ar-Ion Laser Line Mirror, 300 - 308 nm, 0° to 45° AOI
T-NB1-K05 - Ø1" Ar-Ion Laser Line Mirror, 300 - 308 nm, 0° to 45° AOI
Roll over image to zoom in Click on image to zoom
T-NB1-K05 - Ø1" Ar-Ion Laser Line Mirror, 300 - 308 nm, 0° to 45° AOIT-NB1-K05 - Ø1" Ar-Ion Laser Line Mirror, 300 - 308 nm, 0° to 45° AOIT-NB1-K05 - Ø1" Ar-Ion Laser Line Mirror, 300 - 308 nm, 0° to 45° AOI

T-NB1-K05 - Ø1" Ar-Ion Laser Line Mirror, 300 - 308 nm, 0° to 45° AOI

Fosco ConnectSKU: T-NB1-K05
Price:
$ 258.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-NB1-K05 - Ø1" Ar-Ion Laser Line Mirror, 300 - 308 nm, 0° to 45° AOI

Product Drawing

  • Designed for Use from 0° to 45° AOI

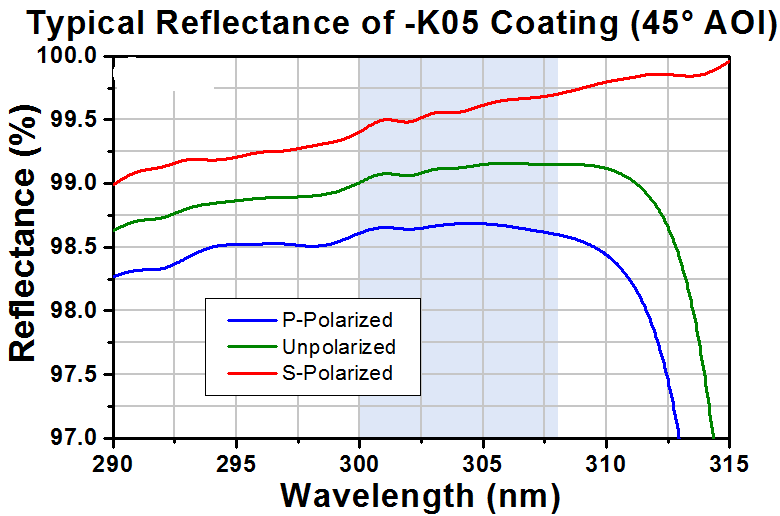

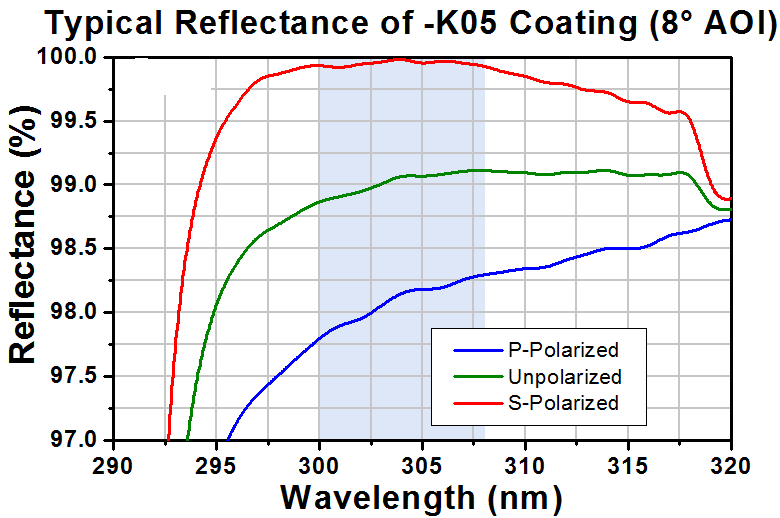

  • S Polarization: Ravg > 99.5% (300 - 308 nm)
  • P Polarization: Ravg > 98.0% (300 - 308 nm)
  • Available Wavelength Ranges
    • 300 - 308 nm
    • 333 - 364 nm
    • 458 - 528 nm
  • Designed for Use from 0° to 45° AOI
  • Ø19 mm and Ø1" Options
Common Specifications
Substrate Material Fused Silica
Front Surface Flatness λ/10 @ 633 nm
Clear Aperture >80% of Diameter
Back Surface Fine Ground
Parallelism <3 arcmin
Diameter Tolerance +0.0/-0.1 mm
Thickness 6.0 ± 0.2 mm
Surface Quality 10-5 Scratch-Dig
