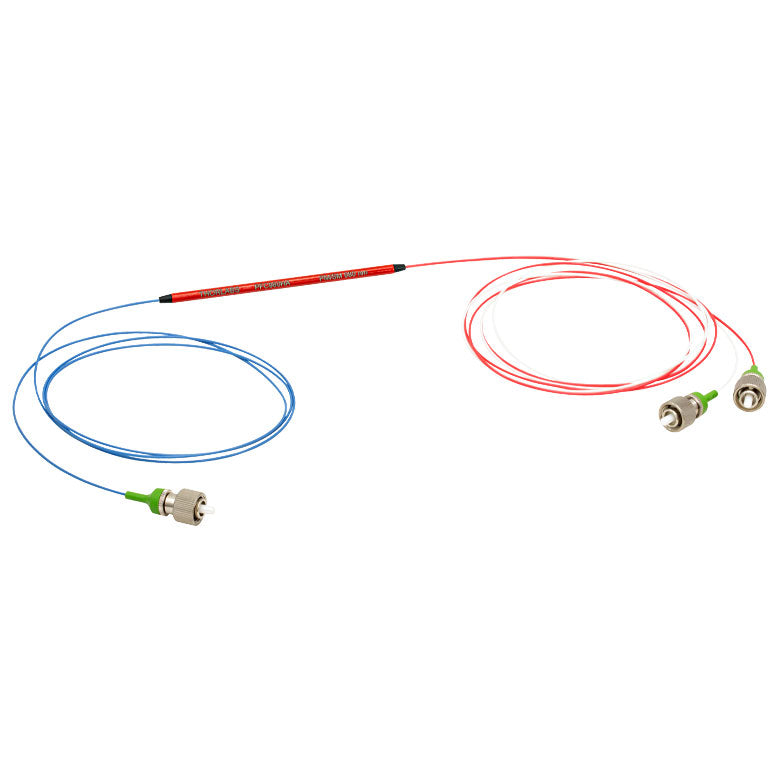

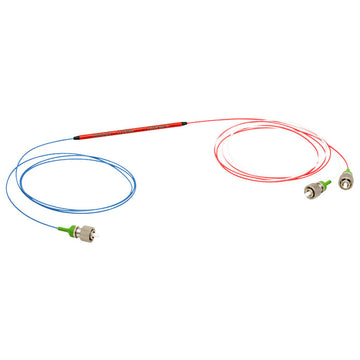

T-PFC980HA - PM to SM Fused Fiber Polarization Combiner, 980 ± 15 nm, FC/APC
Center Wavelength 980 nm
Bandwidth ±15 nm
Directivity ≥60 dB
Fiber: White and Red Ports PANDA, Equivalent to PM 98-U25D, Blue Port Single Mode,
HI1060
Max Power Level 1 W (Connectors or Bare Fiber) 5 W (Spliced)
Termination FC/APC
| Fiber Polarization Combiner Specifications | |
|---|---|
| Center Wavelength | 980 nm |
| Bandwidth | ±15 nm |
| Insertion Loss |
≤0.65 dB (Typ.) |
| Optical Return Loss (ORL) / Directivitya |
≥60 dB |
| Max Power Levelb | 1 W (Connectors or Bare Fiber) 5 W (Spliced) |
| Fiber Typec | White & Red Ports: PANDA Blue Common Port: Single Mode |
| Fiberc | White & Red Ports: Equivalent to PM 98-U25Dd Blue Common Port: HI1060 |
| Port Configuration | 2x1 |
| Connector Key Alignment |
White Port: Slow Axis Aligned Red Port: Fast Axis Aligned |
| Fiber Lead Length and Tolerance | 0.8 m +0.075 m / -0.0 m |
| Connectors | 2.0 mm Narrow Key FC/APC |
| Package Size | Ø0.12" x 2.95" (Ø3.2 mm x 75.0 mm) |
| Jacket | Ø900 µm Hytrel® Loose Tube |
| Pigtail Tensile Load | 10 N |
| Operating Temperature Range | -40 to 85 °C |
| Storage Temperature Range | -40 to 85 °C |
