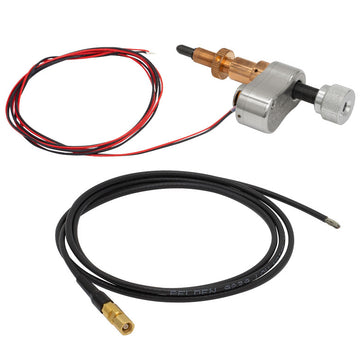

T-PIAK10VF - Vacuum-Compatible Piezo Inertia Actuator, 10 mm Travel, 1/4"-100 Mounting Thread
T-PIAK10VF - Vacuum-Compatible Piezo Inertia Actuator, 10 mm Travel, 1/4"-100 Mounting Thread
- Compact Design: 31.5 mm x 17.0 mm (W x H)
- 20 nm Typical Step Size
- Manual Adjustment via Knob on Adjuster Screw
- Rated Down to 10-6 Torr
- 125 V Maximum Operating Voltage
- T-PIAK10VF: 1/4"-100 Mounting Thread for Compatibility with KS1TV Mirror Mount
- PIA13VF: Ø3/8" Mounting Barrel for Compatibility with Translation Stages
- Ideal for Set-and-Hold Applications that Require High-Resolution Relative Positioning
- Control Cable can be Adjusted up to 110° for Space-Constrained Applications
- Maximum Active Preload 30 N
- Dimensions (L x W x H) 77.7 mm x 31.5 mm x 17.0 mm (3.06" x 1.24" x 0.67")
- Mounting Feature (Auxiliary) 1/4"-100 Thread with Lock Nut (Ø3/8" [Ø9.525 mm] Barrel)
| Vacuum Rating | 10-6 Torr | |
| Operating Temperature | 5 to 130 °C (41 to 266 °F) | |
| Cable Length | 0.75 m (2.48 ft) Flying Lead for Vacuum, 1.0 m (3.3 ft) of Cored Cable for Wiring Outside Chamber |
|
| Connector Type | SMC Female | |
| Cable Exit Adjustability | ±55° for Left- or Right-Hand Exit | |
| Recommended Maximum Active Axial Load Capacity |
2.5 kg (5.51 lbs) | |
| Speed (Continuous Stepping) | 2 mm/minute (Typical) <3.5 mm/minute (Maximum) |
|
| Drive Screw | 1/4"-80 Thread, Hard PVD Coated | |
| Actuator Tip | Tungsten-Carbide-Coated Ball | |
| Lifetime | >1,000,000,000 Steps | |
| Motor Type | Piezoelectric Inertia | |
| Piezo Specifications | ||
| Max Operating Voltage | 125 V | |
| Capacitance | 175 nF | |
| Resonant Frequency | 125 kHz (No Load) | |
| Key Specifications | |
|---|---|
| Item # | PIAK10VF |
| Travel | 10 mm (0.39") |
| Typical Step Size | 20 nm |
| Maximum Step Size | 30 nm |
| Step Size Adjustability | ≤30% |
| Maximum Step Frequency | 2000 Hz |
| Maximum Active Preload | 30 N |
| Recommended Maximum Axial Load Capacity |
2.5 kg (5.51 lbs) |
| Speed (Continuous Stepping) | 2 mm/minute (Typical) <3.5 mm/minute (Maximum) |
| Drive Screw | 1/4"-80 Thread, Hard PVD Coated |
| Motor Type | Piezoelectric Inertia |
| Primary Mounting Feature | 1/4"-100 Thread |
| Vacuum Rating | 10-6 Torr |
