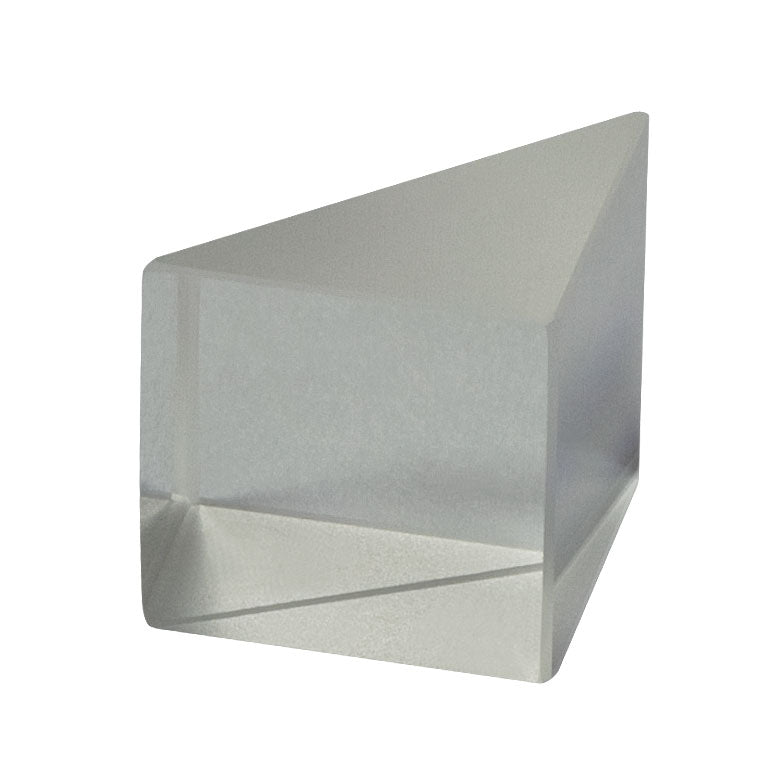

T-PS910H-B - N-BK7 Right-Angle Prism, L = 10 mm, AR Coating on Hypotenuse: 650-1050 nm
T-PS910H-B - N-BK7 Right-Angle Prism, L = 10 mm, AR Coating on Hypotenuse: 650-1050 nm
Roll over image to zoom in Click on image to zoom
T-PS910H-B - N-BK7 Right-Angle Prism, L = 10 mm, AR Coating on Hypotenuse: 650-1050 nmT-PS910H-B - N-BK7 Right-Angle Prism, L = 10 mm, AR Coating on Hypotenuse: 650-1050 nm

T-PS910H-B - N-BK7 Right-Angle Prism, L = 10 mm, AR Coating on Hypotenuse: 650-1050 nm

Fosco ConnectSKU: T-PS910H-B
Price:
$ 128.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-PS910H-B - N-BK7 Right-Angle Prism, L = 10 mm, AR Coating on Hypotenuse: 650-1050 nm

Product Drawing

  • Sizes Ranging from 3 mm to 60 mm
  • Fabricated from N-BK7, UV Fused Silica, CaF2, or ZnSe
  • N-BK7 Prisms Available with an AR Coating on the Hypotenuse or Both Legs
  • Material N-BK7
  • L 10.0 mm
  • X 14.1 mm
  • Angle Tolerance ±3 arcmin
  • Dimensional Tolerance ±0.1 mm
  • AR Coating 650 - 1050 nm, Hypotenuse
  • AR Coating Performance Ravg ≤ 0.5% at AOI = 0° Over Specified Wavelength Range
