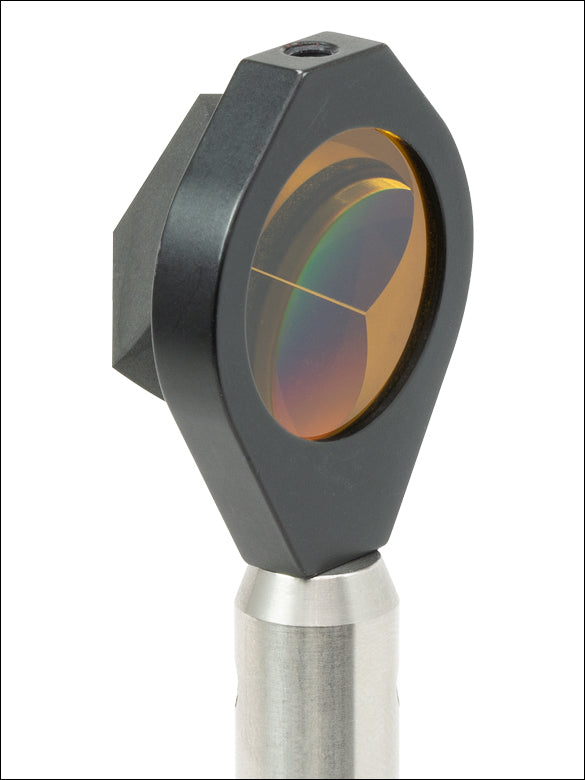

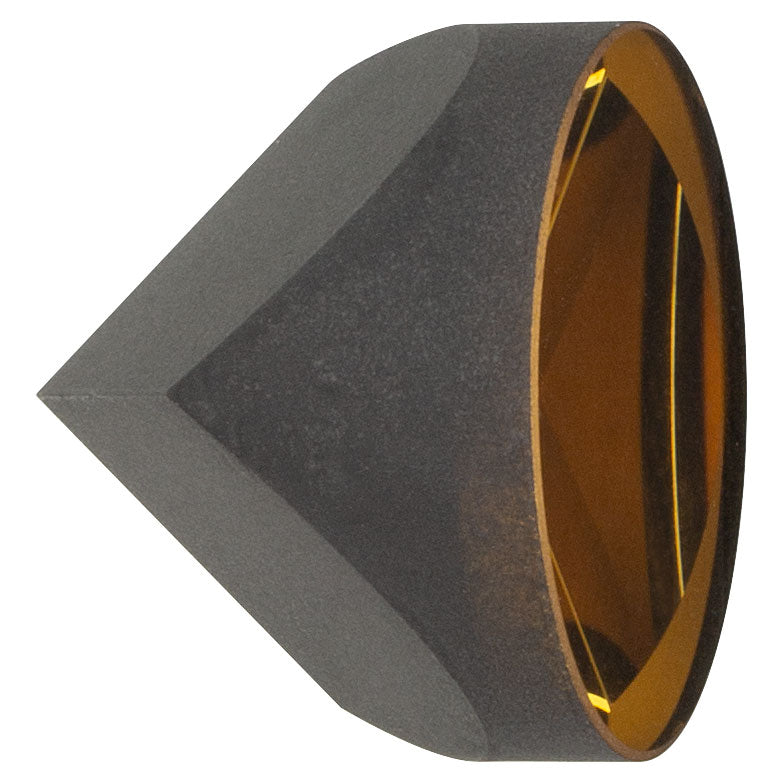

T-PS975-M01B - Specular Retroreflector, Ø25.4 mm, L = 21.9 mm, Gold Coating: 800 - 2000 nm
- Fabricated from N-BK7
- Reflects an Inverted and Reversed Image 180°
- Specular Design for Polarization Azimuthal Angle Rotation <10°
- Three Prism Sizes Available:
- Ø12.7 mm
- Ø25.4 mm
- Ø50.0 mm
- Gold-Coated Reflective Faces with Black Overpaint
- 800 - 2000 nm Wavelength Range
- Clear Aperture >Ø17.8 mm

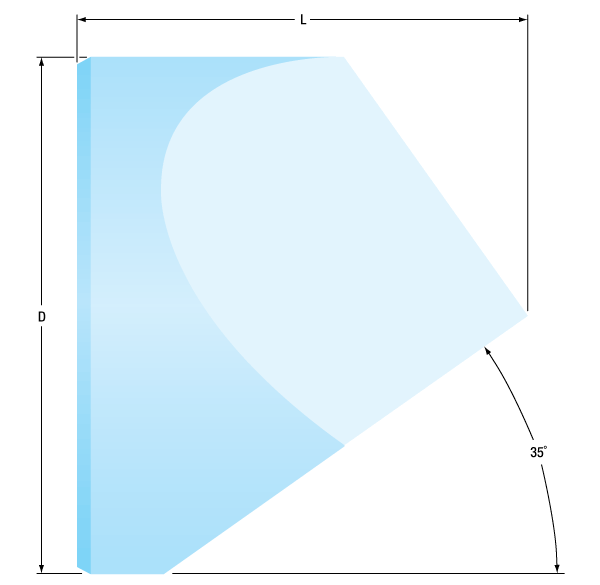

- Length (L) 21.9 mm
- Diameter (D) Ø25.4 mm
- Max Beam Diameter Ø0.32" (8.125 mm)
| Common Specifications | |||
|---|---|---|---|
| Prism Material | N-BK7a Grade A Fine Anneal | ||

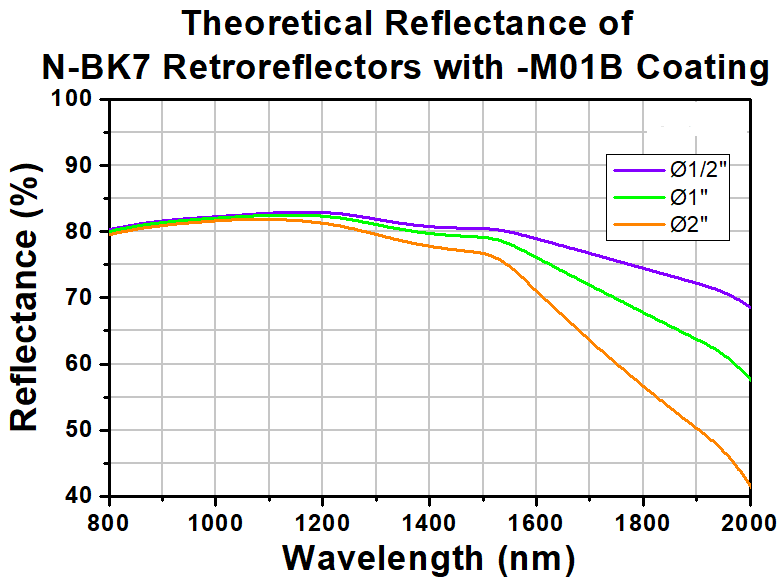

| Wavelength Rangeb | 800 - 2000 nm | ||
| Reflective Coating | Gold with Black Overpaint | ||
| Diameter Tolerance | +0.0 / -0.1 mm | ||
| Surface Quality | 40-20 Scratch-Dig | ||
| Front Surface Flatness | <λ/10 @ 633 nm | ||
| Beam Deviationc | <3 arcsec | ||
| Damage Threshold | 1.25 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.01 mm) |
||
| N-BK7 Damage Threshold Specifications | |
|---|---|
| Coating Designation (Item # Suffix) |
Damage Threshold |
| -M01B | 1.25 J/cm2 (1064 nm, 10 ns, 10 Hz, Ø1.01 mm) |
