T-TF1 - Ø30 mm IR Blocking Filter, Transmission: 375 - 650 nm, Rejection: 700 - 1400 nm
T-TF1 - Ø30 mm IR Blocking Filter, Transmission: 375 - 650 nm, Rejection: 700 - 1400 nm
T-TF1 - Ø30 mm IR Blocking Filter, Transmission: 375 - 650 nm, Rejection: 700 - 1400 nm
Roll over image to zoom in Click on image to zoom
T-TF1 - Ø30 mm IR Blocking Filter, Transmission: 375 - 650 nm, Rejection: 700 - 1400 nmT-TF1 - Ø30 mm IR Blocking Filter, Transmission: 375 - 650 nm, Rejection: 700 - 1400 nmT-TF1 - Ø30 mm IR Blocking Filter, Transmission: 375 - 650 nm, Rejection: 700 - 1400 nm

T-TF1 - Ø30 mm IR Blocking Filter, Transmission: 375 - 650 nm, Rejection: 700 - 1400 nm

Fosco ConnectSKU: T-TF1
Price:
$ 950.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-TF1 - Ø30 mm IR Blocking Filter, Transmission: 375 - 650 nm, Rejection: 700 - 1400 nm

Product Drawing

  • 30.0 mm Outer Diameter
  • Excellent Suppression in Rejection Region (ODavg > 6)

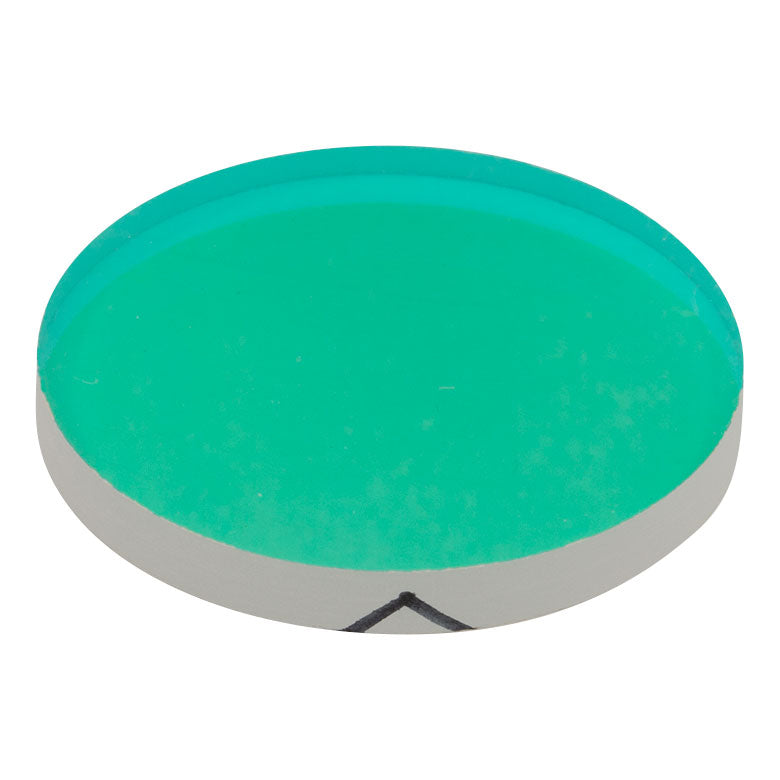

  • Recommended Transmission Direction Indicated by Caret on Edge
Item # TF1
Transmission Region Tavg > 90% from 375 to 650 nm
Rejection Region ODavg > 6 from 700 to 1400 nm

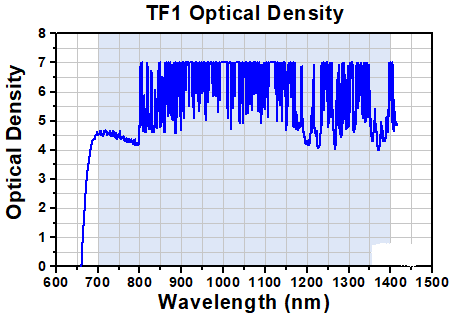

Graphs (Click for Details) info
Coating Immersed Dielectric
Surface Quality 80-50 Scratch-Dig
Substrate Material Borofloat®
Diameter 30.0 mm (1.18")
Diameter Tolerance ±0.1 mm
Clear Aperture Ø27 mm
Thickness 3.3 mm (0.13")
