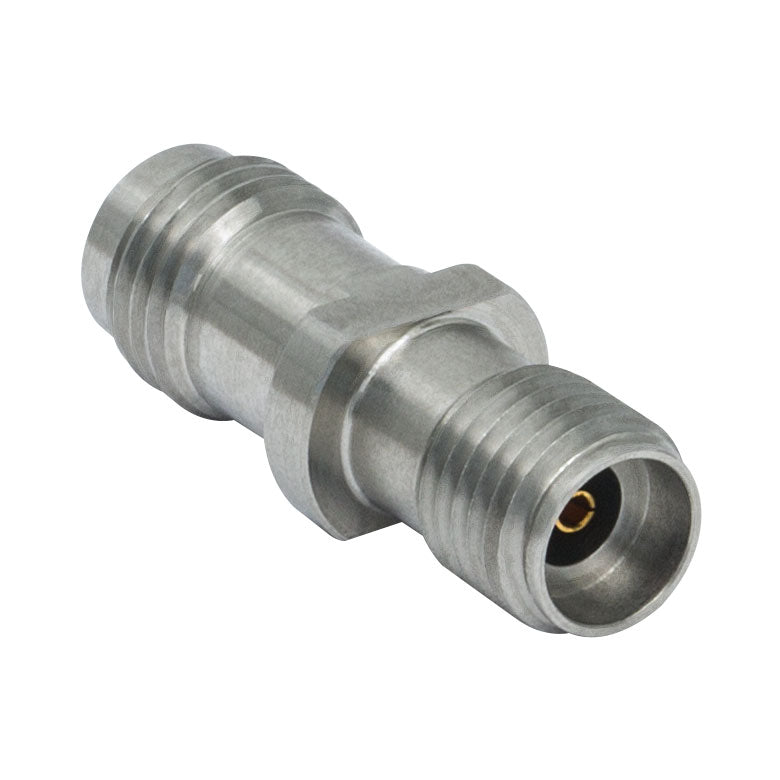

T-TFKF - Microwave Cable Adapter, 2.4 mm Female to 2.92 mm Female
- Adapters for 2.4 mm or 2.92 mm Connectors
- DC - 40 GHz or DC - 50 GHz
- Adapter Type 2.4 mm to 2.92 mm
- Adapter Style (Click for Image) 2.4 mm F. to 2.92 mm F.
These microwave cable adapters are designed to change the gender or connector type of microwave cables and connectors. They include in-series adapters (F-F, F-M, M-F) for 2.92 mm and 2.4 mm, as well as between-series adapters for all gender combinations of 2.92 mm and 2.4 mm cables.
| Common Specifications | |
|---|---|
| Impedance | 50 Ω |
| Durability | 500 Connection Cycles |
| Material | Stainless Steel (303) |
| Conductor | Gold-Plated Brass (M) or Gold-Plated BeCu (F) |
| Coupling Torque | 8 in-lbs (0.9 N-m) |
| Coupling Nut Hex Size | 5/16" |
