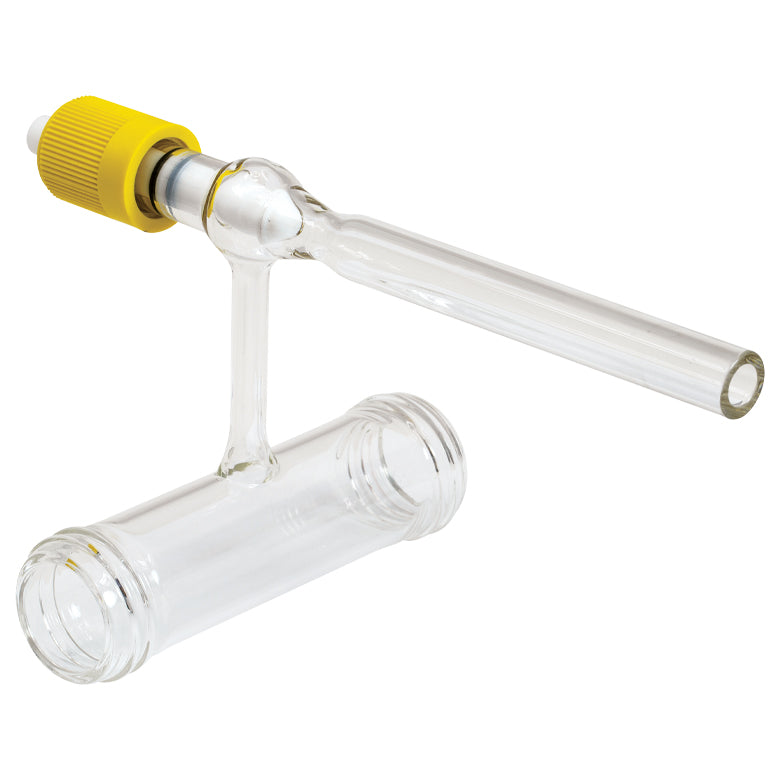

T-TGC100V - Empty Glass Cell with Threaded Ends, 100 mm Long, One Fill Tube with J. Young® Valve
T-TGC100V - Empty Glass Cell with Threaded Ends, 100 mm Long, One Fill Tube with J. Young® Valve
T-TGC100V - Empty Glass Cell with Threaded Ends, 100 mm Long, One Fill Tube with J. Young® Valve
Roll over image to zoom in Click on image to zoom
T-TGC100V - Empty Glass Cell with Threaded Ends, 100 mm Long, One Fill Tube with J. Young® ValveT-TGC100V - Empty Glass Cell with Threaded Ends, 100 mm Long, One Fill Tube with J. Young® ValveT-TGC100V - Empty Glass Cell with Threaded Ends, 100 mm Long, One Fill Tube with J. Young® Valve

T-TGC100V - Empty Glass Cell with Threaded Ends, 100 mm Long, One Fill Tube with J. Young® Valve

Fosco ConnectSKU: T-TGC100V
Price:
$ 625.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-TGC100V - Empty Glass Cell with Threaded Ends, 100 mm Long, One Fill Tube with J. Young® Valve

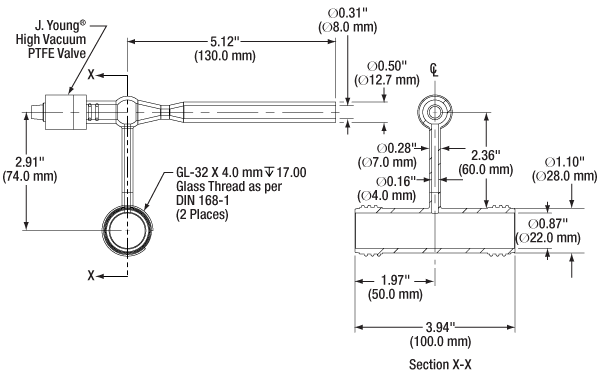

Product Drawing

  • Single Fill Tube Available with or without J. Young® Valve
  • 100 mm Long Empty Borosilicate Cells
  • Ø28 mm Body with External GL-32 Threading on Each End
  • Ideal for Sample Isolation

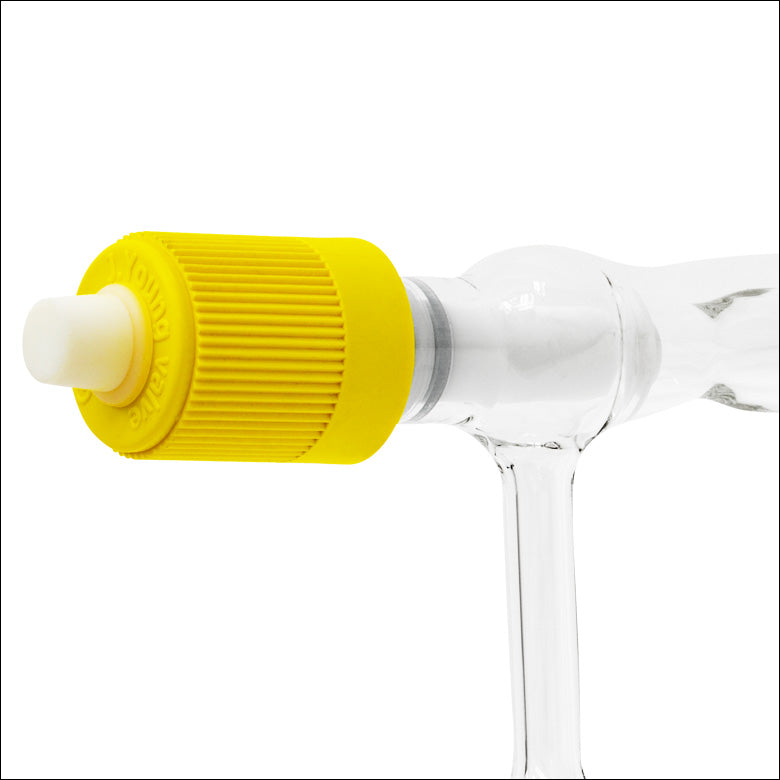

Glass cells with a single fill tube are useful when introducing a sample into the cell and sealing it off for measurements. A gas sample can be sealed off in the line or by using a cell with a J. Young® Valve integrated into its fill tube. J. Young® Valves incorporate a retractable, greaseless, PTFE stopcock for maintaining a high vacuum. The yellow knob can be tightened to create a seal before the T-junction fill tube or unscrewed completely for cleaning.

Specifications
Item # T-TGC100V
Fill Tubes One
Valve Type J. Young®
Cell Length 100.0 ± 3 mm
Cell Diameter Ø28.0 ± 0.5 mm
Pressure @ 25 °C <10-7 Torr to 5 psi
Fill Tube Outer Diameter 0.50" (12.7 mm)
Cell Substrate Uncoated Borosilicate
