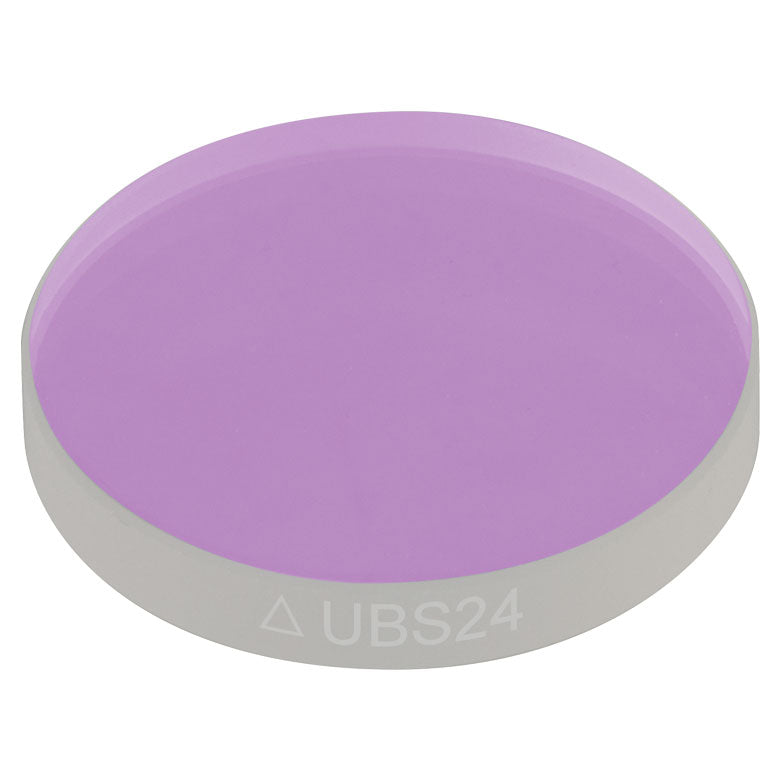

T-UBS24 - Ø1" Low-GDD Beamsplitter for Second Harmonic of Ultrafast Yb Lasers
Reflected Harmonic Second Harmonic of Ytterbium Lasers
Optic Shape Round
Diameter 1" (25.4 mm)
Angle of Incidence (AOI) 56°
Clear Aperture >80% of Diameter
Diameter Tolerance +0.0/-0.2 mm
Thickness 4.0 mm
Thickness Tolerance ±0.4 mm
Surface Quality 20-10 Scratch-Dig
Surface Flatness <λ/10 @ 633 nm
Parallelism ≤5 arcmin
Substrate IR Fused Silica
Mass 4g
| Key Specs | |||
|---|---|---|---|
| Item # | Reflected Harmonic | Optic Size | Thickness |
| T-UBS24 | Second Harmonic of Ytterbium Lasers |
Ø1" | 4.0 mm |
