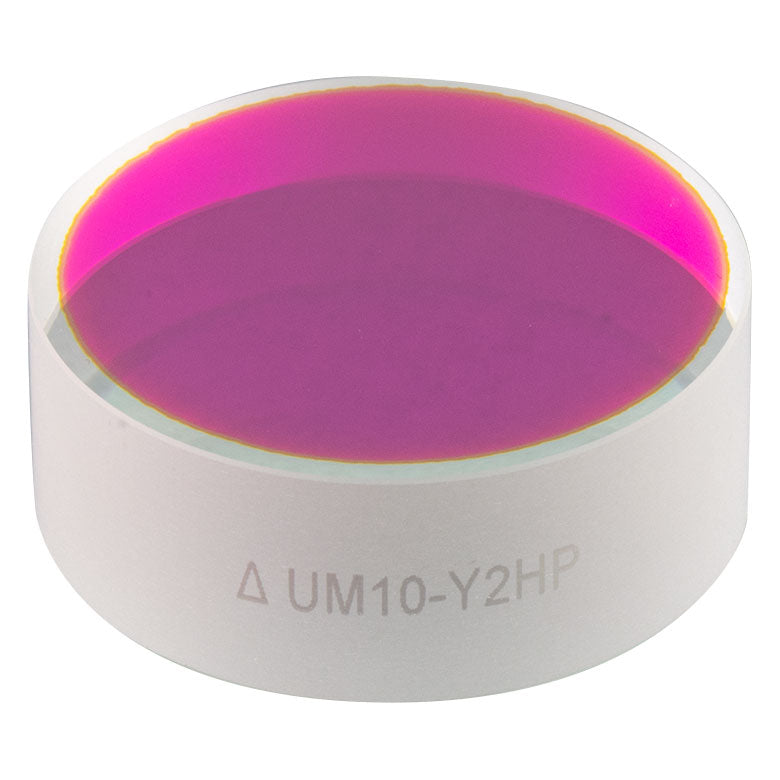

T-UM10-Y2HP - Ø1" Picosecond Yb Laser Line Mirror, Second Harmonic, 500 - 550 nm
T-UM10-Y2HP - Ø1" Picosecond Yb Laser Line Mirror, Second Harmonic, 500 - 550 nm
Roll over image to zoom in Click on image to zoom
T-UM10-Y2HP - Ø1" Picosecond Yb Laser Line Mirror, Second Harmonic, 500 - 550 nmT-UM10-Y2HP - Ø1" Picosecond Yb Laser Line Mirror, Second Harmonic, 500 - 550 nm

T-UM10-Y2HP - Ø1" Picosecond Yb Laser Line Mirror, Second Harmonic, 500 - 550 nm

Fosco ConnectSKU: T-UM10-Y2HP
Price:
$ 225.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-UM10-Y2HP - Ø1" Picosecond Yb Laser Line Mirror, Second Harmonic, 500 - 550 nm

  • Four Dielectric Coatings for Yb Lasers Available:
    • Fundamental: 1010 - 1080 nm
    • 2nd Harmonic: 500 - 550 nm
    • 3rd Harmonic: 335 - 375 nm
    • 4th Harmonic: 250 - 272 nm
  • High Damage Threshold (See the Damage Thresholds Tab)
  • Designed For Use at 45° Angle of Incidence
  • High Reflectance for Both S and P Polarization
  • Ideal for Micromachining and Laser Material Processing Applications
Mirror Specifications
Diameter Ø1"
Diameter Tolerance +0.00 / -0.10 mm
Thickness 9.5 mm
Thickness Tolerance ±0.20 mm
Clear Aperture >80% Diameter
Angle of Incidence (AOI) 45°
Substrate Fused Silica
Front Surface Flatnessa <λ/10 at 632.8 nm
Front Surface Quality 15-5 Scratch-Dig
Parallelism ≤5 arcmin
Back Surface Polished

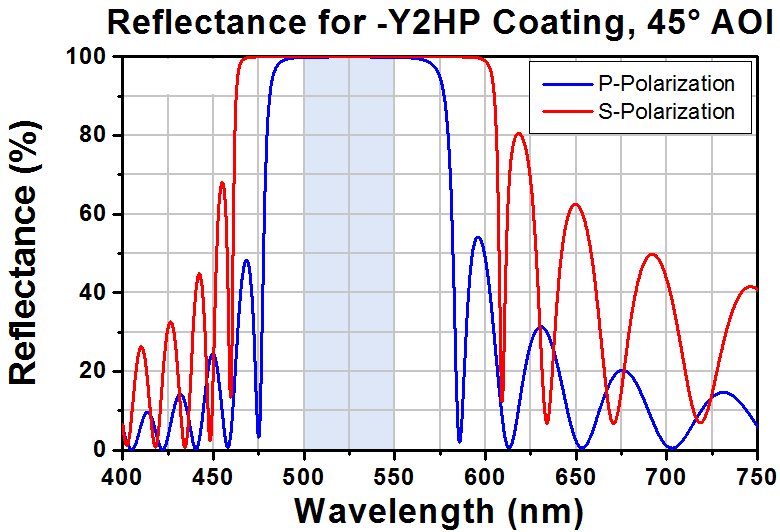

Coating Specifications
Item # Wavelength Range Reflectance Damage Threshold
T-UM10-Y2HP 500 - 550 nm
2nd Harmonic		 Rabs > 99.5% (S- and P-Pol.) 0.292 J/cm2 (515 nm, 0.501 ps FWHM, P-Pol, 10 000 Pulses)
