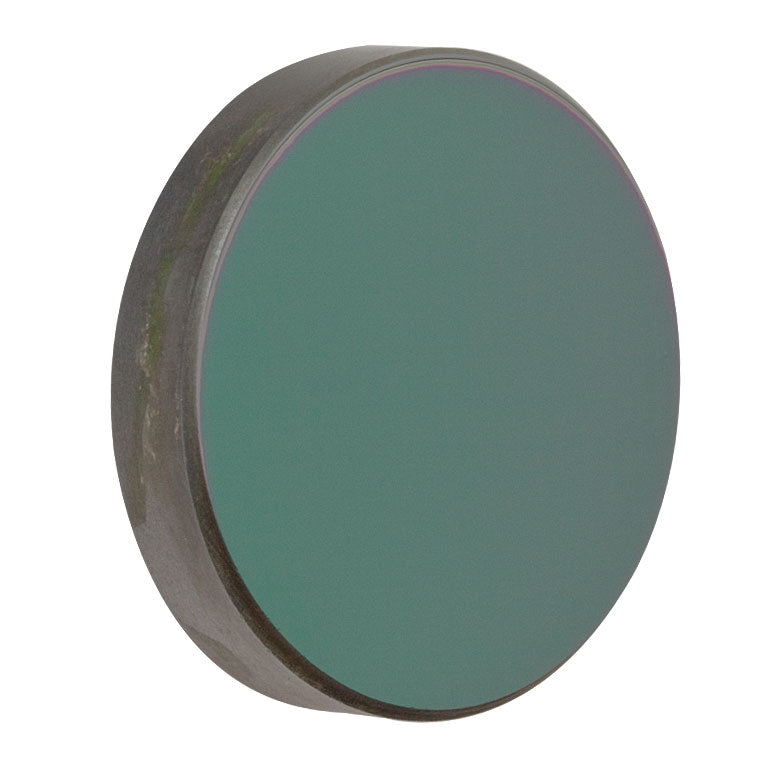

T-WG81050-E - Ø1" Silicon Broadband Precision Window, AR Coated: 3 - 5 µm
Roll over image to zoom in Click on image to zoom
T-WG81050-E - Ø1" Silicon Broadband Precision Window, AR Coated: 3 - 5 µm

T-WG81050-E - Ø1" Silicon Broadband Precision Window, AR Coated: 3 - 5 µm

Fosco ConnectSKU: T-WG81050-E
Price:
$ 305.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

T-WG81050-E - Ø1" Silicon Broadband Precision Window, AR Coated: 3 - 5 µm

Product Drawing



Damage Threshold Specifications
Coating Designation
(Item # Suffix)		 Damage Threshold
-E 0.25 J/cm2 (3.3 μm, 6 ns, 30 kHz, Ø0.0483 mm)
Item # T-WG81050-E
Diameter  1" (25.4 mm)
Diameter Tolerance +0.0 / -0.2 mm
Thickness 5.0 mm
Thickness Tolerance ±0.3 mm
Clear Aperture >90% Diameter
Parallelism <3 arcmin
Surface Flatness λ/2 over Clear Aperture
Surface Quality 40-20 Scratch-Dig
AR Coating Range 3.0 - 5.0 µm (-E Coating)
Reflectance over AR Coating Range Ravg < 2%
Reflectance Data
Raw Data
Transmission Data
Raw Data
Damage Threshold 0.25 J/cm2 (3.3 μm, 6 ns, 30 kHz, Ø0.0483 mm)
