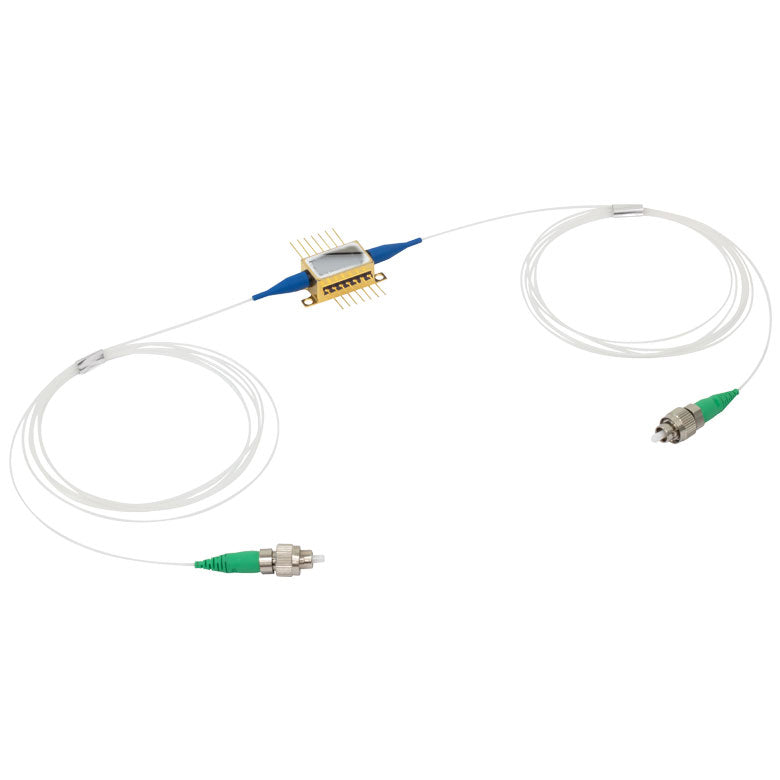

TH-BOA1004PXS - 1550 nm Polarization-Dependent Optical Shutter/Switch, ≤18 dBm (Typ.) Output Power, Butterfly Pkg., PM, FC/APC

TH-BOA1004PXS - 1550 nm Polarization-Dependent Optical Shutter/Switch, ≤18 dBm (Typ.) Output Power, Butterfly Pkg., PM, FC/APC

Product Drawing

• High Extinction Ratio of 70 dB (Typ.)
• 1.5 m PM Fiber Pigtails with FC/APC Connectors with Key Aligned to Slow Axis
• Typical Applications: Cavity Ring-Down Sensors and LIDAR Systems

Operating Wavelength 1500 - 1600 nm

ASE Center Wavelength -

Optical Isolation (P_IN / P_OUT) @ 0 mA^b  ≥40 dB

Extinction Ratio @ P_IN = -20 dBm^b 70 dB

Switching Speed 1 ns

Max Output Power for CW Input Signal 18 dBm

Max Output Power for Modulated Input Signal 10 dBm

Small Signal Gain @ P_IN = -20 dBm 25 dB^e
