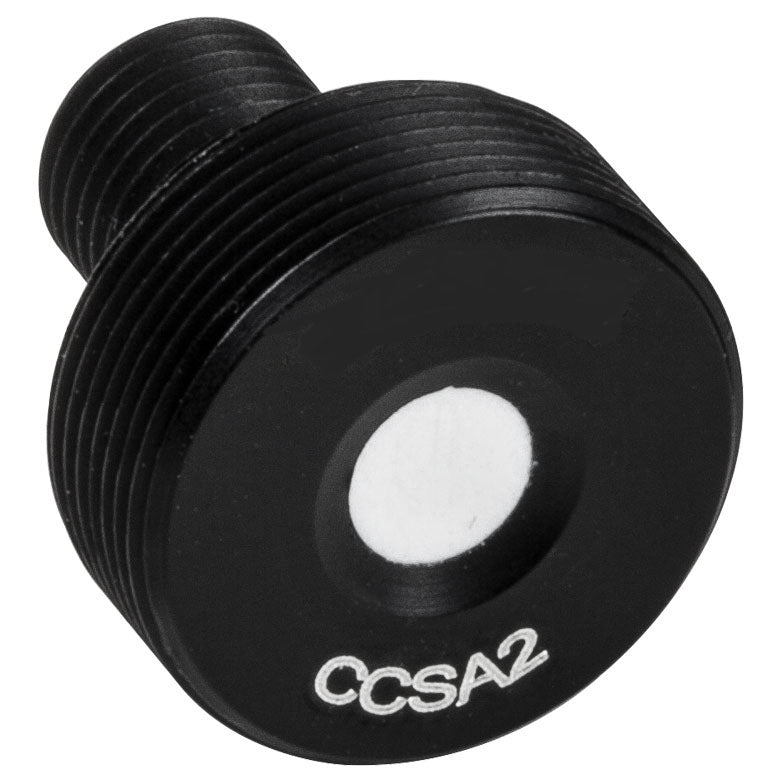

TH-CCSA2 - Cosine Corrector for SMA-Connectorized Fiber, External SM05 Threads

TH-CCSA2 - Cosine Corrector for SMA-Connectorized Fiber, External SM05 Threads

Diffuser Thickness 0.5 mm

Transmission @ 660 nm^a 0.2%

Clear Aperture Ø4 mm

Housing at Input Aperture Externally SM05 (0.535"-40) Threaded

Housing Material Anodized Aluminum

Output Port Accepts SMA Connectors

Suggested Mounting Adapters Adapter with External SM1 Threads and Internal SM05 Threads, 0.40" Long AND Ø1" OD Adapter for Ø12 mm Optic, Internally SM05 Threaded, 0.38" Thick
