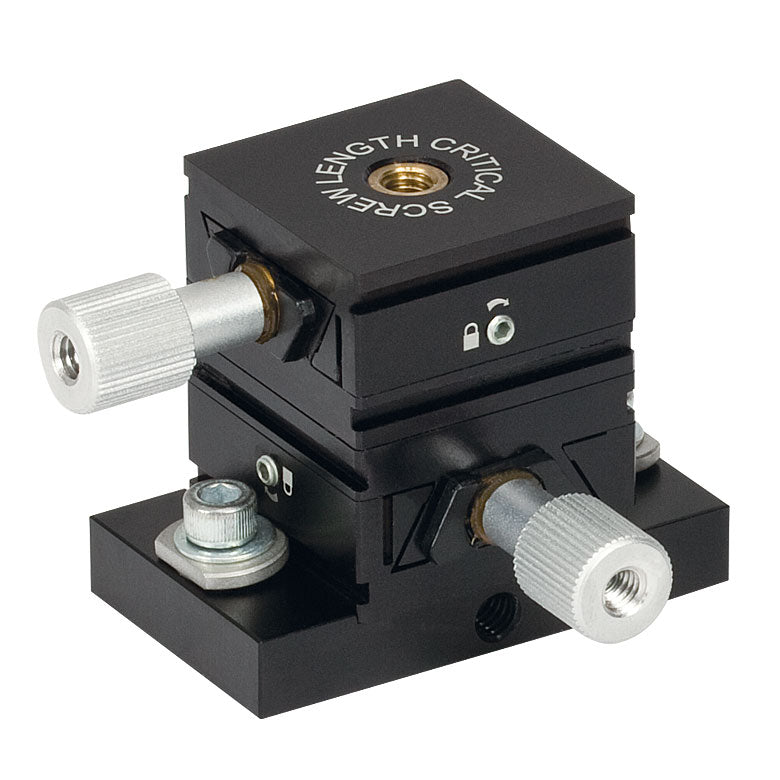

TH-DT12XY-M - 12.7 mm XY Dovetail Translation Stage with Baseplate, M4 Taps

TH-DT12XY-M - 12.7 mm XY Dovetail Translation Stage with Baseplate, M4 Taps

Product Specification Sheet

The TH-DT12XY(-M) and TH-DT12XZ(-M) are compact, two-axis translation stages that incorporate a dovetail and lead screw translation mechanism for smooth linear positioning along the entire range of travel for each axis. The TH-DT12XY(-M) consists of two TH-DT12(-M) stages, while the TH-DT12XZ(-M) consists of two TH-DT12(-M) stages and a DT12A Angle Bracket. Each stage also includes a base plate to mount it directly to an optical table. The stages are permanently attached and cannot be separated.
