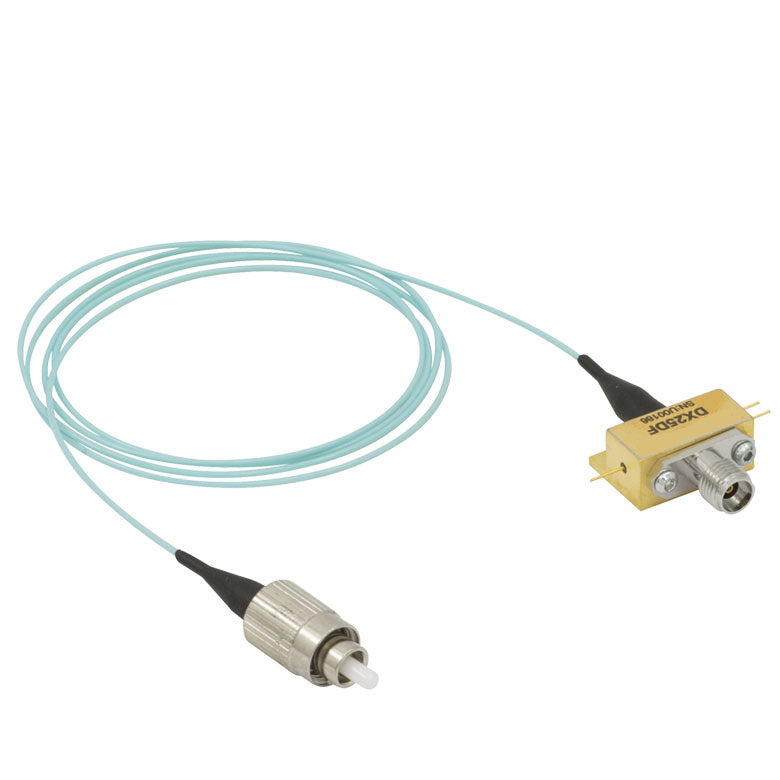

TH-DX25DF - Multimode Ultrafast Detector Module, 700 - 870 nm, DC - 25 GHz, FC/PC

TH-DX25DF - Multimode Ultrafast Detector Module, 700 - 870 nm, DC - 25 GHz, FC/PC

Fiber Pigtail OM4 (MM)

Bandwidth DC - 12 GHz(at 780 nm)

Wavelength Range 700 - 870 nm

Impulse Response 19 ps(FWHM at 780 nm)

Responsivity 0.45 A/W

Conversion Gain 11.0 V/W

Optical Return Loss (Max) -18 dB

Noise-Equivalent Power (NEP) 51 pW/√Hz

Photodiode Bias Voltage 4V

Product Drawing
