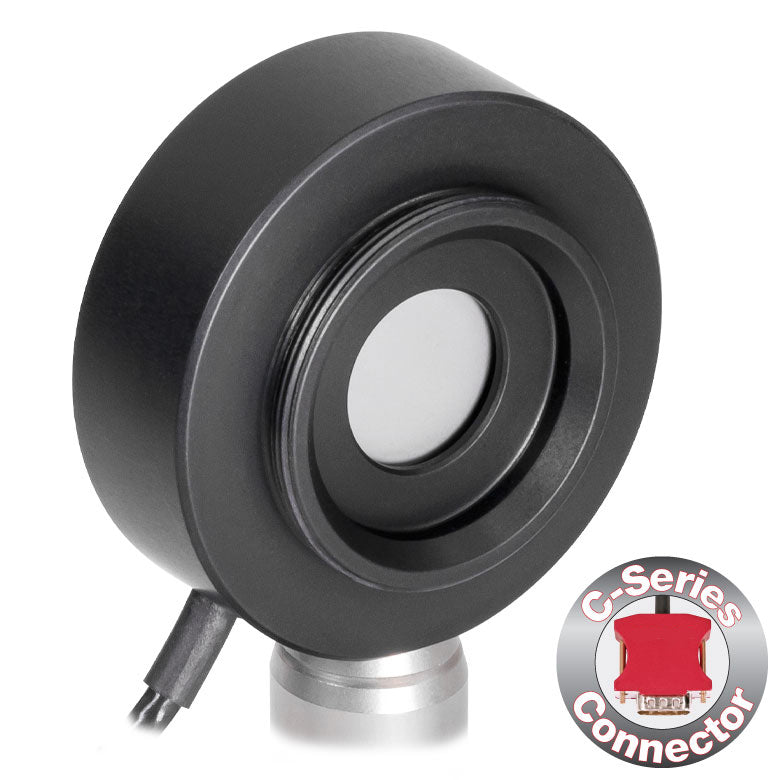

TH-ES408C - Pyroelectric Energy Sensor, Metal Coating, 0.185 - 2.5 µm, 1 J, Ø8 mm, 10 kHz
TH-ES408C - Pyroelectric Energy Sensor, Metal Coating, 0.185 - 2.5 µm, 1 J, Ø8 mm, 10 kHz
| Sensor Dimensionsa | Ø38 mm x 15 mm |
| Active Detector Area | 50.3 mm2 |
| Input Aperture Size | Ø8 mm (0.31") |
| Distance to Detector | 2 mm (0.08") |
| Cable Length | 1.5 m (60") |
| Connector | BNC Male / DE-9 Male, Adapter Included |
| Weight | 0.09 kg |
| Mounting and Accessories | |
| Post | 8-32 and M4 Combi Mounting Thread |
| Cage System Mounting | N/A |
| Aperture Thread | External SM1 (1.035"-40) Thread Thread Depth: 3.0 mm (0.12") |
| Coating | Metal | |
| Detector Type | Fast Pyroelectric Energy Sensor |
| Wavelength Range | 185 nm - 2.5 µm |
| Optical Energy Range | 100 µJ - 1 J |
| Max Repetition Rate (@ 1 MΩ Load) |
10 kHz |
| Max Power Density (Pulse Width) |
5 MW/cm2 (10 ns Pulse) |
| Max Pulse Energy Density (Pulse Width) |
50 mJ/cm2 (10 ns Pulse) |
| Max Average Power | 0.5 W |
| Resolution | 1 µJ |
| Linearity | ±1% |
| Measurement Uncertainty | ±5% @ 185 nm - 2.5 µm |
| Thermal Time Constant | 0.07 ms |
| Resolution | 1 µJ |
| Linearity | ±1% |
| Measurement Uncertainty | ±5% @ 0.185 - 2.5 µm |
| Housing Dimensionsc | Ø38 mm x 15 mm |
| Active Detector Area | 50.3 mm2 |
| Cable Length | 1.5 m (60") |
| Post Mounting | 8-32 and M4 Combi Mounting Thread |
| Aperture Thread | External SM1 (1.035"-40) Thread Thread Depth: 3.0 mm (0.12") |
| Input Aperture Size | Ø8 mm |
| Wavelength Range | 0.185 - 2.5 µm |
| Energy Range | 100 µJ - 1 J |
| Max Repetition Rateb | 10 kHz |
| Max Power Density (Pulse Width) |
5 MW/cm2 (10 ns Pulse) |
| Max Pulse Energy Density (Pulse Width) |
50 mJ/cm2 (10 ns Pulse) |
