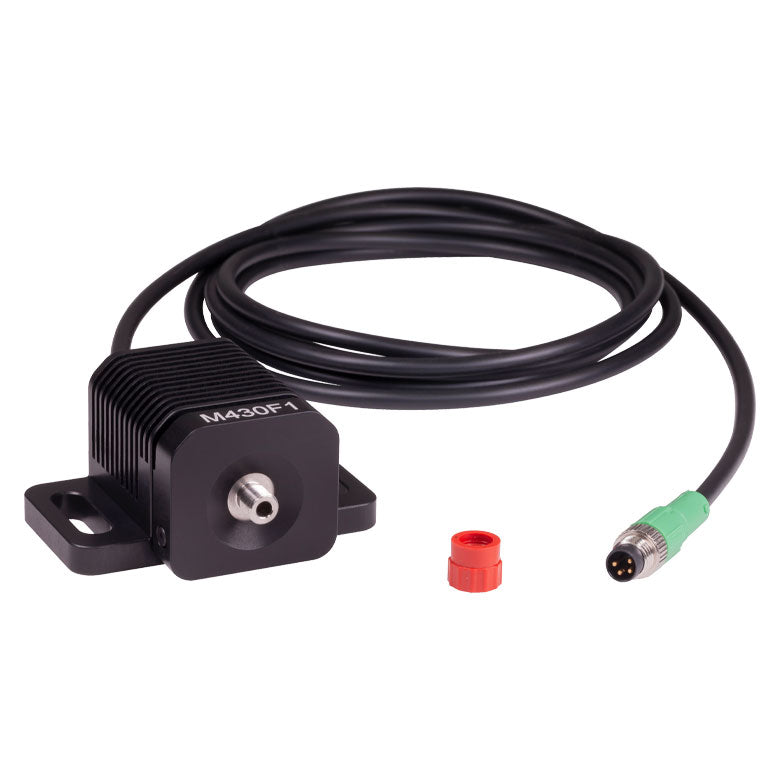

TH-M430F1 - 430 nm, 5.3 mW (Min) Fiber-Coupled LED, 500 mA, SMA
TH-M430F1 - 430 nm, 5.3 mW (Min) Fiber-Coupled LED, 500 mA, SMA
Roll over image to zoom in Click on image to zoom
TH-M430F1 - 430 nm, 5.3 mW (Min) Fiber-Coupled LED, 500 mA, SMATH-M430F1 - 430 nm, 5.3 mW (Min) Fiber-Coupled LED, 500 mA, SMA

TH-M430F1 - 430 nm, 5.3 mW (Min) Fiber-Coupled LED, 500 mA, SMA

Fosco ConnectSKU: THM430F1
Price:
$ 412.00
Silicon Valley Based
Expert Support Since 2001
Fast CA or NY Shipping

TH-M430F1 - 430 nm, 5.3 mW (Min) Fiber-Coupled LED, 500 mA, SMA

Product Drawing

Wavelength 430nm

Typical Opsin ChR2

Output Power 7.5mW

Color UV

Typical Ø200 µm Core Fiber Output Power 2.9 mW

Minimum Ø400 µm Core Fiber Output Power 5.3 mW

Typical Ø400 µm Core Fiber Output Power 7.5 mW

Maximum Current (CW) 500 mA

Forward Voltage 3.66 V

Bandwidth (FWHM) 17 nm

Typical Lifetime >10 000 h
